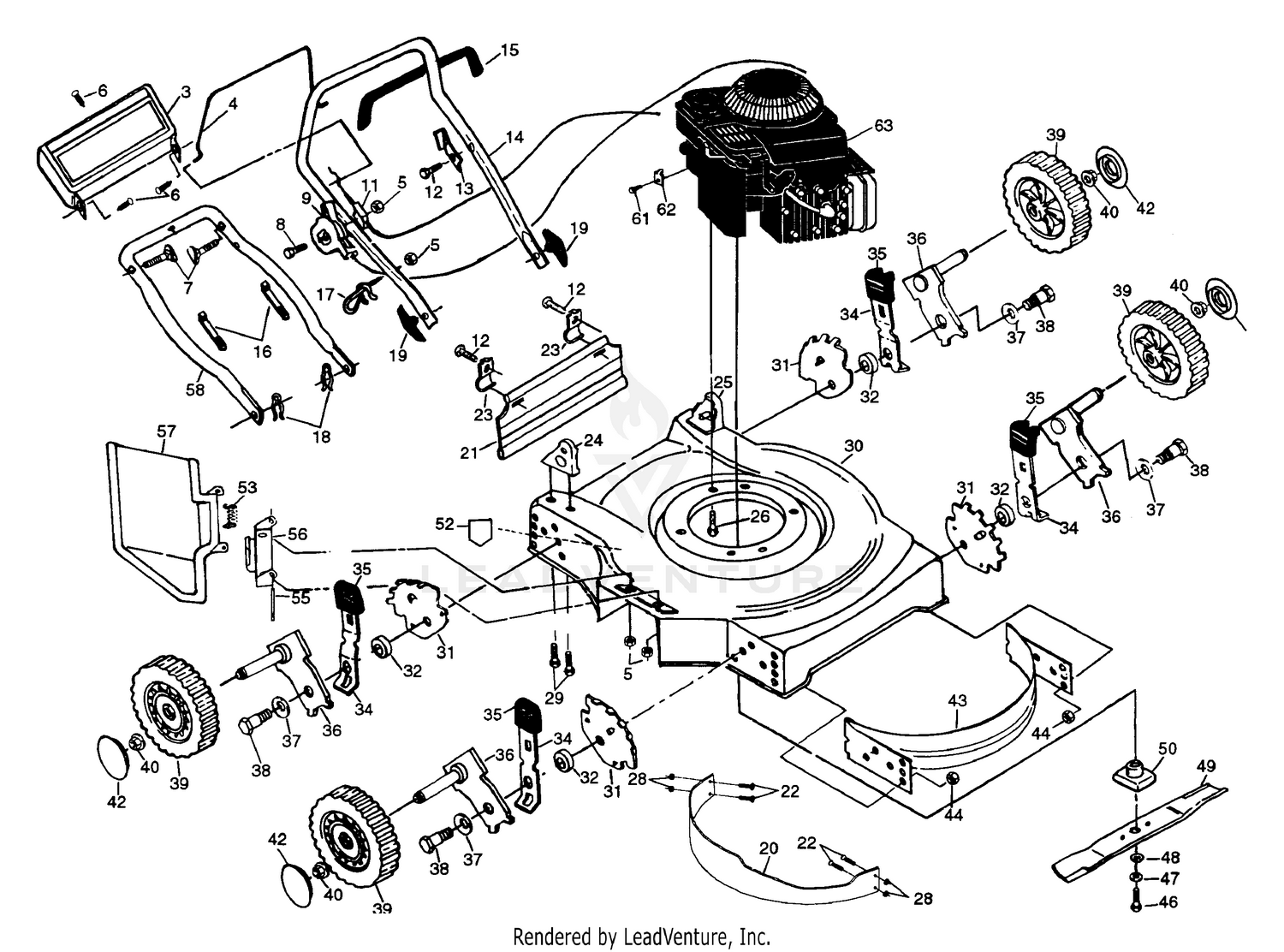

| Ref | Part Number | Description |
|---|
| 1 |
66-8560 |
NUT-PUSH Price: $5.97 |
| 2 |
76-1910 |
DISCONTINUED Price: Call Us |
| 3 |
532157070 |
TRIM PLATE Price: $4.53 |
| 4 |
532850735 |
CONTROL BAR/BLACK Price: $4.69 |
| 5 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 6 |
532701477 |
FASTENER Price: $2.38 |
| 7 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532131959. Price: $9.99 |
| 8 |
532158755 |
SCREW.PAN.HEAD This part replaces 532144929. Price: $4.99 |
| 8 |
76-2940 |
BUMPER Price: $9.73 |
| 9 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 9 |
532700417 |
THROTTLE CONTROL Price: $17.99 |
| 10 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 11 |
322-3 |
SCREW-HH Price: $0.79 |
| 11 |
532130861 |
CABLE.MZR.51.RT.SP./PU. Price: $10.99 |
| 12 |
66-8610 |
DISCONTINUED Price: Call Us |
| 12 |
817021008 |
SCREW This part replaces 532750097. Price: $3.99 |
| 13 |
532850733 |
BRACKET.UPSTOP This part replaces 532125162. Price: $4.99 |
| 13 |
76-1920 |
SLEEVE-BEARING Price: $22.50 |
| 14 |
108-6702 |
ADJUSTER-SEAT, W/HANDLE This part replaces 66-8510. Price: $239.09 |
| 14 |
532166268 |
UPPER HANDLE This part replaces 532150041. Price: $20.88 |
| 15 |
585161003 |
GRIP.HANDLE.FOAM.438MM This part replaces 532850724. Price: $4.99 |
| 15 |
66-8520 |
BUMPER-DOWNSTOP Price: $37.56 |
| 16 |
532007192 |
WIRE TIE This part replaces 532151517. Price: $7.99 |
| 16 |
66-8540 |
SPRING HANGER Price: $41.78 |
| 17 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 17 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532132001. Price: $7.99 |
| 18 |
108-6703 |
ADJUSTER-SEAT This part replaces 66-8530. Price: $183.47 |
| 18 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 19 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532136376. Price: $9.99 |
| 19 |
66-9290 |
SPACER-SUSPENSION Price: $3.60 |
| 20 |
106-1031 |
TENSION ADJUSTER KNOB ASM This part replaces 76-1930. Price: $68.93 |
| 20 |
532132681 |
CLOSE OUT PLATE NLA This part replaces 532142169. Price: $11.70 |
| 21 |
32128-25 |
NUT-HF Price: $3.19 |
| 21 |
532413160 |
SKIRT.REAR.22RD/SD.FO/VE This part replaces 532140543. Price: $11.99 |
| 22 |
66-8600 |
FRAME-UPPER Price: $327.08 |
| 22 |
874961008 |
Machine Screw Price: $2.38 |
| 23 |
532192301 |
BRACKET.SKIRT.BZP This part replaces 532125207. Price: $4.99 |
| 23 |
76-1940 |
SPRING-EXTENSION Price: $66.03 |
| 24 |
532153027 |
HDLE BRKT ASSY LH Price: $7.99 |
| 25 |
532192983 |
KIT HANDLE BRACKET LH/RH This part replaces 532153026. Price: $27.99 |
| 26 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 28 |
532069180 |
LOCKNUT Price: $2.99 |
| 29 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 532149741. Price: $4.99 |
| 31 |
532410807 |
BRACKET.ADJ.WHEEL.5POS.ADS This part replaces 532139901. Price: $3.99 |
| 32 |
532401629 |
SPACER.HEIGHT.ADJUSTER This part replaces 532146630. Price: $3.99 |
| 34 |
532401621 |
SPRING.SELECTOR.5POS.BZP This part replaces 532141730. Price: $4.99 |
| 35 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 36 |
532145935 |
ARM.AXLE.ASM.BZP This part replaces 532149857. Price: $4.99 |
| 37 |
532062335 |
WASHER.BELLEVILLE (3 2 LB) Price: $7.99 |
| 38 |
532174719 |
BOLT SHOULDER 3/8 -16X1 This part replaces 532142748. Price: $7.99 |
| 39 |
532148442 |
WHEEL.8X2.RAD.GRY Price: $24.99 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $3.99 |
| 42 |
532157008 |
HUBCAP.8".GREY Price: $3.99 |
| 43 |
532700839 |
FRONT BAFFLE This part replaces 532138348. Price: $2.56 |
| 46 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 47 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 48 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 49 |
532145106 |
BLADE.20.MULCH.(50DK,6020MD) Price: $17.99 |
| 50 |
581547901 |
ADAPTOR.BLADE.7/8 This part replaces 532850977. Price: $14.99 |
| 52 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532107339. Price: $3.99 |
| 53 |
532411832 |
SPRING.SIDE.DISCHARGE This part replaces 532851855. Price: $4.99 |
| 55 |
532150215 |
HINGE ROD Price: $4.99 |
| 56 |
532088602 |
HINGE DEFLECTOR Price: $3.99 |
| 57 |
532142193 |
DISCHARGE GUARD This part replaces 532142191. Price: $16.35 |
| 58 |
532157081 |
HANDLE.LOWER.BLACK This part replaces 532157082. Price: $54.99 |
| 61 |
532083816 |
SCREW.HEX.HEAD.WASHER.10-16 Price: $4.99 |
| 532160883 |
Owner's |
Manual (English/French) Price: Call Us 532160883 |
