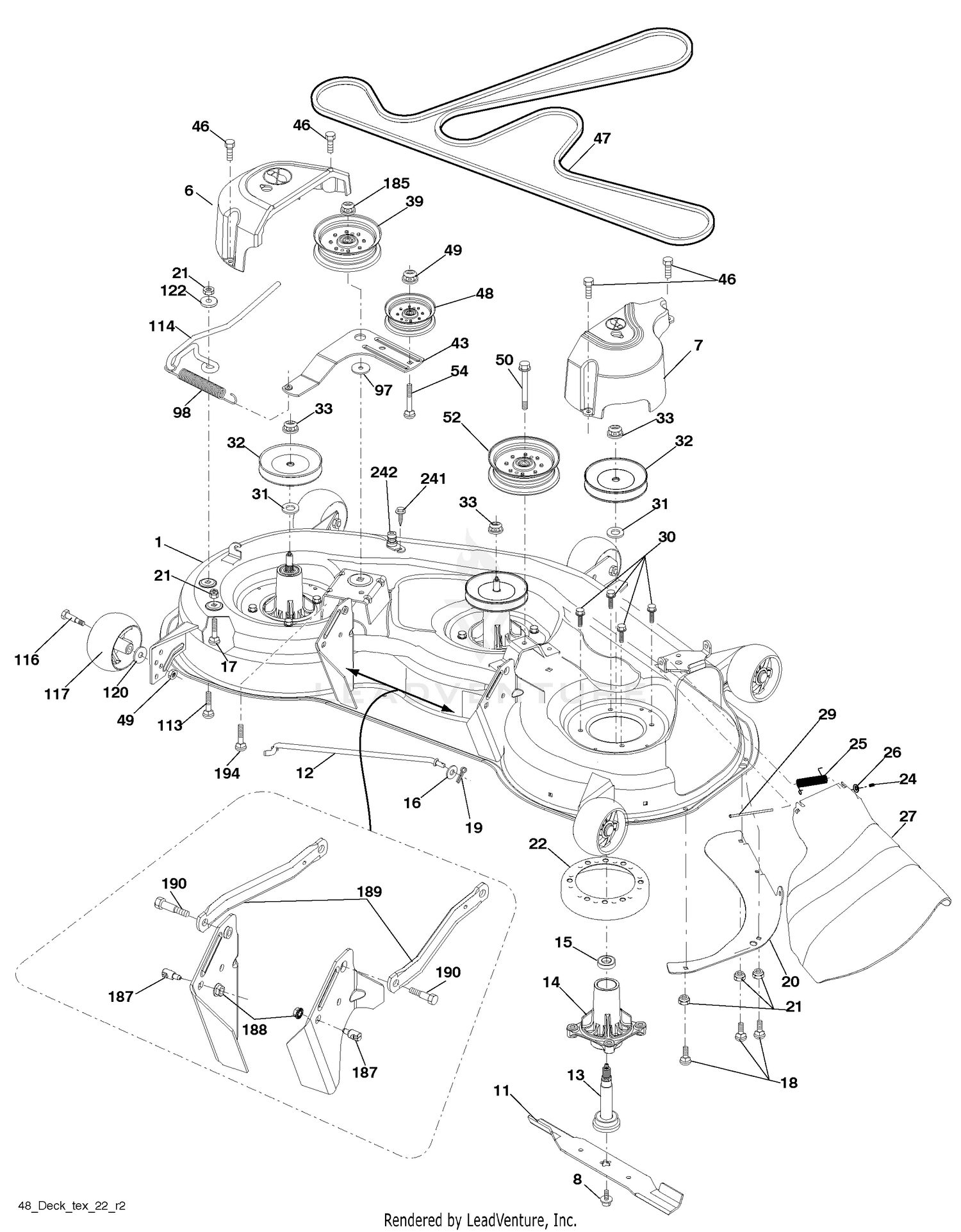

| Ref | Part Number | Description |
|---|
| 1 |
197216 |
Deck Weldment Mower Price: Call Us |
| 2 |
178345 |
Plug Hole Mandrel Price: Call Us |
| 6 |
197248 |
Cover Mandrel LH Price: Call Us |
| 7 |
199102 |
Cover Mandrel RH Price: Call Us |
| 8 |
193003 |
Blot/Washer Asm 7/16-20 unf Price: Call Us |
| 11 |
173921 |
Blade Mulching Price: Call Us |
| 11 |
180054 |
Blade High Lift Price: Call Us |
| 12 |
404851 |
Rod Anti-Sway Price: Call Us |
| 13 |
187291 |
Shaft Asm. Mandrel Price: Call Us |
| 14 |
187281 |
Housing, Mandrel Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 17 |
72110505 |
Bolt 5/16-18 x 5/8 Price: Call Us |
| 18 |
72140505 |
Bolt RdHd 5/16-18 unc x 5/8 Price: Call Us |
| 19 |
194208 |
Pin Cotter 5/16 Bow Tie Lock Price: Call Us |
| 20 |
174378 |
Baffle Vortex Price: Call Us |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 unc Price: Call Us |
| 22 |
174493 |
Stripper Mandrel Price: Call Us |
| 24 |
105304X |
Cap Sleeve Price: Call Us |
| 25 |
178102 |
Spring, Torsion Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
180655X428 |
Deflector Shield Price: Call Us |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
173984 |
Screw, Thdroll Washer Head Price: Call Us |
| 31 |
187690 |
Spacer Mandrel Price: Call Us |
| 32 |
153532 |
Pulley, Mandrel Price: Call Us |
| 33 |
400234 |
Nut, Flg. Top Lock Price: Call Us |
| 39 |
197380 |
Pulley, Idler Price: Call Us |
| 43 |
196065 |
Arm, Idler Price: Call Us |
| 46 |
137729 |
Screw, Thdroll. 1/4-20 x 5/8 Price: Call Us |
| 47 |
197242 |
Belt Deck Drive Price: Call Us |
| 48 |
193197 |
Pulley Idler Price: Call Us |
| 49 |
73900600 |
Nut, Lock Flg. 3/8-16 unc Price: Call Us |
| 50 |
17490636 |
Screw TT 3/8-16 x 2-1/4 Price: Call Us |
| 52 |
197379 |
Pulley Idler Clutching Price: Call Us |
| 54 |
72110612 |
Bolt Carr. Sh 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 97 |
178515 |
Washer Hardened Price: Call Us |
| 98 |
196105 |
Spring Drive Price: Call Us |
| 113 |
72110508 |
Bolt Rdhd Sqnk 5/16-18 x 3/4 Price: Call Us |
| 114 |
197451 |
Rod Tension Relief Price: Call Us |
| 116 |
193406 |
Bolt, Shoulder Price: Call Us |
| 117 |
174873 |
Gauge Wheel Price: Call Us |
| 120 |
19132012 |
Washer 13/32 x 1-1/4 x 12 Ga. Price: Call Us |
| 122 |
187557 |
Bushing Tension Relief Price: Call Us |
| 185 |
73900700 |
Nut Lock Flange 7/16-14 Gr. 5 Price: Call Us |
| 187 |
195161 |
Stud Fastener w/"D" Anti-Rotation Price: Call Us |
| 188 |
73900500 |
Nut Lock Hex Flange Price: Call Us |
| 189 |
195185 |
Arm Susp. Mower Rear Price: Call Us |
| 190 |
196539 |
Bolt Shoulder Price: Call Us |
| 194 |
72140716 |
Bolt Carr Sqnk 7/16-24 x 2 Price: Call Us |
| 241 |
152927 |
Screw Price: Call Us |
| 242 |
415598 |
Port Washout Price: Call Us |
| 242 |
416405 |
Cooupling Quick Connect Price: Call Us |
