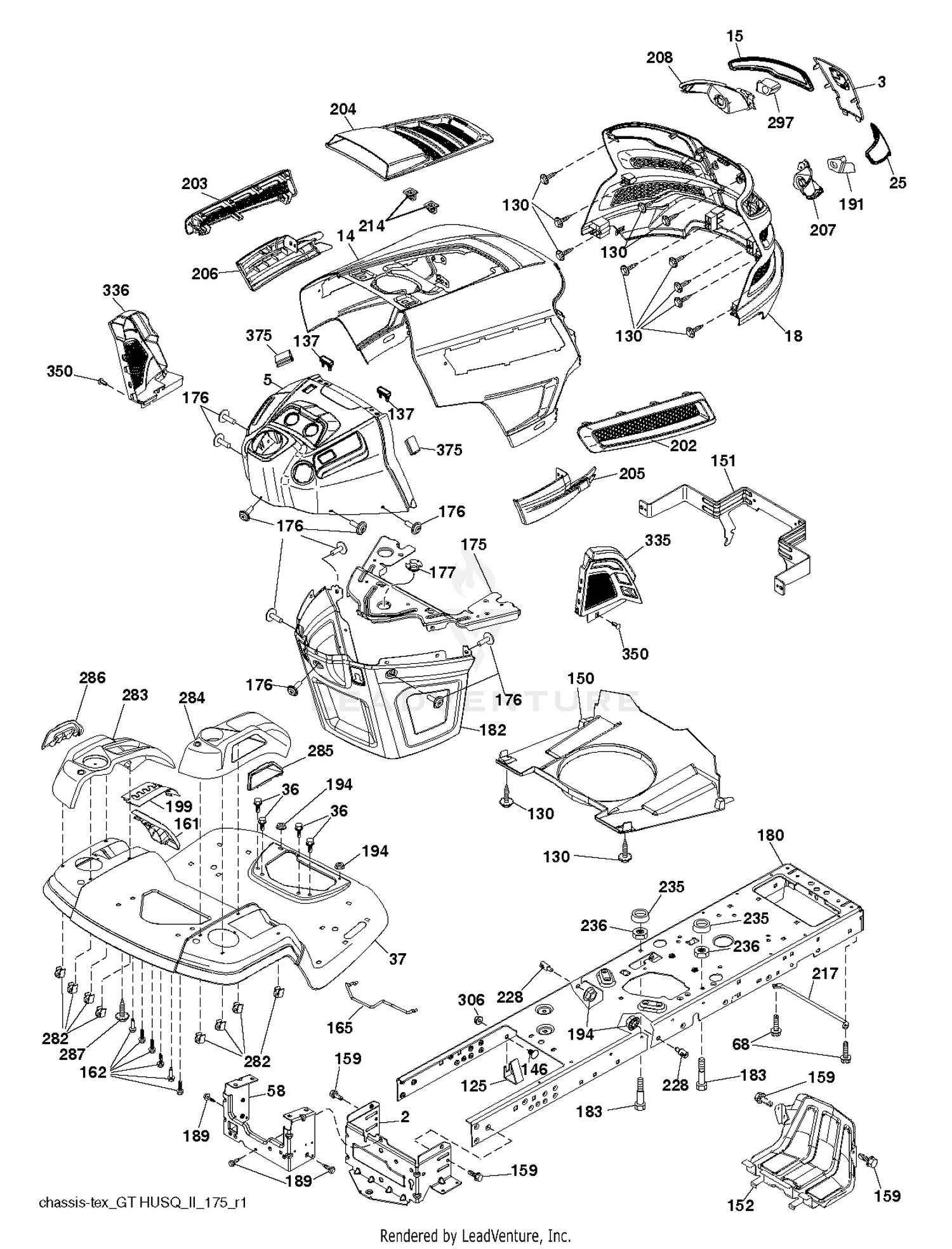

| Ref | Part Number | Description |
|---|
| 1 |
52-2891 |
BUSHING-FLANGED, NYLON Price: $3.19 |
| 2 |
532412282 |
DRAWBAR.LOWER.2PC.18/22 Price: $32.99 |
| 2 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 3 |
532444481 |
APPLIQUE.SUBASM.GT.HUSQ.II Price: $22.99 |
| 3 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 4 |
92-7529 |
CABLE-BRAKE, RH Price: $132.98 |
| 5 |
590748819 |
DASH.UPR.GT2.DUAL.RD.PTO.MC This part replaces 501747101. Price: $44.99 |
| 5 |
92-7530 |
CABLE-BRAKE, LH Price: $132.98 |
| 6 |
98-1459 |
DECAL Price: $3.93 |
| 7 |
98-1471 |
WHEEL-STEERING Price: $145.99 |
| 8 |
99-7140 |
SPRING-TORSION Price: $21.98 |
| 9 |
99-7963-03 |
PEDAL-PARK Price: $26.63 |
| 10 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 11 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 12 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 13 |
105-2409 |
SCREW-HSH Price: $0.68 |
| 14 |
106-3622 |
STEERING TILT COLUMN ASM Price: $715.85 |
| 14 |
587483301 |
KIT.HOOD.ASM.HUSQ.GT.TEX.668 This part replaces 532439725. Price: $74.99 |
| 15 |
105-4886 |
NUT-TINNERMAN Price: $2.37 |
| 15 |
532439733 |
LENS.HEADLIGHT.LH.GTII.2011 Price: $11.99 |
| 16 |
114-8119 |
STEERING VALVE ASM Price: $865.12 |
| 17 |
115-4379-0P |
BRACE-COLUMN This part replaces 115-4379-01. Price: $26.14 |
| 18 |
115-4417 |
ROD-BRAKE PAWL Price: $43.81 |
| 18 |
597247201 |
Grilles This part replaces 532440653. Price: $84.99 |
| 19 |
136-2887-03 |
PEDAL-BRAKE, LH Price: $159.32 |
| 20 |
119-0002 |
PAWL-BRAKE Price: $38.81 |
| 21 |
136-2889 |
PEDAL-BRAKE, RH Price: $429.93 |
| 22 |
120-1691 |
DETENT-BRAKE Price: $32.54 |
| 23 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 24 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 25 |
322-3 |
SCREW-HH Price: $0.79 |
| 25 |
532443385 |
LENS.HEADLIGHT.RH.GTII.2011 Price: $11.99 |
| 26 |
323-12 |
SCREW-HH Price: $1.14 |
| 27 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 28 |
3229-34 |
SCREW-CARR Price: $1.99 |
| 29 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 30 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 31 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 32 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 33 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 34 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 35 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 36 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 37 |
532423694 |
FENDER.TLT.FS.W/CPH/FW/RSF.ORN This part replaces 532441178. Price: $179.99 |
| 38 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 39 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 40 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 41 |
32128-20 |
NUT-HF Price: $0.99 |
| 42 |
117-4763 |
DECAL-BRAKE Price: $15.19 |
| 58 |
531152601 |
SERVICE KIT DRAWBAR FENDER DRA This part replaces 532412280. Price: $44.99 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 125 |
581684801 |
CLIP.FUEL.LINE Price: $2.99 |
| 130 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 146 |
581857901 |
BOLT.RDHD.SHT.SQNK.3/8-16X5/8 Price: $3.99 |
| 150 |
532439774 |
AIR.DUCT.GTV.BLACK Price: $39.99 |
| 151 |
531077401 |
SERVICE KIT PIVOT BRACKET BRAC This part replaces 532436670. Price: $37.99 |
| 152 |
532439870 |
SHIELD.BROWNING.PNT.GT.V2 Price: $14.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 161 |
532439781 |
WINDOW.FUEL.LT.HUSQ.TEX.498 Price: $5.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 165 |
532194330 |
SUPPORT.TANK.REAR.B/TE Price: $17.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE This part replaces 532196304. Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195228 |
BUSHING STEERING Price: $4.99 |
| 180 |
582033101 |
KITS.TEX.BOLTED.CHASSIS.445559 This part replaces 532445559. Price: $229.99 |
| 182 |
532406859 |
DASH.LOWER.COMMON.12V.ADAPTOR Price: $84.99 |
| 183 |
595305701 |
Screws This part replaces 874520520. Price: $3.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 191 |
532437455 |
INSERT.REFLECTIVE.RH.HUSQ.GTII Price: $14.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 199 |
532413485 |
PLATE.DECK.LIFT.HUSQ.LT Price: $9.99 |
| 204 |
587485801 |
VENT.TOP.ASM.HUSQ.GT2 This part replaces 532435714. Price: $22.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 235 |
596564201 |
Spacers This part replaces 532406129. Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 282 |
532414110 |
CLIP.RETAINER.CONSOLE.LT.HUSQ Price: $2.99 |
| 283 |
532439151 |
CONSOLE.ASM.LFT.RSF.HUSQ.LT This part replaces 532442039. Price: $37.99 |
| 284 |
532439150 |
CONSOLE.SHFT.PDL.CNTRL.HUSQ.LT This part replaces 532439823. Price: $39.99 |
| 287 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 297 |
532437456 |
INSERT.REFLECTIVE.LH.HUSQ.GTII Price: $14.99 |
| 306 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 335 |
532448204 |
COVER.LOWER.DASH.RH.BLACK Price: $24.99 |
| 336 |
532445309 |
COVER-LH.LOWER.DASH.GT2.BLACK Price: $24.99 |
| 350 |
532445143 |
CLIP.X-MAS.TREE Price: $3.99 |
| 375 |
586908201 |
BUMPER CLIP-ON. DASH 1" Price: $3.99 |
