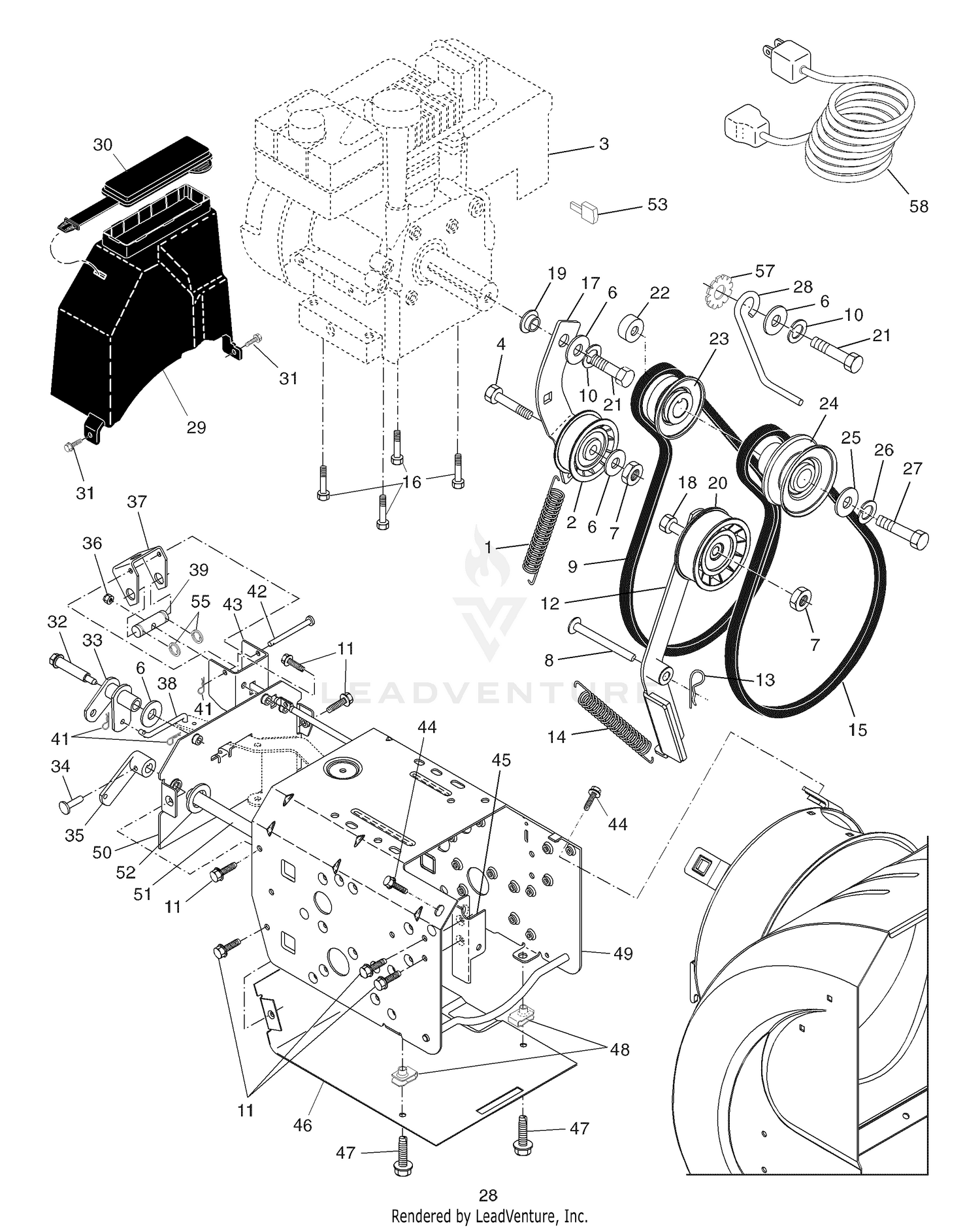

| Ref | Part Number | Description |
|---|
| 1 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 1 |
532414557 |
SPRING.TRACTION.IDLER This part replaces 532181044. Price: $4.99 |
| 2 |
93-2276 |
DISCONTINUED Price: Call Us |
| 3 |
3220-2 |
NUT-JAM Price: $0.50 |
| 4 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 4 |
93-2010-01 |
FRAME ASM This part replaces 93-2010. Price: $3,690.13 |
| 5 |
93-8062 |
DECAL-BRAKE, PARKING Price: $4.95 |
| 6 |
33123-016 |
SCREW-CARR Price: $1.21 |
| 6 |
532059289 |
STEEL WASHER Price: $3.99 |
| 7 |
32141-111 |
NUT-ADJUSTING Price: $6.09 |
| 7 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 8 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 8 |
532175330 |
PIN, IDLER PIVOT Price: $4.99 |
| 9 |
33114-020 |
SCREW-HH Price: $0.28 |
| 9 |
532416954 |
V-BELT.TRACTION This part replaces 532179092. Price: $27.99 |
| 10 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 10 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 11 |
10-7880 |
DISCONTINUED Price: Call Us |
| 11 |
871020512 |
Screw, Hex Head 5/16-18 x 1/2 Price: $2.99 |
| 12 |
10-7890 |
DISCONTINUED Price: Call Us |
| 12 |
532422111 |
ARM.IDLER.BRAKE.BLACK This part replaces 532410420. Price: $12.99 |
| 13 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 13 |
93-2080 |
BRAKE LATCH WA Price: $67.10 |
| 14 |
532178828 |
SPRING, BRAKE Price: $4.99 |
| 14 |
93-2069 |
ROD-BRAKE Price: $15.33 |
| 15 |
532408010 |
BELT.V.IMPELLER.DRIVE Price: $34.99 |
| 15 |
83-1700 |
BUSHING-FLANGE Price: $7.80 |
| 16 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 16 |
93-2073-01 |
SHIELD-WHEEL, LH This part replaces 93-2073. Price: $104.03 |
| 17 |
585238401 |
ARM.ASM.TRACTION.IDLER. This part replaces 532184804. Price: $27.99 |
| 17 |
93-2072-01 |
SHIELD-WHEEL, RH This part replaces 93-2072. Price: $92.07 |
| 18 |
283-61 |
PIN-YOKE Price: $1.56 |
| 18 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 19 |
282-2 |
YOKE Price: $30.04 |
| 19 |
587343701 |
BUSHING.BRAKE.ARM This part replaces 532175331. Price: $5.99 |
| 20 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 21 |
874610516 |
SCREW Price: $3.99 |
| 21 |
93-2075-01 |
BRAKE PEDAL ASM This part replaces 93-2075. Price: $188.33 |
| 22 |
532409425 |
Spacer, Engine Pulley Price: Call Us |
| 22 |
93-7629 |
PAD-FOOT, BRAKE Price: $25.13 |
| 23 |
283-87 |
PIN-CLEVIS Price: $8.89 |
| 23 |
595926601 |
PULLEY This part replaces 532180478. Price: $27.99 |
| 24 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 24 |
532426491 |
PULLEY.IMPELER. This part replaces 532179157. Price: $14.99 |
| 25 |
532400026 |
WASHER, FLAT 3/8 Price: $7.99 |
| 26 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 27 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 28 |
532155452 |
BELT.GUIDE.RH Price: $4.99 |
| 30 |
532178830 |
COVER.STORAGE.SNOW Price: $2.99 |
| 31 |
596437001 |
Screws This part replaces 817490408. Price: $2.99 |
| 32 |
532179256 |
BOLT, SHOULDER 5/16-18 Price: $2.99 |
| 33 |
532187853 |
BELLCRANK SHIFTER Price: $12.99 |
| 34 |
532198580 |
CLEVIS PIN Price: $4.99 |
| 35 |
532405485 |
ARM, AUGER CONTROL Price: $6.99 |
| 36 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 37 |
532184086 |
BRACKET, PIVOT Price: $3.99 |
| 38 |
532187101 |
LINK, SPEED CONTROL Price: $64.99 |
| 39 |
532192110 |
TRUNNION, TRACTION Price: $7.99 |
| 41 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 42 |
532179065 |
PIN, PIVOT BRACKET Price: $8.99 |
| 43 |
532184085 |
BRACKET Price: $2.69 |
| 44 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 45 |
532422762 |
KIT.SERVCE.IDLER.PULLEY This part replaces 532184074. Price: $79.99 |
| 46 |
532178624 |
PAN, FRAME BOTTOM This part replaces 532184084. Price: $17.99 |
| 47 |
871020512 |
Screw, Hex Head 5/16-18 x 3/4 Price: $2.99 |
| 48 |
532181156 |
NUT.SPEED.5/16-18 Price: $3.99 |
| 49 |
532404431 |
FRAME.WELDMENT.SNOW.ORANGE This part replaces 532407642. Price: $64.99 |
| 50 |
583706301 |
END.PLATE.DS.SNOW.BLACK This part replaces 532188002. Price: $14.99 |
| 51 |
532429668 |
KIT.CONTROL.SHAFT.SNOW This part replaces 532406109. Price: $29.99 |
| 52 |
532057079 |
THRUST WASHER Price: $1.99 |
| 53 |
531300340 |
KEY, TECUMSEH ENGINE This part replaces 532035062. Price: $10.00 |
| 55 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 57 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 811050500. Price: $2.99 |
