| Ref | Part Number | Description |
|---|
| 1 |
49-6200-01 |
LEVER-CUTTING Price: $100.17 |
| 2 |
283-61 |
PIN-YOKE Price: $1.56 |
| 3 |
282-2 |
YOKE Price: $30.04 |
| 4 |
3220-2 |
NUT-JAM Price: $0.50 |
| 5 |
49-5430 |
ROD-CONTROL Price: $75.94 |
| 6 |
49-6110-01 |
GUARD-ROD, TRANSMISSION Price: $65.82 |
| 7 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 8 |
10-7850 |
LATCH-BRAKE, PARKING Price: $111.12 |
| 9 |
95-1628 |
DISCONTINUED Price: Call Us |
| 10 |
93-8062 |
DECAL-BRAKE, PARKING Price: $4.95 |
| 11 |
83-0640-01 |
PLATE-FOOTREST Price: $105.48 |
| 12 |
49-6120 |
PAD-FOOTREST Price: $33.37 |
| 13 |
3229-11 |
SCREW-CARR Price: $0.99 |
| 14 |
32141-111 |
NUT-ADJUSTING Price: $6.09 |
| 15 |
95-1629 |
HINGE-LOWER Price: $10.72 |
| 16 |
93-8075 |
DECAL-MOW/LIFT Price: $6.44 |
| 17 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 18 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 19 |
3274-31 |
SCREW-HSBH Price: $0.89 |
| 20 |
32148-6 |
NUT-CLINCH Price: $1.24 |
| 21 |
321-4 |
SCREW-HH Price: $0.99 |
| 22 |
83-0200-01 |
PLATE-COVER, LH Price: $46.92 |
| 23 |
32128-33 |
NUT-HF Price: $0.25 |
| 24 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 25 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 26 |
93-9901-01 |
BRACKET-LOCKOUT, MOW Price: $92.00 |
| 27 |
83-0080 |
SPRING-PIVOT, LIFT Price: $20.57 |
| 28 |
106-6396 |
LIFT-PIVOT V This part replaces 83-0060. Price: $63.16 |
| 29 |
27-2270 |
ROD-ADJUSTMENT, BRAKE Price: $32.18 |
| 30 |
10-8100-01 |
STRAP-SHAFT, BRAKE Price: $34.17 |
| 31 |
32121-35 |
PIN-ROLL Price: $0.79 |
| 32 |
88-9640-01 |
BRACKET-LIFT PIVOT, LH Price: $42.90 |
| 33 |
3256-38 |
WASHER-FLAT Price: $0.49 |
| 34 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 35 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 36 |
93-7631 |
PAD-FOOT, LIFT Price: $8.10 |
| 37 |
106-6395 |
CUTTING CONTROL SHAFT ASM This part replaces 88-9660. Price: $151.92 |
| 38 |
83-2590 |
BOLT-SHOULDER, PIVOT Price: $50.18 |
| 39 |
83-0160 |
SHAFT-BRAKE Price: $111.83 |
| 40 |
106-6394 |
MOW PEDAL ASM This part replaces 83-0140. Price: $72.96 |
| 41 |
93-7630 |
PAD-FOOT Price: $8.20 |
| 42 |
93-7629 |
PAD-FOOT, BRAKE Price: $25.13 |
| 43 |
88-9630-01 |
BRACKET-LIFT PIVOT, RH Price: $42.90 |
| 44 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 45 |
321-11 |
SCREW-HH Price: $0.36 |
| 46 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 47 |
69-9760 |
COVERPLATE Price: $5.38 |
| 48 |
56-7970 |
CLAMP-TUBE Price: $10.02 |
| 49 |
88-9620 |
DECAL Price: $26.60 |
| 50 |
10-8140 |
SPRING-LATCH, BRAKE Price: $18.38 |
| 51 |
321-3 |
SCREW-HH Price: $0.28 |
| 52 |
93-9898 |
DECAL-LOCK Price: $5.59 |
| 53 |
93-9903 |
PIN-MOW, LOCKOUT Price: $65.65 |
| 54 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 55 |
27-2320 |
BEARING Price: $15.22 |
| 56 |
3-1506 |
BUSHING Price: $2.42 |
| 57 |
76-0410 |
SPRING-COMPRESSION Price: $5.92 |
| 58 |
93-9904 |
ARM-MOW, LOCKOUT Price: $29.06 |
| 59 |
3253-3 |
WASHER-LOCK Price: $0.31 |

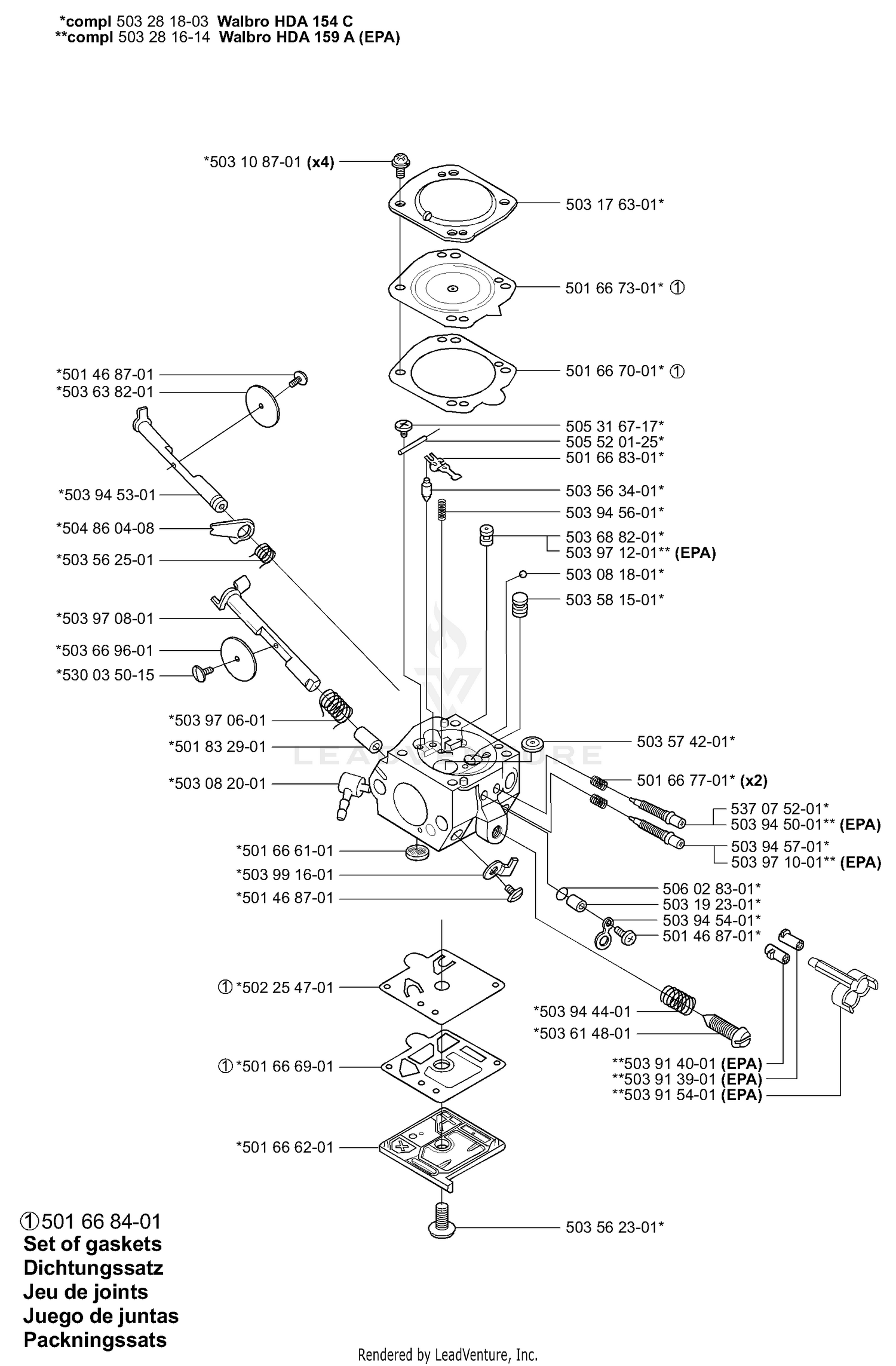

| 501468701 |
501468701 |
SCREW Price: $6.99 |
| 501666101 |
501666101 |
FUEL INLET SCREEN Price: $12.99 |
| 501666201 |
501666201 |
COVER, PUMP SIDE Price: $5.99 |
| 501666901 |
501666901 |
GASKET, PUMP SIDE Price: $14.99 |
| 501667001 |
501667001 |
GASKET, METERING SIDE Price: $6.99 |
| 501667301 |
501667301 |
METERING DIAPHRAGM Price: $64.99 |
| 501667701 |
501667701 |
SPRING Price: $7.99 |
| 501668301 |
501668301 |
LEVER Price: $14.99 |
| 501668401 |
501668401 |
REPAIR KIT DIAPHRAGM SET Price: $17.99 |
| 501832901 |
501832901 |
BUSHING Price: $2.99 |
| 502254701 |
502254701 |
PUMP DIAPHRAGM Price: $19.99 |
| 503081801 |
503081801 |
Washer Price: $7.50 |
| 503082001 |
503082001 |
NIPPLE Price: $4.99 |
| 503108701 |
503584601 |
SCREW This part replaces 503108701. Price: $2.99 |
| 503176301 |
503176301 |
COVER METERING DIAPHR. Price: $4.99 |
| 503192301 |
503192301 |
SPACER Price: $0.99 |
| 503281614 |
503283208 |
CARBURETOR C3-EL18 This part replaces 503281614. Price: $99.99 |
| 503281803 |
503283207 |
CARBURETOR C3-EL17 This part replaces 503281803. Price: $99.99 |
| 503562501 |
537158101 |
SPRING This part replaces 503562501. Price: $9.99 |
| 503563401 |
503563401 |
INLET NEEDLE Price: $14.99 |
| 503574201 |
503574201 |
WELCH PLUG Price: $6.99 |
| 503581501 |
503581501 |
JET Price: $4.99 |
| 503614801 |
503614801 |
IDLE SPEED SCREW Price: $2.99 |
| 503638201 |
503638201 |
CHOKE VALVE Price: $2.99 |
| 503669601 |
503669601 |
THROTTLE VALVE Price: $4.99 |
| 503688201 |
503688201 |
JET Price: $5.99 |
| 503913901 |
503913901 |
LIMITER CAP Price: $2.99 |
| 503914001 |
503914001 |
LIMITER CAP Price: $4.99 |
| 503915401 |
503915401 |
CAP Price: $7.99 |
| 503944401 |
503944401 |
SPRING Price: $11.99 |
| 503945001 |
503945001 |
Adjusting Screw (EPA) Price: $3.38 |
| 503945301 |
503945301 |
Chokeshaft Price: $10.23 |
| 503945401 |
503945401 |
LEVER Price: $3.99 |
| 503945601 |
503945601 |
SPRING Price: $2.99 |
| 503945701 |
503945701 |
IDLE NEEDLE Price: $4.99 |
| 503970601 |
503970601 |
RETURN SPRING Price: $2.99 |
| 503970801 |
503970801 |
Shaft Price: $4.68 |
| 503971001 |
503971001 |
Adjusting Screw (EPA) Price: $9.90 |
| 503971201 |
503971201 |
JET Price: $2.99 |
| 503991601 |
503991601 |
LEVER Price: $2.99 |
| 504860408 |
537158201 |
LEVER This part replaces 504860408. Price: $3.99 |
| 505316717 |
505316717 |
SCREW Price: $6.99 |
| 505520125 |
505520125 |
FULCRUM PIN Price: $6.99 |
| 506028301 |
506028301 |
WASHER Price: $11.99 |
| 530035015 |
530035015 |
SCREW SHUTTERS Price: $2.99 |
| 537075201 |
537075201 |
ADJUSTING SCREW Price: $7.99 |
