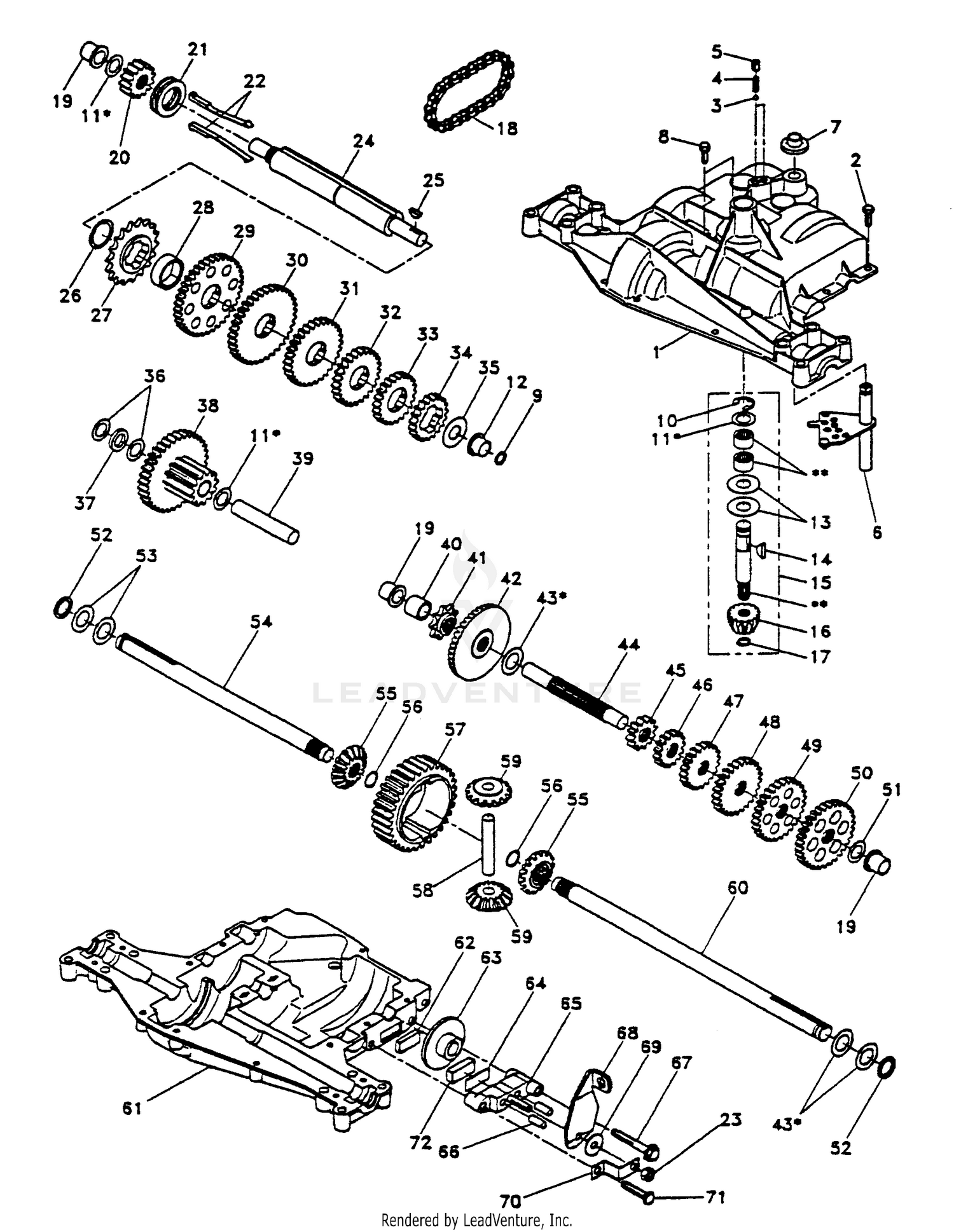

Dana Transaxle

Dana Transaxle

Parts (70)

RefPart NumberDescription
1 142671 Housing, Upper Price: Call Us
2 2274J Screw, Self-Tapping, Large 1/4-20 x .734 Price: Call Us
3 134400 Ball, Detent Price: Call Us
4 105904X Spring, Detent Price: Call Us
5 105905X Screw, Set Price: Call Us
6 138235 Kit, Shifter Assembly Price: Call Us
7 134399 Boot, Shifter Price: Call Us
8 134791 Screw, Tapping w/Sealer Price: Call Us
9 138241 Square Ring Price: Call Us
10 142672 Ring, Retaining Price: Call Us
12 142673 Bearing, Flange Price: Call Us
13 120415X Washer, Plain .632 x 1.38 x .046 Price: Call Us
14 142674 Key, Woodruff, #9 Price: Call Us
15 138234 Assembly, Kit, Input Shaft Price: Call Us
16 110078X Pinion, Bevel, 14 Teeth Price: Call Us
17 105909X Ring, Retaining Price: Call Us
18 105910X Chain, 24 Pitches Price: Call Us
19 105911X Bearing, Flange Price: Call Us
20 142675 Gear, Spur, 14 Teeth Price: Call Us
21 138246 Collar, Clutch Price: Call Us
22 138236 Assembly, Kit, Clutch Keys Price: Call Us
23 73810500 Locknut 5/16-24 Price: Call Us
24 142676 Shaft, Intermediate Price: Call Us
25 2244J Key, Woodruff, #61 Price: Call Us
26 105916X Ring, Retaining Price: Call Us
27 120470X Sprocket, 18 Teeth Price: Call Us
28 110070X Spacer Price: Call Us
29 142677 Gear, Spur, 37 Teeth Price: Call Us
30 142681 Gear, Spur, 35 Teeth Price: Call Us
31 120405X Gear, Spur, 30 Teeth Price: Call Us
32 108980X Gear, Spur, 25 Teeth Price: Call Us
33 120406X Gear, Spur, 22 Teeth Price: Call Us
34 134796 Gear, Spur, 19 Teeth Price: Call Us
35 105925X Washer, Plain .640 x 1.37 x .061 Price: Call Us
36 2232J Washer, Plain .632 x 1.00 x .026 Price: Call Us
37 108978X Spacer .630 x 1.00 x .169 Price: Call Us
38 110079X Assembly, Gear, Combination of 12 Teeth and 35 Teeth Price: Call Us
39 124639X Shaft, Idler Price: Call Us
40 120472X Spacer .635 x .875 x .755 Price: Call Us
41 105928X Sprocket, 9 Teeth Price: Call Us
42 110084X Gear, Bevel, 42 Teeth Price: Call Us
44 120473X Shaft, Drive Price: Call Us
45 142678 Gear, Spur, 12 Teeth Price: Call Us
46 142679 Gear, Spur, 15 Teeth Price: Call Us
47 120407X Gear, Spur, 20 Teeth Price: Call Us
48 106589X Gear, Spur, 25 Teeth Price: Call Us
49 120408X Gear, Spur, 28 Teeth Price: Call Us
50 105937X Gear, Spur, 31 Teeth Price: Call Us
51 2226J Washer, Plain .632 x 1.00 x .060 Price: Call Us
52 134401 Washer, Neoprene Price: Call Us
53 2264J Washer, Plain .758 x 1.25 x .031 Price: Call Us
54 120474X Axle, L.H. Price: Call Us
55 110081X Gear, Miter, 15 Teeth Price: Call Us
56 105941X Ring, Retaining Price: Call Us
57 110071X Gear, Spur, 32 Teeth Price: Call Us
58 120952X Shaft, Cross Price: Call Us
59 110082X Gear,-Miter, 15 Teeth Price: Call Us
60 120475X Axle, R.H. Price: Call Us
61 142680 Housing. Lower Price: Call Us
62 120961X Puck, Friction Price: Call Us
63 7294J Disc, Brake Price: Call Us
64 108989X Spacer Price: Call Us
65 120953X Jaw, Brake Price: Call Us
66 120954X Pin, Dowel Price: Call Us
67 134799 Screw, Self-Tapping, Large 5/16-18 x 2.25 Price: Call Us
68 138244 Lever, Actuating Price: Call Us
69 108996X Washer, Plain .321 x 1.00 x .055 Price: Call Us
70 120956X Bracket, Anti-Rotation Price: Call Us
71 106596X Screw, Self-Tapping, Large 5/16-18 x 1.44 Price: Call Us
72 120951X Puck, Friction Price: Call Us
