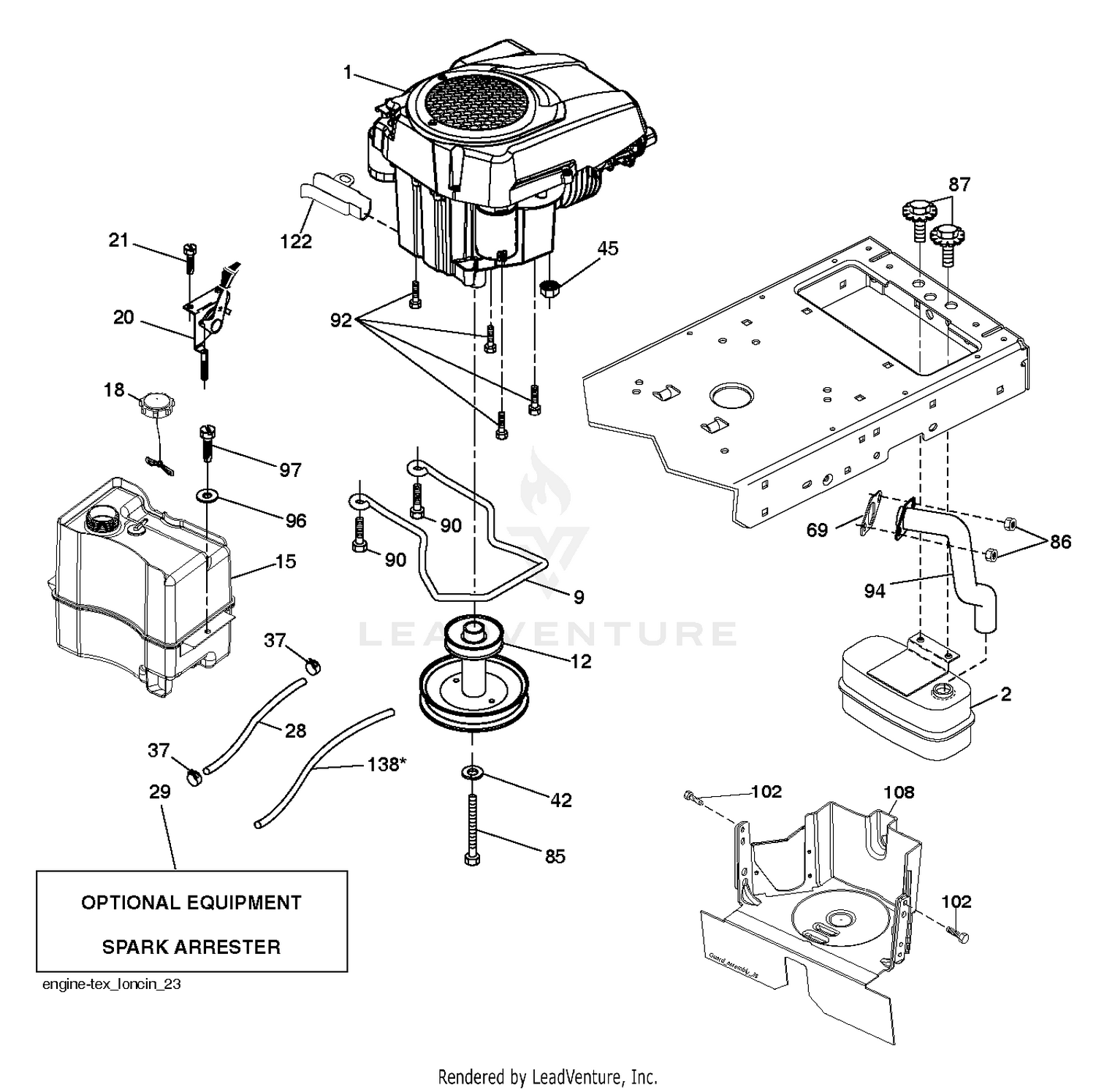

| Ref | Part Number | Description |
|---|
| 2 |
590645302 |
MUFFLER.ASM.SINGLE This part replaces 590645301. Price: $39.99 |
| 9 |
596501502 |
Keepers Price: $9.99 |
| 15 |
581289901 |
FUEL.TANK.ASM.NON-EPA Price: $44.99 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 20 |
532176636 |
CONTROL.TH/CK.C.BLACK This part replaces 532183897. Price: $27.99 |
| 21 |
596321701 |
Screws Price: $2.99 |
| 28 |
587044822 |
HOSE.1/4".LOW.PERM.FUEL.LN.22" This part replaces 532401137. Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
596238901 |
Washers Price: $2.99 |
| 45 |
593356401 |
NUT HEXAGON WITH FLANGE, SERRA Price: $1.99 |
| 69 |
590863501 |
GASKET GASKET.EXHAUST.LONCIN 3 Price: $3.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE Price: $2.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 94 |
590864701 |
TUBE TUBE.EXHAUST.LONCIN 452.T Price: $24.99 |
| 96 |
596135301 |
Washers Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 102 |
593337601 |
Screws Price: $3.99 |
| 108 |
587179510 |
COVER ENGINE PULLEY COVER WITH Price: $69.99 |
| 122 |
532421922 |
EXTENSION DRAIN OIL Price: $24.99 |
