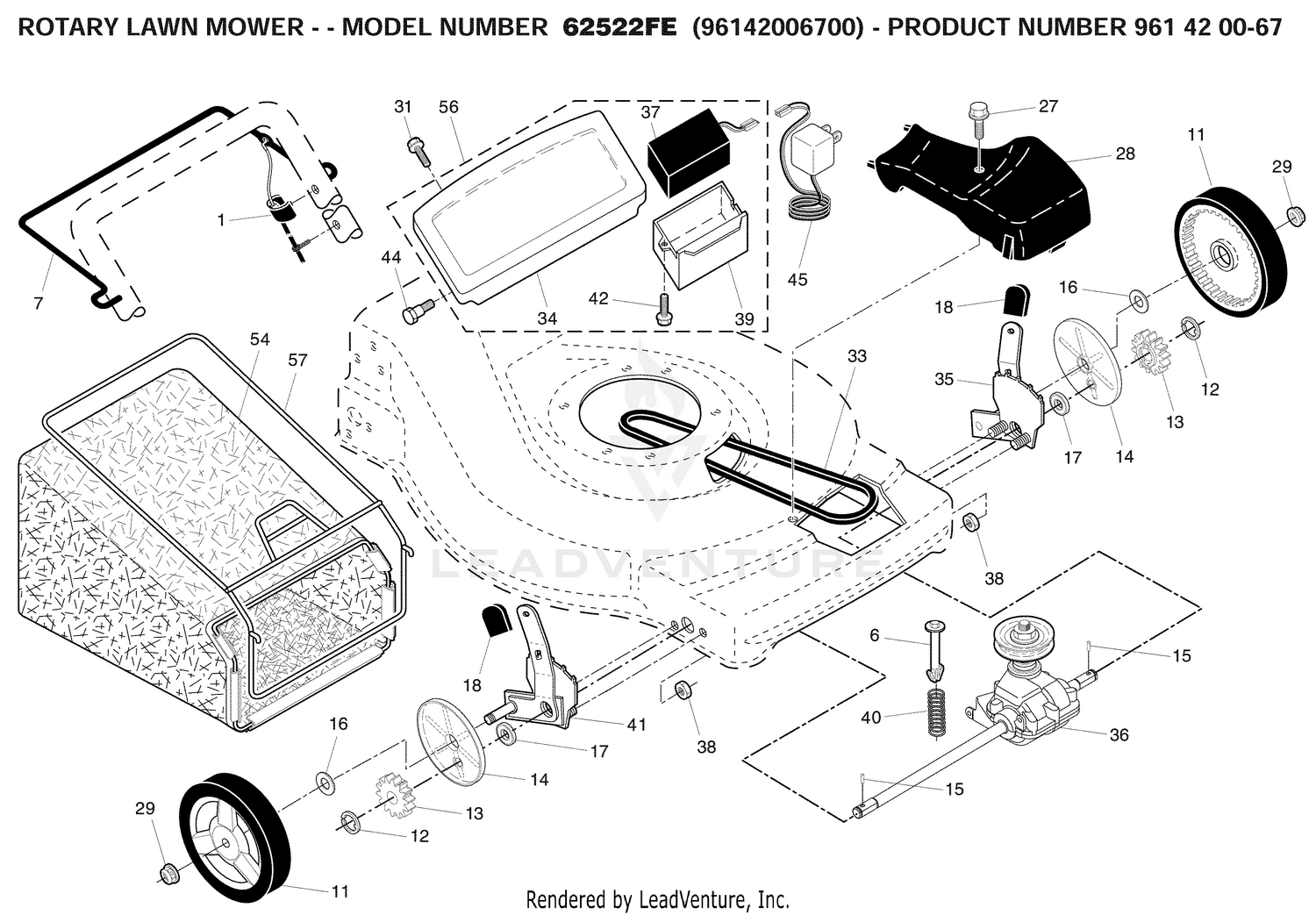

| Ref | Part Number | Description |
|---|
| 1 |
532194653 |
CONTROL.DRIVE.S/SPEED.FWGD Price: $22.99 |
| 1 |
67-3770 |
DISCONTINUED Price: Call Us |
| 2 |
67-3760 |
LOCK PLATE Price: $21.29 |
| 3 |
67-3740 |
NIPPLE Price: $62.56 |
| 4 |
67-3480 |
O-RING Price: $2.47 |
| 5 |
67-3490 |
SPRING Price: $5.86 |
| 6 |
532150495 |
SPRING RETAINER Price: $3.99 |
| 6 |
93-3465 |
GASKET-DELIVERY V. This part replaces 42-8240. Price: $8.09 |
| 7 |
532199093 |
BAIL.CONT.DR.S/S.ROUND.ORG Price: $20.99 |
| 7 |
67-3500 |
SUB-ASSEMBLY VALVE Price: $99.95 |
| 8 |
75-4970 |
ELEMENT - SUB-ASSY Price: $224.06 |
| 9 |
67-3460 |
SUB-ASM PUMP HOUSING Price: $618.09 |
| 10 |
67-3520 |
SUB-ASSEMBLY SLEEVE Price: $47.39 |
| 11 |
532401274 |
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 This part replaces 532411081. Price: $27.99 |
| 11 |
67-3530 |
SEAT Price: $4.36 |
| 12 |
67-3540 |
SPRING Price: $12.47 |
| 12 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 13 |
532403849 |
PINION.14.TEETH.FGD Price: $5.99 |
| 13 |
67-3550 |
DISCONTINUED Price: Call Us |
| 14 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99 |
| 14 |
67-3680 |
DISCONTINUED Price: Call Us |
| 15 |
532404845 |
PAWL, DRIVE Price: $4.99 |
| 15 |
67-3700 |
DISCONTINUED Price: Call Us |
| 16 |
532067725 |
WASHER FLUT Price: $5.99 |
| 16 |
67-3810 |
PIN Price: $4.69 |
| 17 |
587070202 |
BEARING.SUPPORT.ASM This part replaces 532191039. Price: $12.99 |
| 17 |
67-3790 |
DISCONTINUED Price: Call Us |
| 18 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 18 |
67-3800 |
BRACKET Price: $27.34 |
| 19 |
67-3780 |
RACK ASSEMBLY Price: $154.27 |
| 20 |
70-3910 |
WASHER This part replaces 67-3750. Price: $3.15 |
| 21 |
67-3740 |
NIPPLE Price: $62.56 |
| 22 |
67-3730 |
DISCONTINUED Price: Call Us |
| 23 |
67-3720 |
DISCONTINUED Price: Call Us |
| 24 |
67-3710 |
AIR BLEED SCREW Price: $6.38 |
| 25 |
67-3970 |
NUT Price: $28.82 |
| 25 |
75-5000 |
BODY SUB-ASSY Price: $147.67 |
| 26 |
67-3980 |
GASKET Price: $3.19 |
| 27 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 27 |
67-3960 |
NOZZLE ASSEMBLY Price: $167.76 |
| 28 |
532419195 |
COVER.DRIVE.TORUS.B&S.MOLDED Price: $10.99 |
| 28 |
67-3950 |
PIECE Price: $19.92 |
| 29 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 29 |
93-3502 |
PIN-PRESSURE This part replaces 67-3940. Price: $3.22 |
| 30 |
67-3930 |
SPRING Price: $12.66 |
| 31 |
532141841 |
SCREW.PAN.HEAD.#10 Price: $3.99 |
| 31 |
67-3870 |
WASHER 4.45 Price: $4.40 |
| 31 |
93-3491 |
WASHER-T=1.25 This part replaces 67-3830. Price: $8.80 |
| 33 |
532157769 |
KIT.SERVICE.BELT/SPRING. This part replaces 532146527. Price: $14.99 |
| 34 |
532411190 |
PANEL.TRIM.21.FWGD.ES Price: $32.99 |
| 36 |
532415226 |
TRANSMISSION.22.FGD/W/PULLEY Price: $69.99 |
| 37 |
584353901 |
BATTERY.12V.22+RWGD.AGM This part replaces 532189589. Price: $84.99 |
| 38 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 39 |
532186237 |
BOX.BATTERY.TRIM Price: $5.99 |
| 40 |
532137090 |
SPRING.EXTENSION Price: $4.99 |
| 41 |
532438486 |
KIT ADJUSTER ASM.438148 This part replaces 532424200. Price: $38.99 |
| 44 |
532175551 |
SCREW.SHOULDER.HH.10X.281X.6 Price: $2.99 |
| 45 |
597186301 |
Chargers This part replaces 532190097. Price: $32.99 |
| 54 |
532425669 |
GBAG.83230247T.SIL.HUSQ.BLU Price: $69.99 |
| 56 |
532191252 |
PANEL.ASM.TRIM/BATTERY.BOX Price: $64.99 |
