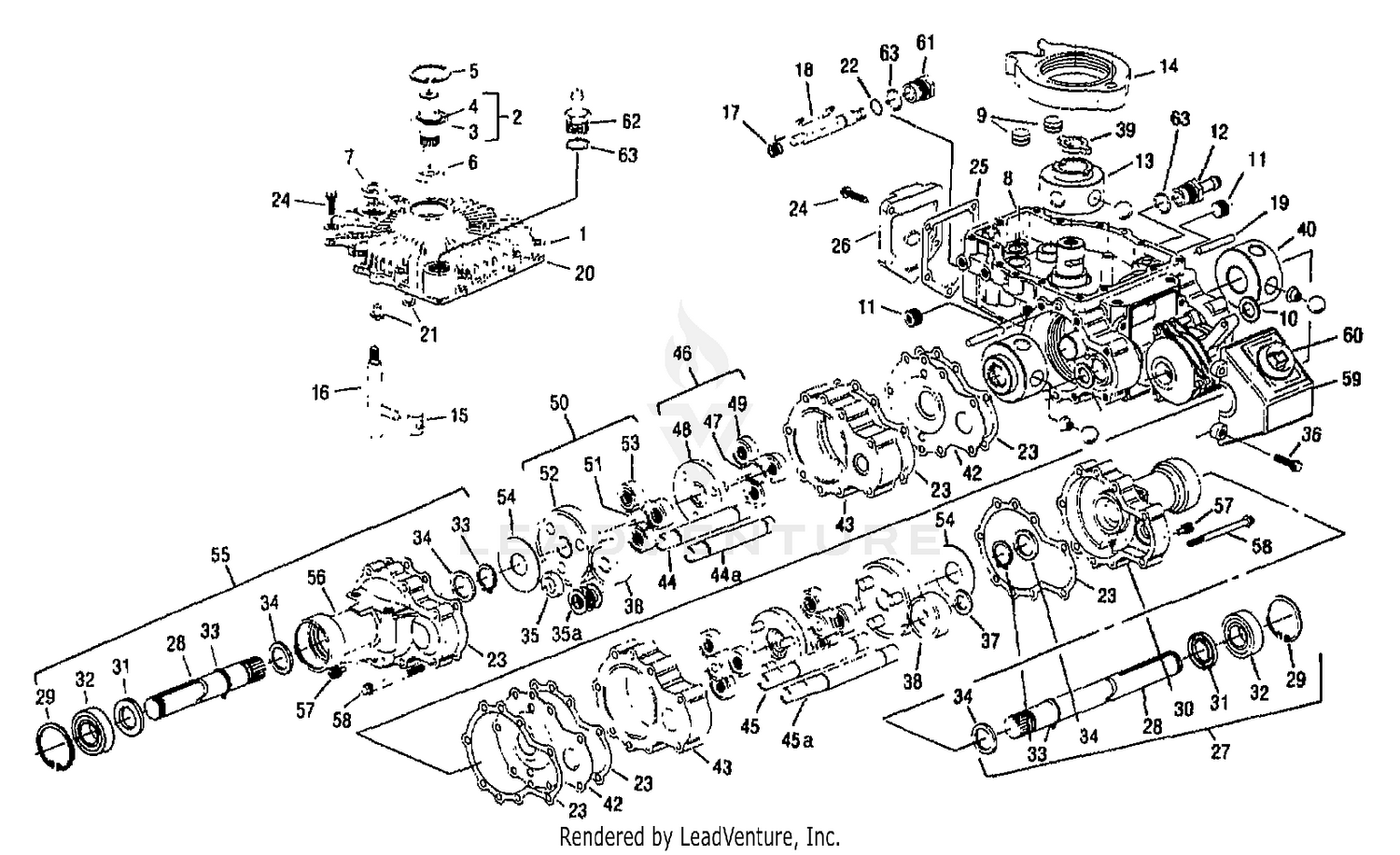

| Ref | Part Number | Description |
|---|
| 1 |
N/A |
Cover, Subassembly (S/A) |
| 2 |
N/A |
Shaft, Input, S/A |
| 3 |
N/A |
Bearing Input Shaft |
| 4 |
N/A |
Ring, Retaining, External |
| 5 |
1757372 |
RING, RETAINING, INTERNAL Not Available Price: |
| 6 |
1757373 |
SEAL INPUT Not Available Price: |
| 7 |
1757374 |
SEAL - CON Not Available Price: |
| 8 |
N/A |
Housing, S/A CW |
| 9 |
N/A |
Piston, Dampening, S/A |
| 10 |
N/A |
Seal, Brake Shaft |
| 11 |
N/A |
Plug. Socket Pipe |
| 12 |
N/A |
Adapter Reservoir, 3/8 I D Tube |
| 13 |
N/A |
Pump Rotor-Ball, S/A |
| 14 |
N/A |
Cam Ring, S/A |
| 15 |
N/A |
Insert |
| 16 |
N/A |
Control Shaft S/A |
| 17 |
1757375 |
SPRING - D Not Available Price: |
| 18 |
1757376 |
BRACKET-DUMP Not Available Price: |
| 19 |
N/A |
Dowel |
| 20 |
N/A |
Gasket, Cover |
| 21 |
N/A |
Button |
| 22 |
1757377 |
O-RING Not Available Price: |
| 23 |
N/A |
Gasket, Axle Housing |
| 24 |
N/A |
Screw, 1/4-20 Hex Flange |
| 25 |
1757378 |
GASKET Not Available Price: |
| 26 |
N/A |
Cover, Valve |
| 27 |
N/A |
Axle Housing, S/A-B |
| 28 |
N/A |
Shaft, Axle |
| 29 |
N/A |
Retaining Ring, Internal |
| 30 |
N/A |
Housing, Axle-B |
| 31 |
N/A |
Seal, Axle Shaft |
| 32 |
N/A |
Bearing, Axle Shaft |
| 33 |
N/A |
Retaining Ring External |
| 34 |
N/A |
Washer, Thrust |
| 35 |
N/A |
Spacer (Thick-PB) |
| 35A |
N/A |
Washer, Thrust (DUPE) |
| 36 |
N/A |
Screw, 1/4-20 Self Tap |
| 37 |
N/A |
Spacer (Thin-PB or DUPE) |
| 38 |
N/A |
Brake Gear |
| 39 |
N/A |
Drive |
| 40 |
N/A |
Motor Rotor-Ball, A & B S/A, 1 BT |
| 42 |
N/A |
Plate, Wear |
| 43 |
N/A |
Ring Gear, A & B S/A, 54T |
| 44 |
N/A |
Brake Shaft-A (PB) |
| 44A |
N/A |
Brake Shaft-A (DUPE) |
| 45A |
N/A |
Brake Shaft - B (DUPE) |
| 46 |
N/A |
Planetary Gear, First A & B S/A |
| 47 |
N/A |
Sun Gear, First, 18T |
| 48 |
N/A |
Primary Carrier, A & B S/A 18T |
| 49 |
N/A |
Pint Gear, A & B S/A, First, 1ST |
| 50 |
N/A |
Planetary Gear, Second, A & B S/A |
| 51 |
N/A |
Sun Gear, Second 18T |
| 52 |
N/A |
Secondary Carrier, A & B S/A |
| 53 |
N/A |
Pint Gear, A &sc B S/A, Second, 18T |
| 54 |
N/A |
Washer, Thrust |
| 55 |
N/A |
Axle Housing, S/A-A |
| 56 |
N/A |
Housing, Axle-A |
| 57 |
N/A |
Plug, Magnetic |
| 58 |
N/A |
Screw, 1/4-20 Hex Flange |
| 59 |
N/A |
Cover, (PB or DUPE) |
| 60 |
N/A |
Boot, Dust |
| 61 |
N/A |
Nut, Dump Valve |
| 62 |
N/A |
Adapter, Reservoir, 3/8 I D Tube |
| 63 |
1757381 |
O-RING Not Available Price: |
