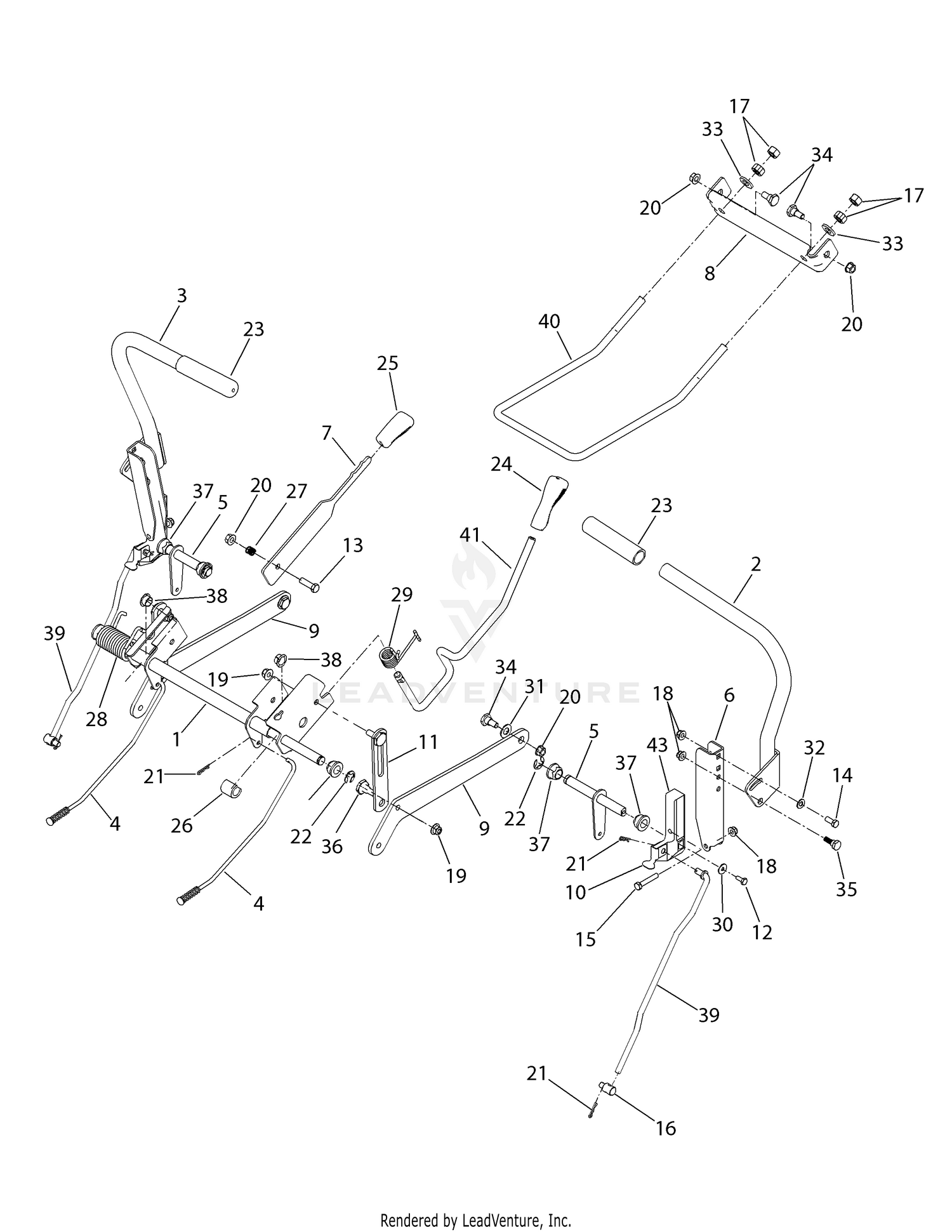

| Ref | Part Number | Description |
|---|
| 1 |
603-04160C-0637 |
Deck Lift Shift Assembly This part replaces 603-04160B. Price: $142.23 |
| 2 |
603-04387 |
LAPBAR HANDLE (RH) Not Available Price: |
| 3 |
603-04388 |
LAPBAR HANDLE (LH) Not Available Price: |
| 4 |
947-04065 |
Brake Rod Assembly This part replaces 647-04065. Price: $34.94 |
| 5 |
647-04099A |
Control Shaft This part replaces 647-04099. Price: $80.55 |
| 6 |
703-05387B |
Bracket, Lapbar Pivot Price: $24.72 |
| 7 |
703-05396A-0637 |
Brake/Shabs Assembly Not Available This part replaces 703-05396. Price: |
| 8 |
703-05414A |
Bracket, Deck Hangar Price: $46.96 |
| 9 |
703-05793A |
Arm, Deck Lift Price: $37.92 |
| 10 |
703-06096A |
Switch Actuator Bracket This part replaces 703-06096. Price: $9.41 |
| 11 |
703-06169-0637 |
Lift Link Plate This part replaces 703-06169. Price: $14.86 |
| 12 |
710-0433 |
Screw, Hex Cap Lock, 1/4-20 x .625 Gr5 Price: $4.02 |
| 13 |
710-3005 |
Screw, Hex Cap, 3/8-16 x 1.25 Gr5 Price: $3.61 |
| 14 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 15 |
710-3180 |
Screw, Hex Cap, 5/16-18 x 1.75 Gr5 Price: $4.93 |
| 16 |
911-0832 |
Ferrule, 3/8-24 x .375 This part replaces 711-0832. Price: $13.68 |
| 17 |
712-0208 |
Nut, Hex, 1/2-13 GR5 Price: Call Us |
| 18 |
712-04063 |
Nut, U Type Speed, 5/16-18 GrF Price: $3.56 |
| 19 |
712-04065 |
Nut, Hex Insert Flange Lock, 3/8-18 GrF Price: $3.68 |
| 20 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 21 |
714-0104 |
Pin, Internal Cotter Price: $3.90 |
| 23 |
720-0274 |
Grip, Lapbar Price: $9.99 |
| 24 |
720-0311 |
Grip, Handle Price: $13.26 |
| 25 |
731-04735 |
BRAKE HANDLE GRIP Price: $17.99 |
| 26 |
731-05732 |
SPACER .621 Not Available Price: |
| 27 |
732-0334 |
Spring, Compression, .5 x.5 Price: $3.38 |
| 28 |
732-04420 |
Spring, Torsion Price: $18.65 |
| 30 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 31 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces 7360272. Price: $4.37 |
| 32 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 33 |
736-3019 |
Washer, Flat, .531 x 1.062 x .134 HT Price: $5.45 |
| 34 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 35 |
738-0296 |
Screw, Shoulder, .437 x .268:5/16-18 Price: $3.93 |
| 36 |
738-0507B |
Screw, Shoulder, .5 x .434 Price: $3.86 |
| 37 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 38 |
741-3074 |
Bearing, Flange, .625 x .938 x .344 Price: $4.22 |
| 39 |
747-04225A |
Rod, Lapbar Control Not Available Price: |
| 40 |
747-04401A |
Rod, Deck Front Hanger Price: $51.78 |
| 41 |
747-04637 |
Rod, Deck Lift Handle Price: $45.33 |
