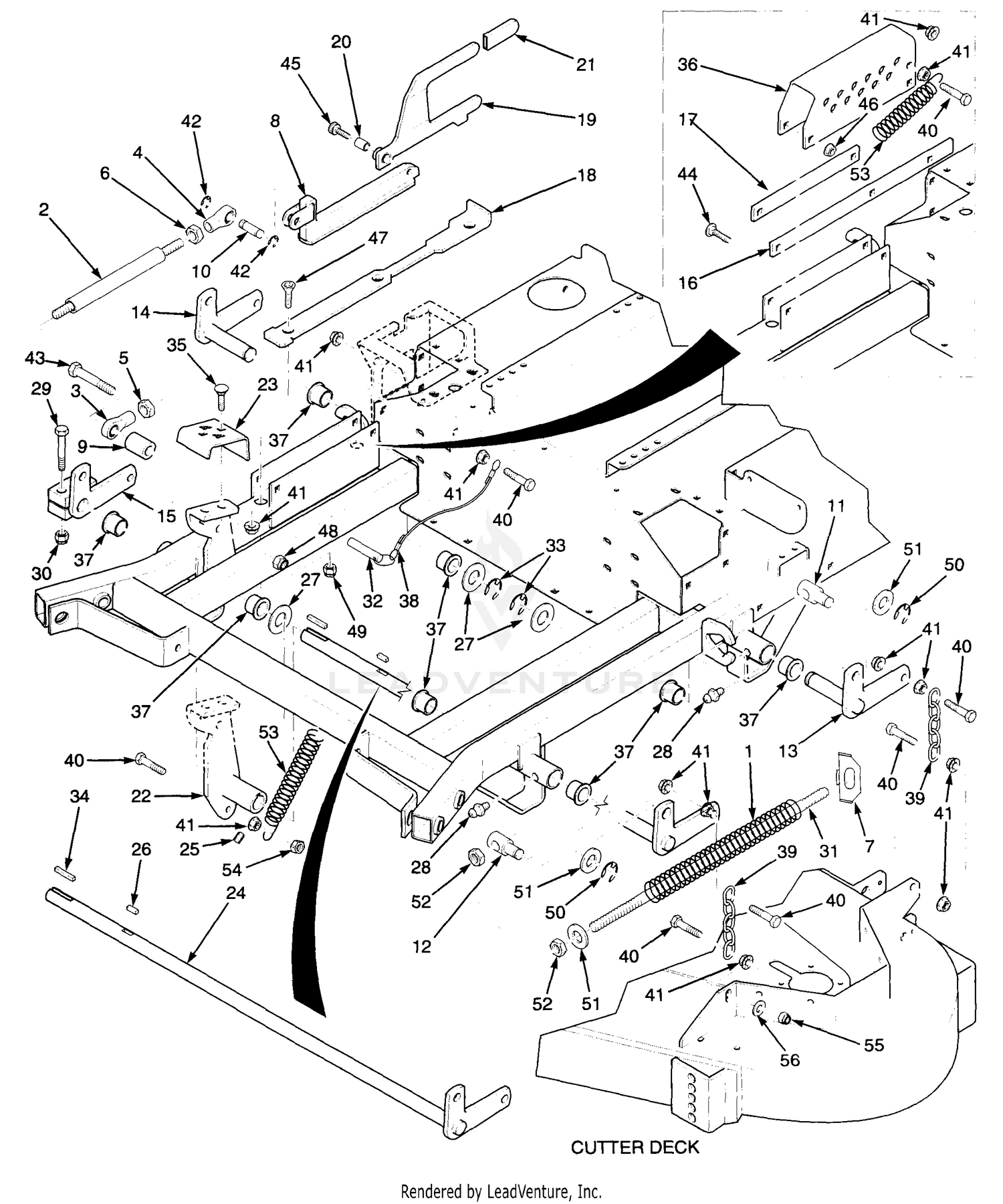

| Ref | Part Number | Description |
|---|
| 1 |
482418 |
SPRING, DECK LIFT This part replaces 481549. Price: Call Us |
| 2 |
481763 |
Link, Deck Lift Price: Call Us |
| 3 |
481765 |
Rod End, Female - 1/2-20 RH Price: Call Us |
| 4 |
481766 |
Rod End, Female - 1/2-20 LH Price: Call Us |
| 5 |
04020-27 |
Nut, Jam 1/2-20 RH Price: Call Us |
| 6 |
04020-28 |
Nut, Jam 1/2-20 LH Price: Call Us |
| 7 |
422800 |
Flatwasher, Spring Stop Price: Call Us |
| 8 |
481560 |
Slide Weldment, Height Adjustment Price: Call Us |
| 9 |
43391 |
Spacer, Decklift Pedal Price: Call Us |
| 10 |
43487 |
Pin, Decklift Price: Call Us |
| 11 |
43526 |
Swivel Joint, LH This part replaces 43472. Price: Call Us |
| 12 |
43527 |
Swivel Joint, RH This part replaces 43473. Price: Call Us |
| 13 |
45904 |
Bellcrank Weldment, LH Rear Price: Call Us |
| 14 |
45905 |
Bellcrank Weldment, RH Rear Price: Call Us |
| 15 |
45907 |
Bellcrank Weldment, RH Front Price: Call Us |
| 16 |
422381 |
Guide, Short Price: Call Us |
| 17 |
422380 |
Guide, Long Price: Call Us |
| 18 |
422346 |
Lockplate, Decklift Price: Call Us |
| 20 |
48100-14 |
Bushing, .502 ID Price: Call Us |
| 21 |
481428 |
Grip, Deck Latch Price: Call Us |
| 22 |
45945 |
Footplate Weldment, Decklift Price: Call Us |
| 23 |
422451 |
Footplate, Height Adjustment Price: Call Us |
| 24 |
45906 |
Bellcrank Weldment, LH Front Price: Call Us |
| 25 |
04012-09 |
Set Screw, 5/16-18 x 1/2" Sq. Head Price: Call Us |
| 26 |
04063-23 |
Key, 1/4 x 1/4 x 3-1/4” Price: Call Us |
| 27 |
04041-14 |
Flatwasher, 1" (1.062 x 1.50 x .048) Price: Call Us |
| 28 |
48114-04 |
Grease Fitting Price: Call Us |
| 29 |
04001-91 |
Bolt, Hex Head 7/16-14 x 2-1/2" Price: Call Us |
| 30 |
04021-11 |
Nut, Hex Elastic Stop 7/16-14 Price: Call Us |
| 31 |
04004-33 |
Stud, 5/8-11 x 22.0" Price: Call Us |
| 32 |
04067-05 |
Ring Pin, 1/2 x 3.30" Price: Call Us |
| 33 |
04050-08 |
Ring, Retaining 1" External "E" Price: Call Us |
| 34 |
04063-01 |
Key, 1/4 x 1/4 x 1-1/4" Price: Call Us |
| 35 |
04003-11 |
Bolt, Carriage 3/8-16 x 1-1/4" Price: Call Us |
| 36 |
422403 |
Bracket, Cutting Height Adjustment Price: Call Us |
| 37 |
48100-08 |
Bushing, 1.003 ID Price: Call Us |
| 38 |
481547 |
Lanyard, Deck Height Pin Price: Call Us |
| 39 |
48540 |
Chain Price: Call Us |
| 40 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 41 |
04019-04 |
Nut, Hex Serrated Flange 3/8-16 Price: Call Us |
| 42 |
04050-10 |
Ring, Retaining 1/2" External "E" Price: Call Us |
| 43 |
04001-74 |
Bolt, Hex Head 1/2-13 x 3" Price: Call Us |
| 44 |
04003-04 |
Bolt, Carriage 5/16-18 x 1" Price: Call Us |
| 45 |
04009-02 |
Bolt, Shoulder 1/2 x 3/4" Price: Call Us |
| 46 |
04019-03 |
Nut, Hex Serrated Flange 5/16-18 Price: Call Us |
| 47 |
04014-03 |
Screw, Cap 5/16-18 x 3" FHHS Price: Call Us |
| 48 |
04021-07 |
Nut, Hex Elastic Stop 1/2-13 Price: Call Us |
| 49 |
04021-10 |
Nut, Hex Elastic Stop 5/16-18 Price: Call Us |
| 50 |
04050-01 |
Ring, Retaining 5/8" External "E" Price: Call Us |
| 51 |
04040-09 |
Flatwasher, 5/8" (.656 x 1.312 x .095) Price: Call Us |
| 52 |
04020-09 |
Nut, Hex 5/8-11 Price: Call Us |
| 54 |
04021-05 |
Locknut, 3/8-16 Center Lock Price: Call Us |
| 55 |
04021-09 |
Nut, 3/8-16 Elastic Stop Price: Call Us |
