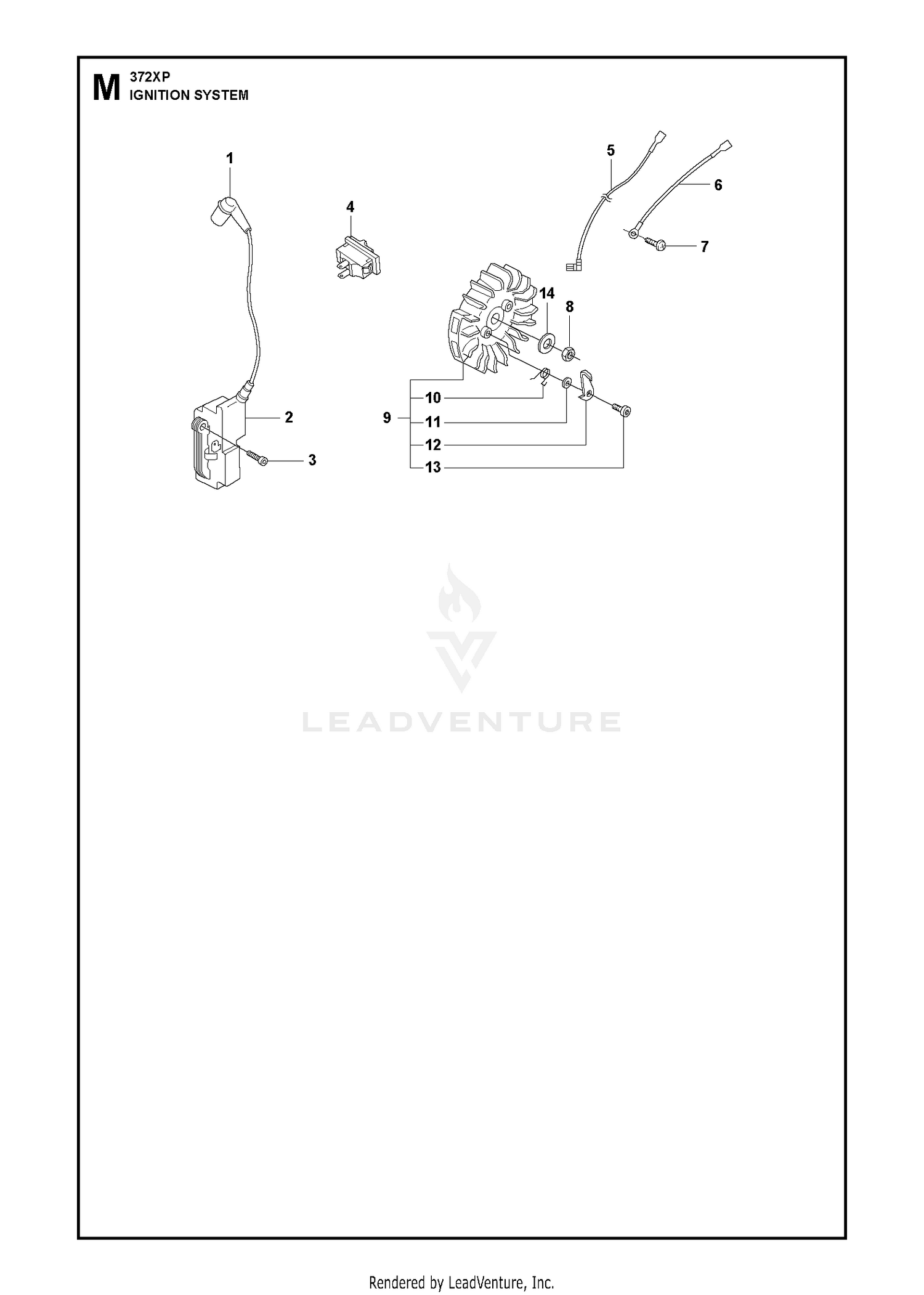

IGNITION SYSTEM
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 501485402 | SPARK PLUG CONN. KIT Price: $6.99 |
| 2 | 586880304 | IGNITION MODULE Price: $89.99 |
| 4 | 503718201 | START/STOP SWITCH Price: $11.99 |
| 5 | 503626101 | WIRE Price: $7.99 |
| 6 | 503897601 | CABLE Price: $4.99 |
| 7 | 525887402 | SCREW CITXPANT Price: $2.99 |
| 8 | 503221011 | NUT M8X1 Price: $3.99 |
| 9 | 537051605 | FLYWHEEL Price: $39.99 |
| 10 | 501673501 | SPRING Price: $3.99 |
| 11 | 503230042 | WASHER Price: $3.99 |
| 12 | 537015501 | PAWL Price: $5.99 |
| 13 | 501819901 | SCREW M5X14 This part replaces 506006901. Price: $2.99 |
| 14 | 503230101 | WASHER 8.4X16 Price: $3.99 |
