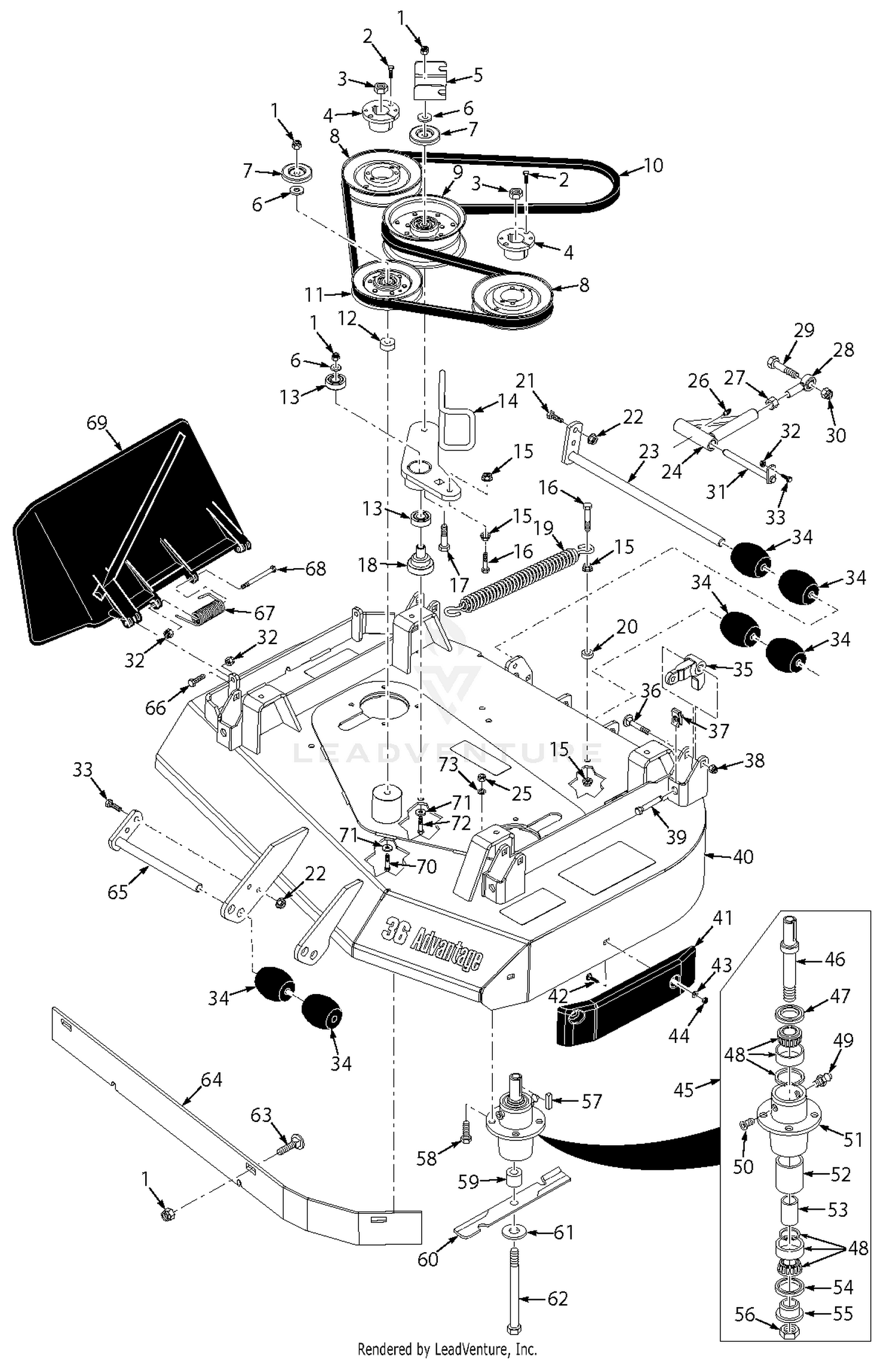

| Ref | Part Number | Description |
|---|
| 1 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 3 |
04020-09 |
Nut, 5/8-11 Price: Call Us |
| 4 |
48926 |
Tapered Locking Hub Price: Call Us |
| 5 |
424615 |
Bracket, Belt Guide Price: Call Us |
| 6 |
04043-04 |
Flatwasher, 3/8-.391 x .938 x .105 HD Price: Call Us |
| 7 |
424367 |
Dustshield Price: Call Us |
| 8 |
483284 |
Pulley, 5.73" Dia. Price: Call Us |
| 9 |
483210 |
Pulley, 5" Idler Price: Call Us |
| 10 |
486023 |
Belt, Cutter Deck This part replaces 485936. Price: Call Us |
| 11 |
48181 |
Pulley, Idler Price: Call Us |
| 12 |
43077 |
Spacer Price: Call Us |
| 13 |
48224 |
Bearing Price: Call Us |
| 15 |
04019-04 |
Nut, Serrated Flange 3/8-16 Price: Call Us |
| 17 |
04001-62 |
Bolt, Hex Head 3/8-16 x 3-1/4" Price: Call Us |
| 18 |
43816 |
Pivot, Idler Price: Call Us |
| 19 |
484020 |
Spring Price: Call Us |
| 20 |
43063 |
Spacer Price: Call Us |
| 21 |
04003-04 |
Bolt, Carriage 5/16-18 x 1" Price: Call Us |
| 22 |
04117-01 |
Nut, Flange Elastic Stop 5/16-18 Price: Call Us |
| 23 |
452236 |
Shaft Weldment Price: Call Us |
| 24 |
462323 |
Pusharm Assembly, LH Price: Call Us |
| 24 |
462324 |
Pusharm Assemblly, RH Price: Call Us |
| 26 |
48114-08 |
Grease Fitting, 90 Degree Price: Call Us |
| 27 |
04020-16 |
Nut, 5/16-18 UNF Price: Call Us |
| 28 |
48763 |
Rod End, 5/8 - Male RH Price: Call Us |
| 29 |
04001-79 |
Bolt, Hex Head 5/8-11 x 4-1/2" Price: Call Us |
| 30 |
04021-13 |
Nut, Elastic Stop 5/8-11 Price: Call Us |
| 31 |
451724 |
Shaft Weldment, Pusharm Mounting Price: Call Us |
| 32 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 33 |
04001-09 |
Bolt, Hex Head 5/16-18 x 1" Price: Call Us |
| 34 |
482295 |
Wheel, Anti-Scalp Price: Call Us |
| 35 |
485528 |
Lever, Deck Level Price: Call Us |
| 36 |
04003-42 |
Bolt, Carriage 7/16-14 x 2-1/4" Price: Call Us |
| 37 |
04110-03 |
U-Nut, 3/8-16 Price: Call Us |
| 38 |
04021-11 |
Nut, Elastic Stop 7/16-14 Price: Call Us |
| 39 |
04107-04 |
Bolt, Hex Head 3/8-16 x 2" Special Lock Price: Call Us |
| 40 |
462986 |
Cutter Deck w/Decals Price: Call Us |
| 41 |
483174 |
Pad, Wear Price: Call Us |
| 42 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 43 |
04040-04 |
Flatwasher, 5/16-.344 x .688 x .065 Price: Call Us |
| 44 |
04021-04 |
Nut, Center Lock, 5/16-18(32) Price: Call Us |
| 45 |
461663 |
Spindle Assembly Price: Call Us |
| 46 |
43589 |
Spindle Shaft Price: Call Us |
| 47 |
481024 |
Seal, Cutter Spindle Price: Call Us |
| 48 |
481022 |
Bearing, Tapered Price: Call Us |
| 49 |
48114-04 |
Grease Fitting Price: Call Us |
| 50 |
48677 |
Relief Fitting, Cutter Spindle Price: Call Us |
| 51 |
43644 |
Spindle Housing Price: Call Us |
| 52 |
43312 |
Spacer, Outside Price: Call Us |
| 53 |
43296 |
Spacer, Inside Price: Call Us |
| 54 |
481025 |
Seal, Cutter Spindle Price: Call Us |
| 55 |
43297 |
Spindle Bushing Price: Call Us |
| 56 |
481035 |
Nut, 1.06 - 18 Price: Call Us |
| 57 |
04063-08 |
Key, 1/4 x 1/4 x 2" Price: Call Us |
| 59 |
43590 |
Spacer, Spindle Bottom Price: Call Us |
| 60 |
482878 |
Cutter Blade, 18" (52H) Price: Call Us |
| 61 |
04043-06 |
Flatwasher, 5/8-.688 x 1.75 x .134 HD Price: Call Us |
| 62 |
04001-41 |
Bolt, Hex Head 5/8-11 x 9-1/2" Price: Call Us |
| 63 |
04003-23 |
Bolt, Carriage 3/8-16 x 1" Price: Call Us |
| 64 |
423783 |
Baffle, Flange - 36A Price: Call Us |
| 65 |
451926 |
Shaft Weldment Price: Call Us |
| 66 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-3/4" Price: Call Us |
| 67 |
482245 |
Spring, Discharge Chute Price: Call Us |
| 68 |
04001-154 |
Bolt, Hex Head 5/16-18 x 4-3/4" Price: Call Us |
| 69 |
461295 |
Discharge Chute Assy. Price: Call Us |
| 69 |
462469 |
Discharge Chute Assy. (CA) Price: Call Us |
| 70 |
04001-198 |
Bolt, Hex Head 3/8-16 x 4-3/4" Price: Call Us |
| 71 |
04041-11 |
Flatwasher, 3/8-.406 x 1.50 x .179 Price: Call Us |
| 72 |
04001-62 |
Bolt, Hex Head 3/8-16 x 3-1/4" Price: Call Us |
