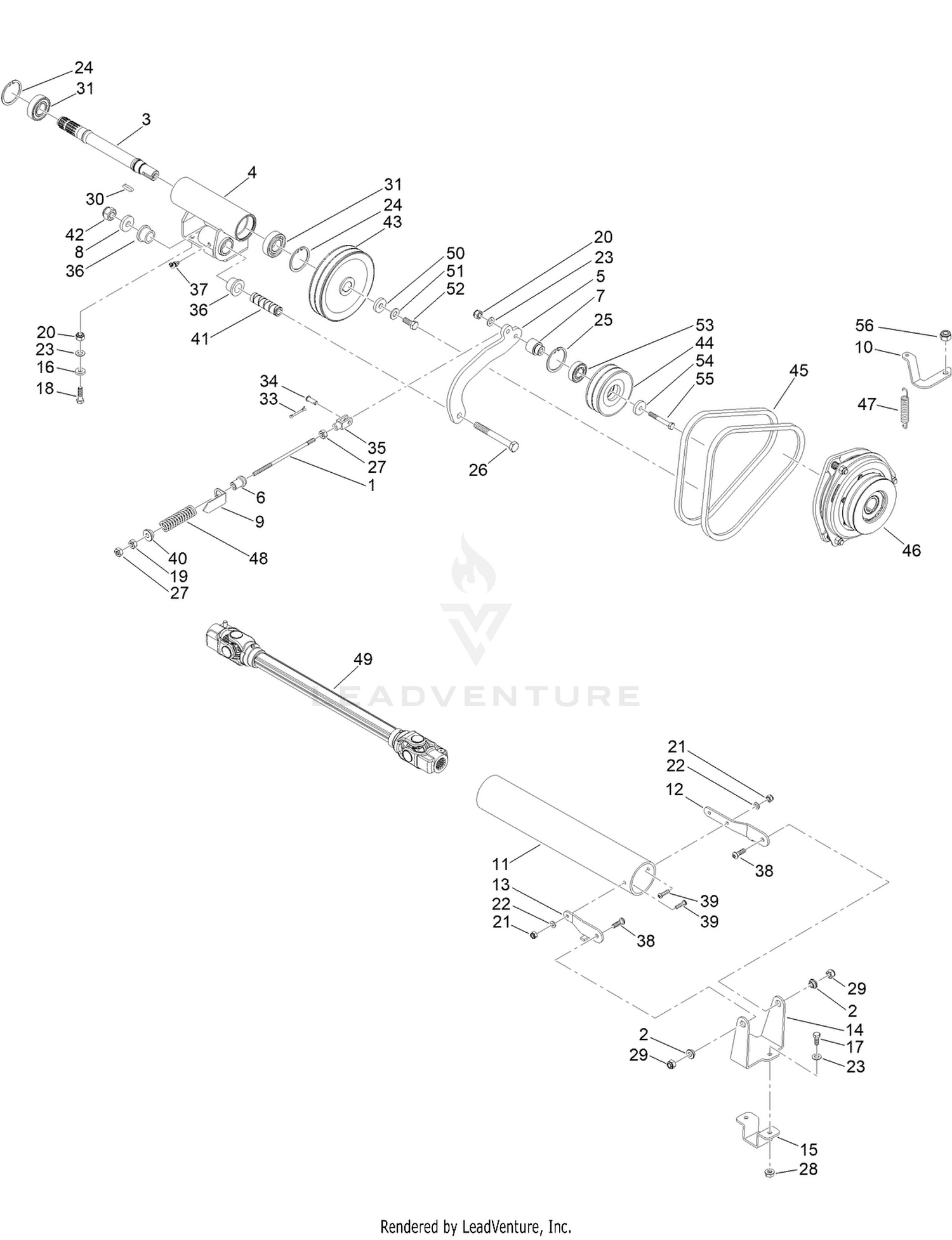

Transmission, PTO and Drive Shaft Assembly
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 134-0701 | ROD Price: $12.78 |
| 2 | 134-0729 | BUSHING Price: $4.06 |
| 3 | 134-0779 | SHAFT Price: $85.86 |
| 4 | 134-0780 | FLANGE-DUST Price: $187.91 |
| 5 | 134-0782 | LEVER-BELT TENSIONER Price: $20.28 |
| 6 | 134-0783 | PIN-GUIDE, NYLON Price: $10.91 |
| 7 | 134-0784 | BUSHING Price: $12.12 |
| 8 | 134-0866 | WASHER Price: $4.79 |
| 9 | 134-0893 | SPRING-BELT TENSION INDICATOR Price: $5.06 |
| 10 | 134-0919 | BRACKET Price: $7.26 |
| 11 | 134-0967 | TUBE-PROTECTOR, POLYETHYLENE Price: $13.46 |
| 12 | 134-0968 | BRACKET Price: $8.40 |
| 13 | 134-0969 | BRACKET Price: $8.40 |
| 14 | 134-0970 | FORK Price: $15.13 |
| 15 | 134-0971 | BRACKET Price: $9.26 |
| 16 | 134-0997 | WASHER Price: $4.55 |
| 17 | 134-1011 | SCREW Price: $0.32 |
| 18 | 134-1012 | SCREW Price: $0.32 |
| 19 | 134-1034 | NUT Price: $0.25 |
| 20 | 134-1038 | NUT Price: $0.32 |
| 21 | 134-1042 | NUT Price: $0.25 |
| 22 | 134-1044 | WASHER Price: $0.25 |
| 23 | 134-1045 | WASHER Price: $0.25 |
| 24 | 134-1057 | RING-RETAINING, INT Price: $1.98 |
| 25 | 134-1058 | RING-RETAINING, INT Price: $1.33 |
| 26 | 134-1075 | SCREW Price: $3.60 |
| 27 | 134-1078 | NUT Price: $0.25 |
| 28 | 134-1082 | NUT Price: $0.36 |
| 29 | 134-1092 | NUT Price: $0.25 |
| 30 | 134-1100 | KEY-SHAFT Price: $1.28 |
| 31 | 134-1105 | BEARING Price: $50.93 |
| 33 | 134-1132 | PIN-SPRING Price: $0.25 |
| 34 | 134-1236 | PIN Price: $3.92 |
| 35 | 134-1239 | FORK Price: $5.66 |
| 36 | 134-1249 | BUSHING Price: $14.20 |
| 37 | 134-1258 | FITTING-GREASE Price: $2.88 |
| 38 | 134-1302 | SCREW Price: $0.64 |
| 39 | 134-1311 | SCREW Price: $0.53 |
| 40 | 134-1349 | GUIDE-SPRING Price: $2.03 |
| 41 | 134-1351 | SPACER Price: $17.33 |
| 42 | 134-2969 | NUT Price: $0.51 |
| 43 | 134-0622 | PULLEY Price: $94.15 |
| 44 | 134-1365 | PULLEY Price: $40.63 |
| 45 | 134-0577 | BELT-PTO Price: $47.55 |
| 46 | 134-0578 | CLUTCH Price: $688.04 |
| 47 | 134-1364 | SPRING-CLUTCH Price: $2.66 |
| 48 | 134-0618 | SPRING Price: $7.15 |
| 49 | 134-0619 | JOINT-UNIVERSAL This part replaces 134-6309. Price: $360.24 |
| 50 | 134-1337 | WASHER Price: $5.45 |
| 51 | 134-1051 | WASHER Price: $0.32 |
| 52 | 134-1018 | SCREW Price: $0.78 |
| 53 | 134-1107 | BEARING Price: $9.15 |
| 54 | 134-1355 | WASHER Price: $4.91 |
| 55 | 134-1024 | SCREW Price: $1.10 |
