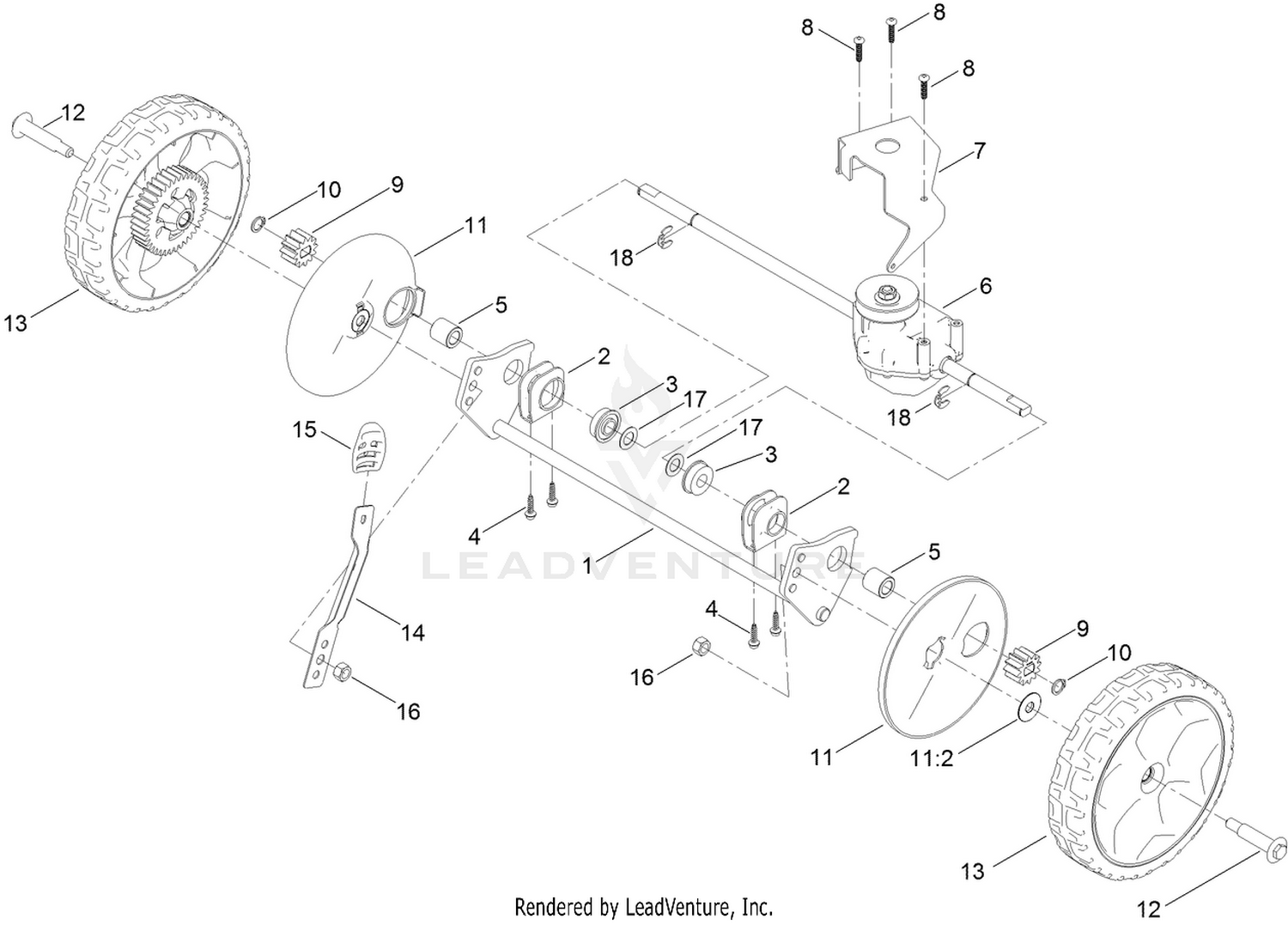

Rear Wheel and Height-of-Cut Assembly
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 127-0708-03 | AXLE-REAR Price: $21.91 |
| 2 | 138-3234 | RETAINER-BEARING Price: $2.09 |
| 3 | 104-8699 | BEARING-BALL Price: $3.28 |
| 4 | 127-6831 | SCREW-HWH Price: $0.43 |
| 5 | 127-6896 | BUSHING-SLEEVE Price: $2.18 |
| 6 | 131-0881 | TRANSMISSION Price: $69.97 |
| 7 | 114-7977-03 | BRACKET-TRANSMISSION Price: $8.85 |
| 8 | 108-7476 | SCREW-PLASTITE Price: $0.61 |
| 9 | 115-4668 | GEAR-PINION Price: $9.95 |
| 10 | 32151-61 | RING-RETAINING Price: $2.39 |
| 11 | 127-6840 | WHEEL COVER ASM Price: $4.37 |
| 12 | 92-1057 | BOLT-SHOULDER Price: $3.05 |
| 14 | 127-0711 | ARM-SPRING Price: $4.36 |
| 15 | 105-3042 | KNOB-LEVER, HOC Price: $3.28 |
| 16 | 603773 | LOCKNUT Price: $2.09 |
| 17 | 36-4780 | WASHER-PLAIN Price: $6.59 |
