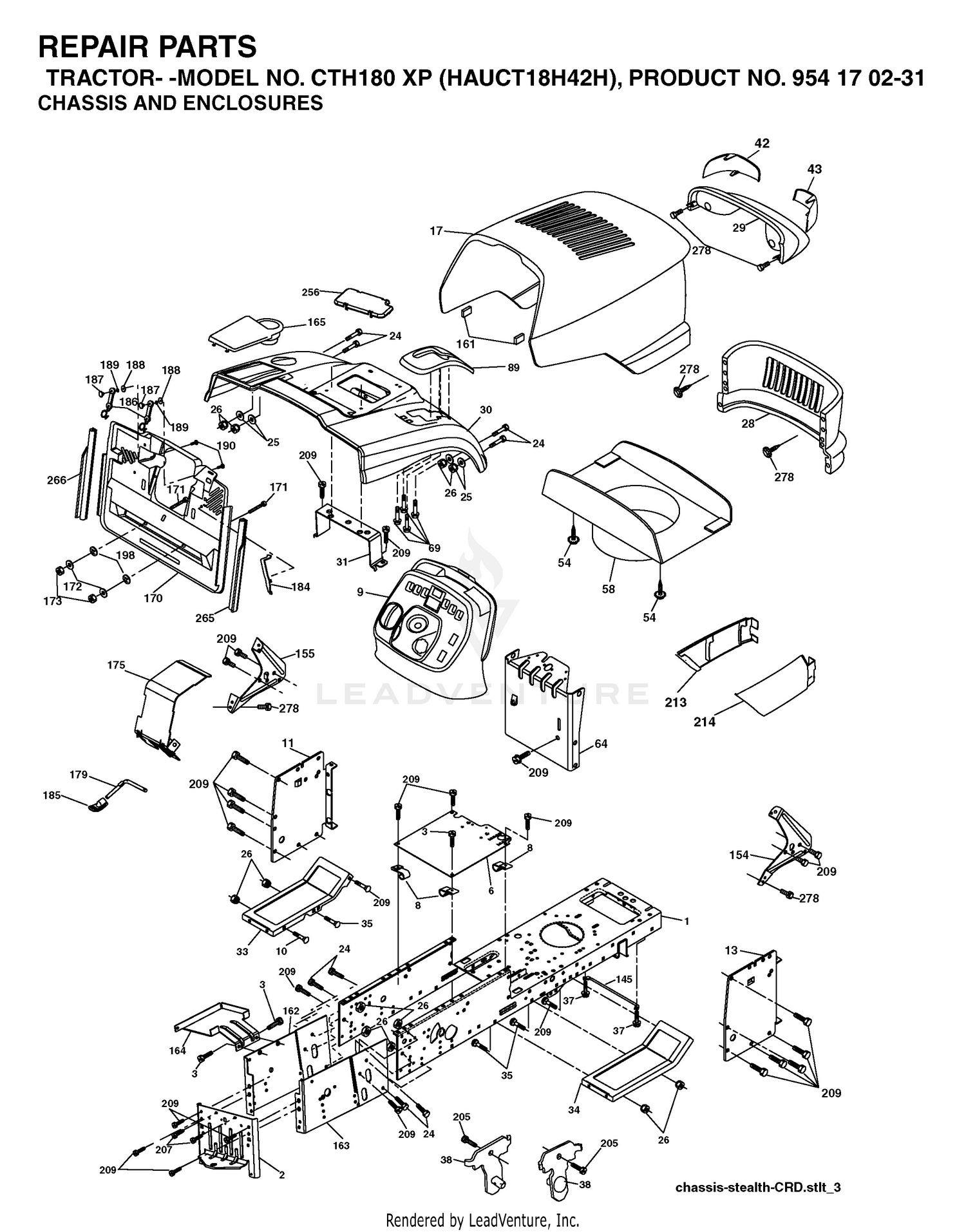

| Ref | Part Number | Description |
|---|
| 1 |
324-5 |
SCREW-HH Price: $0.54 |
| 1 |
532174620 |
CHASSIS Price: $119.99 |
| 2 |
110-0413 |
SEATBELT-RETRACTABLE Price: $286.99 |
| 2 |
583101001 |
DRAWBAR.CRD This part replaces 532180384. Price: $64.99 |
| 3 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 3 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 4 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 5 |
121-5071-03 |
BRACKET-SEAT BELT, RH Price: $50.85 |
| 6 |
121-5072-03 |
BRACKET-SEAT BELT, LH Price: $50.85 |
| 6 |
583133601 |
SADDLE.FLAT.LT/YT/CRD.2003 This part replaces 532184419. Price: $12.99 |
| 7 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 8 |
532126471 |
CLIP,INSULATOR Price: $3.99 |
| 9 |
132-7667-03 |
BASE-CONSOLE Price: $126.04 |
| 9 |
532193624 |
DASH This part replaces 532195886. Price: $50.99 |
| 10 |
32128-20 |
NUT-HF Price: $0.99 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
130-7107-01 |
PANEL-FRONT, SEATBASE Price: $70.65 |
| 11 |
532167203 |
PANEL DASH LH Price: $19.99 |
| 12 |
130-7132 |
BARRIER-NOISE, ACCESS PANEL Price: $23.23 |
| 13 |
130-7135 |
BARRIER-NOISE, FRONT PANEL Price: $55.91 |
| 14 |
131-3282 |
TRIM Price: $30.54 |
| 15 |
130-7104 |
PANEL-SEATBASE, RH Price: $87.43 |
| 17 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 17 |
532188208 |
HOOD.ASM.STEALTH.STV.2004 This part replaces 532190055. Price: $149.99 |
| 18 |
107-8729-0P |
SUPPORT-RH This part replaces 107-8729-03. Price: $66.58 |
| 20 |
106-5286-03 |
SHROUD-ENGINE Price: $251.25 |
| 22 |
119-5025-0P |
ANGLE-SEAT BOX This part replaces 119-5025-03. Price: $62.58 |
| 23 |
95-2264-03 |
STRAP-SUPPORT, BELT Price: $31.02 |
| 24 |
131-5788 |
LH SEAT BOX PANEL ASM Price: $156.06 |
| 24 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 25 |
132-7705-03 |
RETAINER-HARNESS, BASE Price: $10.99 |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 26 |
237-141 |
GROMMET-RUBBER Price: $2.39 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 27 |
3230-3 |
SCREW-CARR Price: $0.53 |
| 28 |
119-4012 |
SCREW-HWHTF Price: $0.61 |
| 28 |
532182873 |
GRILLE.STEALTH P/L.YTGT.GREY Price: $169.99 |
| 29 |
532188212 |
LIGHTBOX.ASM.STV.DL.INC.HUSQ Price: $89.99 |
| 30 |
532197376 |
CONSOLE.CRD.AUTO.GRY Price: $8.99 |
| 31 |
130-7119-01 |
PANEL-ACCESS, SEATBASE Price: $48.14 |
| 31 |
532165156 |
BRACKET SUPPORT FENDER Price: $5.99 |
| 32 |
107-8730-0P |
SUPPORT-LH This part replaces 107-8730-03. Price: $66.58 |
| 33 |
532182507 |
FOOTREST.LH.BLACK This part replaces 532181057. Price: $37.99 |
| 34 |
2412-72 |
CLIP-CLOSED, INSULATED Price: $1.90 |
| 34 |
532182508 |
FOOTREST.RH.BLACK This part replaces 532181058. Price: $22.99 |
| 35 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 35 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 36 |
104-7201 |
NUT-HF Price: $0.69 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
3234-36 |
SCREW-HHF Price: $0.75 |
| 38 |
583117401 |
BRACKET ARM.PIVOT.REAR This part replaces 532181748. Price: $9.99 |
| 54 |
532192512 |
SCREW.WSHD.HEX10-32X5/8 Price: $4.99 |
| 58 |
532189876 |
NEEDS DESCRIPTION Price: Call Us |
| 64 |
532184340 |
DASH.LOWER.YT.2003 Price: $19.99 |
| 69 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 89 |
532441574 |
CONSOLE.CRD.AUTO.GRY This part replaces 532197377. Price: $8.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 154 |
532183925 |
Price: Call Us |
| 155 |
532183926 |
Price: Call Us |
| 161 |
532164655 |
EXTRUSION BUMPER (3 2) (2 2) Price: $5.99 |
| 162 |
583100801 |
BRKT.EXTEN.CHASSIS.LH.CRD This part replaces 532180382. Price: $48.99 |
| 163 |
583100901 |
BRKT.EXTEN.CHASSIS.RH.CRD This part replaces 532180383. Price: $43.99 |
| 164 |
532165605 |
SUPPORT Price: $59.99 |
| 165 |
532441516 |
COVER.BATT.CUPHOLDER.CRD This part replaces 532181100. Price: $17.99 |
| 170 |
532178862 |
NEEDS DESCRIPTION Price: Call Us |
| 171 |
596337801 |
Bolts This part replaces 872140620. Price: $4.99 |
| 172 |
596134901 |
GSPH This part replaces 819132016. Price: $2.99 |
| 173 |
873510600 |
NUT Price: $4.99 |
| 175 |
583707801 |
DOOR.TRAP.FBI.CRD.2004 This part replaces 532188203. Price: $17.99 |
| 179 |
583100601 |
ROD.PIVOT.FBI.CRD This part replaces 532188202. Price: $17.99 |
| 184 |
532174662 |
BRACKET.ACTUATOR.BAGGER.SRD Price: $4.99 |
| 185 |
532181101 |
Price: Call Us |
| 186 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532160793. Price: $5.99 |
| 187 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 188 |
819061216 |
WASHER Price: $3.99 |
| 189 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 190 |
596039001 |
Screws This part replaces 871081010. Price: $2.99 |
| 198 |
532168937 |
NUT Price: $2.99 |
| 205 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 213 |
532177587 |
SKIRT GRILLE LH Price: $23.99 |
| 214 |
532177586 |
SKIRT GRILLE RH Price: $37.99 |
| 256 |
532181361 |
COVER FENDER CRD Price: $3.99 |
| 258 |
583125201 |
KIT.HARNESS/LIGHT ASM DUAL This part replaces 532161842. Price: $109.99 |
| 259 |
583125201 |
KIT.HARNESS/LIGHT ASM DUAL This part replaces 532161841. Price: $109.99 |
| 265 |
583146701 |
SEAL.SIDE.RH.BAGGER.CRD This part replaces 532185704. Price: $17.99 |
| 266 |
583146601 |
SIDE.SEAL.LH.BAGGER.CRD This part replaces 532185703. Price: $17.99 |
| 278 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 279 |
532188210 |
NEEDS DESCRIPTION Price: Call Us |
