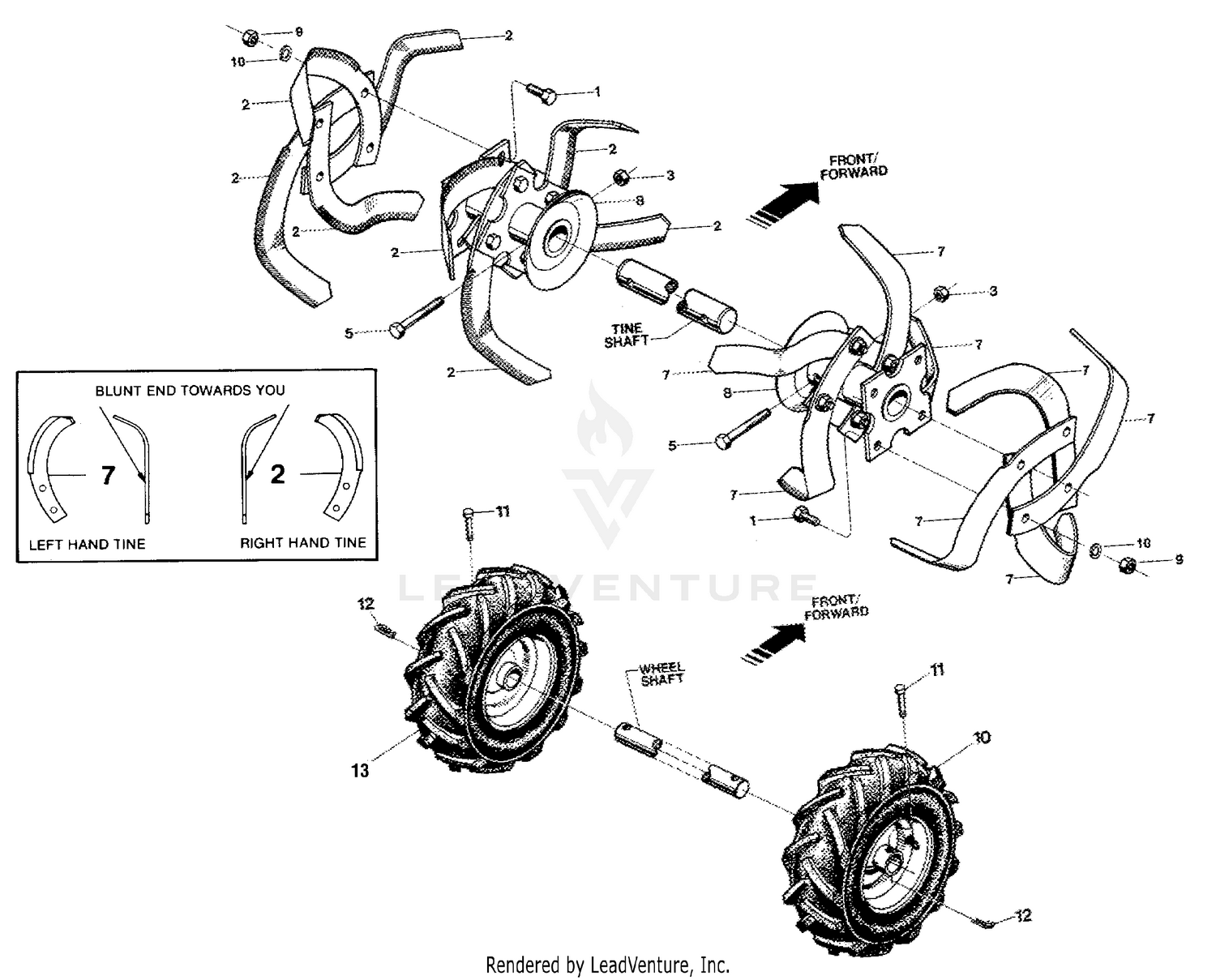

Tines & Wheels
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 712-0375 | Hex Locknut, 3/8-16 Price: $4.02 |
| 5 | 710-3096 | Hex Hd. Screw, 3/8-16 x 2, GRADE 8 Price: $7.03 |
| 8 | 686-04067-0638 | Tine Holder Not Available This part replaces 1902154010. Price: |
| 9 | 712-3017 | HEX NUT 3/8-16 GR5 Price: $3.90 |
| 10 | 736-0169 | Lock Washer, 3/8 Price: $3.33 |
| 11 | 711-04126 | Clevis Pin This part replaces GW-9380. Price: $3.64 |
| 12 | 714-04048 | PIN - hair cotter This part replaces GW-9338. Price: $7.04 |
