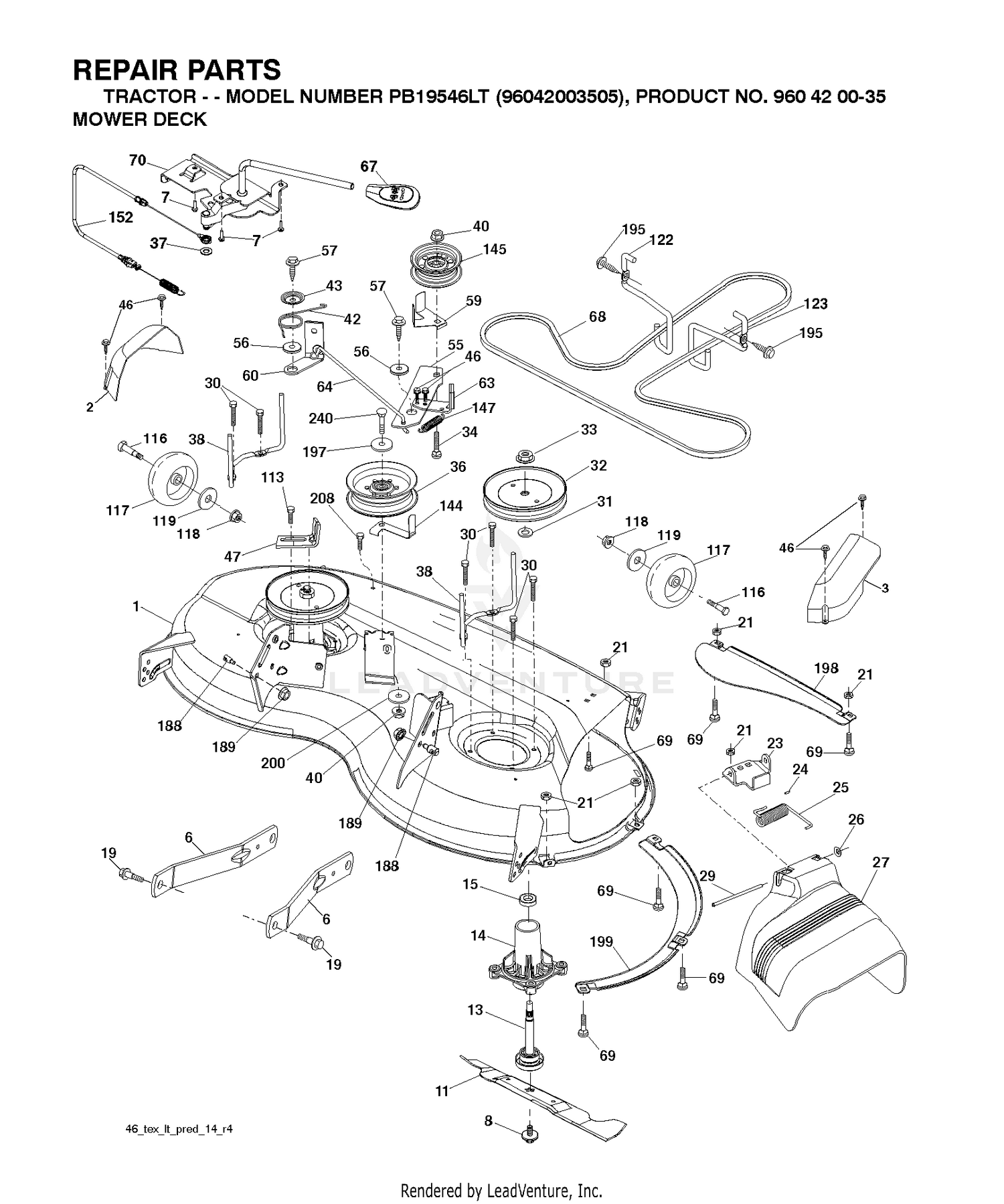

| Ref | Part Number | Description |
|---|
| 1 |
3296-60 |
NUT-LOCK, NI Price: $5.08 |
| 1 |
532409782 |
DECK.WLDMNT.46".2GWB.BLACK This part replaces 532405050. Price: $329.99 |
| 1A |
31347 |
SHAFT & LEV Price: Call Us |
| 2 |
104-3546 |
PULLEY-DRIVEN, LOW Price: $163.56 |
| 2 |
30357 |
SCREW Price: $2.62 |
| 3 |
31617 |
SHUTTER Price: Call Us |
| 4 |
119-4775 |
SPINDLE HOUSING ASM Price: $244.67 |
| 4B |
31374 |
SHAFT & LEV Price: Call Us |
| 5 |
138-6416 |
SPACER-SPINDLE, SHAFT This part replaces 69-6950. Price: $18.44 |
| 5 |
31375 |
RET SPRING Price: Call Us |
| 6 |
104-3554 |
SHAFT-SPINDLE Price: $67.98 |
| 6 |
532195186 |
ARM.SUSPENSION.MOWER.R Price: $8.99 |
| 6 |
650399 |
SCREW This part replaces 630605. Price: $1.20 |
| 7 |
104-8322 |
WASHER-HARDENED Price: $23.22 |
| 7 |
27112 |
IDLE SCREW Price: $1.26 |
| 7 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 8 |
27114 |
SPRING Price: $2.62 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 8A |
27114 |
SPRING Price: $2.62 |
| 10 |
30927 |
SHUTTER Price: Call Us |
| 11 |
30356 |
GASKET Price: $2.22 |
| 11 |
532403107 |
BLADE, 46" MULCH Price: $12.99 |
| 12 |
27108 |
GASKET Price: Call Us |
| 13 |
29154 |
INLET NEEDLE Price: Call Us |
| 13 |
587253301 |
MANDREL.NONGREASEABLE.TALL This part replaces 532192872. Price: $32.99 |
| 14 |
30354 |
FLOAT Price: Call Us |
| 14 |
532187281 |
HOUSING.MANDREL.4PT. Price: $22.99 |
| 15 |
27106 |
FLOAT SHAFT Price: $2.04 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 16 |
27136A |
DRAIN ASSY This part replaces 27136. Price: $5.96 |
| 17 |
32131 |
FLOAT BOWL This part replaces 30350. Price: $11.15 |
| 18 |
27136A |
DRAIN ASSY This part replaces 27137. Price: $5.96 |
| 19 |
27136A |
DRAIN ASSY This part replaces 27138. Price: $5.96 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $4.99 |
| 20 |
27110A |
GASKET This part replaces 27110. Price: $1.45 |
| 21 |
28945 |
POWER SCREW Price: $18.86 |
| 21 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 22 |
630786 |
SPRING Price: $1.25 |
| 23 |
31618 |
NOZZLE Price: Call Us |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $3.99 |
| 24 |
27113 |
SPRING Price: $2.62 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 25 |
27554 |
GASKET Price: $1.05 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $5.99 |
| 26 |
27544 |
O RING Price: $1.26 |
| 26 |
532110452 |
NUT PUSH M Price: $1.99 |
| 27 |
532405357 |
SHIELD.DEFLECTOR.MOWER.46"BLAC This part replaces 531405357. Price: $44.99 |
| 27 |
650506 |
SCREW This part replaces 630606. Price: $0.87 |
| 28 |
30815 |
BAFFLE Price: Call Us |
| 29 |
30817 |
SCREW Price: Call Us |
| 29 |
532131491 |
ROD.HINGE Price: $1.99 |
| 30 |
31352 |
RET SPRING Price: Call Us |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $1.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 32 |
532195945 |
PULLEY.MANDREL.5.438.P This part replaces 532197473. Price: $7.99 |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 34 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 36 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $14.99 |
| 37 |
819131316 |
WASHER Price: $2.99 |
| 38 |
532432520 |
KEEPER.BELT.MANDREL.PULLEY Price: $5.99 |
| 40 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 42 |
532198410 |
SPRING.TORSION.BRAKE Price: $2.99 |
| 43 |
532197256 |
SRPING.TORSION.RETAINE Price: $2.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 47 |
532197250 |
BRKT.CLUTCH.CABLE Price: $2.99 |
| 55 |
532197249 |
IDLER.ARM Price: $3.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $3.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 60 |
532199471 |
ARM BRAKE MOWER RH 38" Price: $11.99 |
| 63 |
532199478 |
ARM.BRAKE.ZINC This part replaces 532199477. Price: $12.99 |
| 64 |
532405139 |
LINKAGE.ASM.BRAKE.CLEAR.ZINC This part replaces 532405138. Price: $22.99 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $7.99 |
| 68 |
584453101 |
V-BELT.DRIVE.MWR.MECHANICL.46" This part replaces 532405143. Price: $32.99 |
| 69 |
872140505 |
BOLT Price: $2.99 |
| 70 |
532198332 |
CLUTCH.ASM.MANUAL.LT.TEX Price: $54.99 |
| 113 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $3.99 |
| 116 |
532004898 |
BOLT This part replaces 532124842. Price: $1.99 |
| 117 |
589527401 |
WHEEL.GAUGE.RALLY.NARROW This part replaces 532188606. Price: $2.99 |
| 118 |
873680600 |
LOCKNUT This part replaces 873930600. Price: $1.99 |
| 119 |
734117201 |
WASHER This part replaces 819121414. Price: $1.99 |
| 144 |
532199204 |
KEEPER.BELT.MOWER Price: $3.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $14.99 |
| 147 |
532401872 |
SPRING RETURN Price: $2.99 |
| 152 |
532435111 |
CABLE.CLUTCH.MANUAL. Price: $19.99 |
| 188 |
532195161 |
STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 189 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 195 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 197 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 198 |
532403149 |
BAFFLE CENTER FRONT Price: $11.99 |
| 199 |
532403150 |
BAFFLE FRONT RH Price: $11.99 |
| 200 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD Price: $2.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $2.99 |
| 240 |
874520636 |
BOLT-HEX EAK Price: $3.99 |
