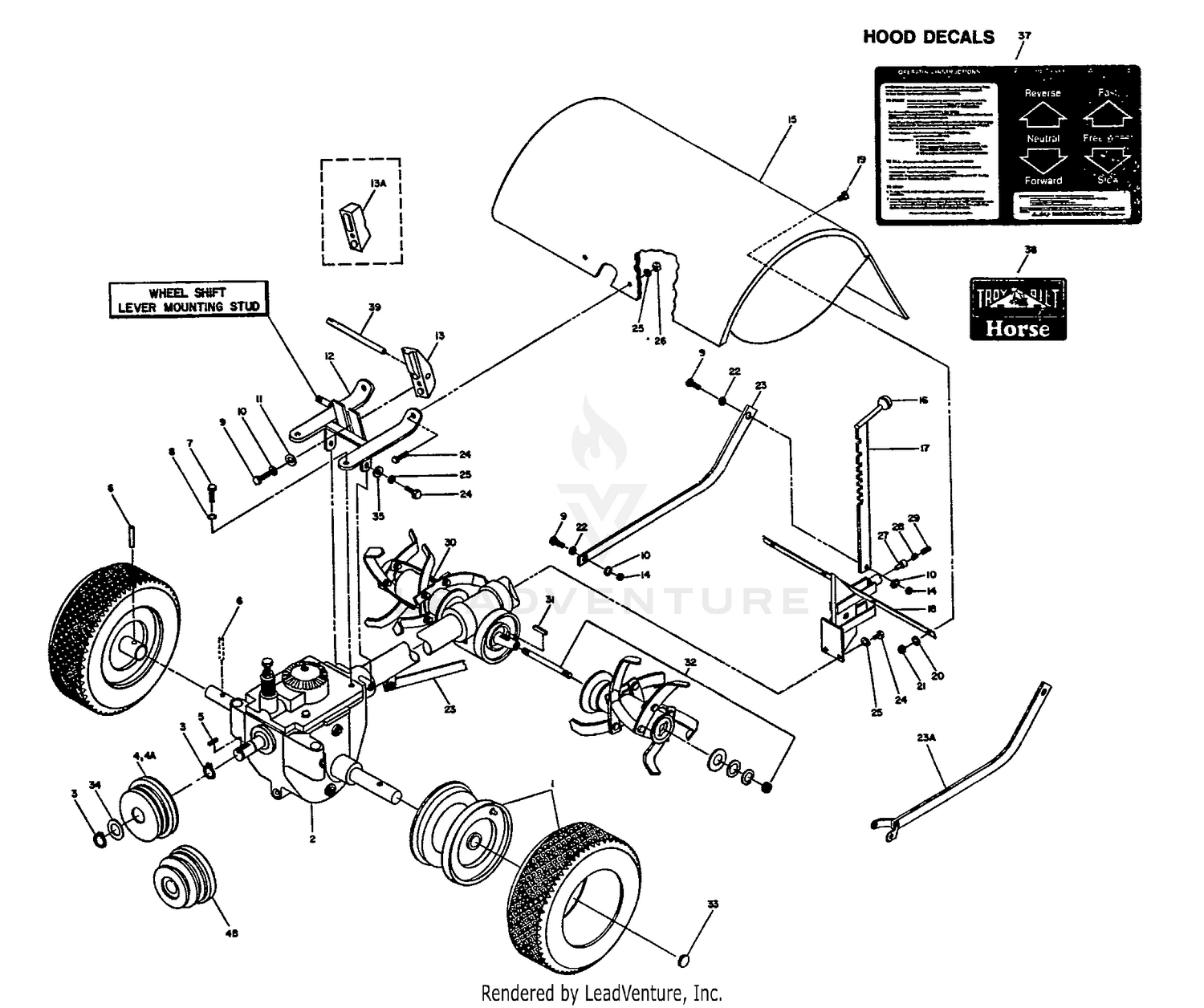

| Ref | Part Number | Description |
|---|
| 2 |
N/A |
CASE |
| 3 |
716-0101 |
Retaining Ring-external This part replaces GW-9500. Price: $3.37 |
| 4 |
GW-1008-1 |
PULLEY-TRANS MACH 2 BELT Not Available Price: |
| 4A |
GW-1008 |
PULLEY-TRA Not Available Price: |
| 4B |
753-05600A |
REPLACEMENT PULLEY KIT This part replaces GW-1484. Price: $392.33 |
| 5 |
GW-9301 |
KEY-.188 SQX1.0 Price: $3.46 |
| 6 |
GW-9322099 |
PIN -roll (spirol, 5/16" x 1-1/2" long, wheel hub to shaft This part replaces GW-9322. Price: $6.86 |
| 7 |
GW-9713 |
BOLT-HH 3/8-16X1.5 FTH ZP Not Available Price: |
| 8 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces GW-9913. Price: $3.33 |
| 9 |
710-0514 |
SCREW 3/8-16 x 1 GR5 This part replaces GW-9710. Price: $3.78 |
| 10 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces GW-9913. Price: $3.33 |
| 11 |
736-3052 |
Flat Washer, .406 x 1.0 x .105 This part replaces GW-9903. Price: $4.02 |
| 12 |
GW-1077 |
BRACKET-FRONT HOOD-WE Not Available Price: |
| 13 |
GW-1920 |
KIT-ADJ BLOCK 4 SP Price: $53.19 |
| 13A |
GW-1133-1A |
BLOCK-BELT ADJUST MACH Price: $61.35 |
| 14 |
712-3017 |
HEX NUT 3/8-16 GR5 This part replaces GW-9802. Price: $3.90 |
| 15 |
GW-1519 |
HOOD W/DECALS HI&II Not Available Price: |
| 16 |
GW-9119 |
KNOB-CONTROL Price: $10.22 |
| 17 |
1900864 |
Depth Regulator This part replaces GW-1117A. Price: $75.79 |
| 18 |
GW-1076 |
KIT-REAR HOOD BRKT Not Available Price: |
| 19 |
GW-9723 |
SCR-RH 1/4-20 X .75 ZP Price: Call Us |
| 20 |
936-0329 |
Lock Washer This part replaces GW-9910. Price: $3.90 |
| 21 |
GW-9800 |
NUT-HEX 1/4-20 ZP Price: $4.05 |
| 22 |
GW-1113-1099 |
BUSHING - spacer, 19/64" (.300") long, yoke link to retaining plug This part replaces GW-1113-1. Price: $4.53 |
| 23 |
1903633 |
DRAG BAR This part replaces GW-4763. Price: $70.53 |
| 24 |
GW-9703 |
SCR-HHC 5/16-18X.75 GR 5 ZP Price: $3.76 |
| 25 |
936-0119 |
LOCK WASHER 5/16 This part replaces GW-9912. Price: $4.29 |
| 26 |
712-3010 |
HEX NUT 5/16-18 This part replaces GW-9801. Price: $3.89 |
| 27 |
GW-1119 |
PLUNGER Not Available Price: |
| 28 |
GW-1120 |
SPRING .406 x 1.25 Not Available Price: |
| 29 |
1105620 |
PLUG-SQ HEAD 1/4-18 NPT This part replaces GW-9726. Price: $3.66 |
| 30 |
N/A |
BOLO TINE ASSEMBLY, RIGHT |
| 31 |
GW-9301 |
KEY-.188 SQX1.0 Price: $3.46 |
| 32 |
N/A |
SEE TINE ASSEMBLIES, PAGES 18 & 19 |
| 33 |
1902020 |
HUB CAP Not Available This part replaces GW-9145. Price: |
| 34 |
736-04187 |
SHIM - engine pulley, 1/16" thick This part replaces GW-1138-1. Price: $4.36 |
| 35 |
736-0567 |
NYLON FLAT WASHER Not Available This part replaces GW-9902. Price: |
| 37 |
GW-1239 |
DECAL-HOOD Not Available Price: |
| 38 |
GW-2610 |
DECAL-HORSE LOGO OPC Not Available This part replaces GW-1238. Price: |
