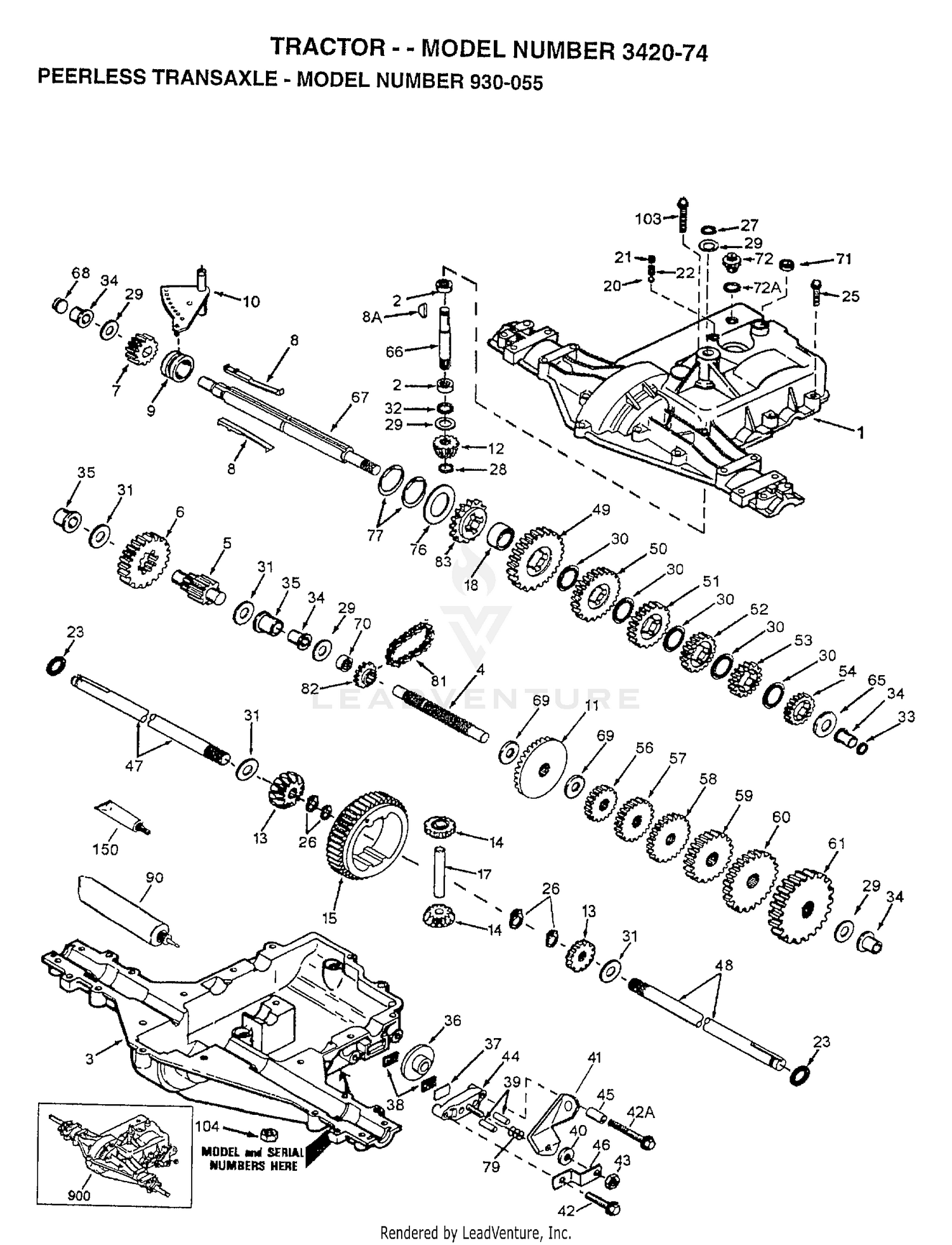

| Ref | Part Number | Description |
|---|
| 1 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 1 |
772108A |
TRANSAXLE COVER Price: Call Us |
| 2 |
325-6 |
SCREW-HH Price: $1.42 |
| 2 |
780086 |
BEARING, NEEDLE Price: Call Us |
| 3 |
105-0418-01 |
ARM-STEERING Price: $568.38 |
| 3 |
770102A |
TRANSAXLE CASE Price: Call Us |
| 4 |
105-4316-03 |
STEERING MOUNT ASM Price: $105.64 |
| 4 |
776260 |
SHAFT, COUNTER Price: Call Us |
| 5 |
104-2053 |
DECAL-WARNING Price: $20.70 |
| 5 |
776219B |
OUTPUT SHAFT AND PINION Price: Call Us |
| 5 |
93-8063 |
DECAL-CAUTION, CE Price: $18.92 |
| 6 |
105-4326 |
SCREW-HH, LH Price: $11.60 |
| 6 |
778139 |
GEAR, OUTPUT Price: Call Us |
| 7 |
107-2562 |
NUT-HEX This part replaces 94-9952. Price: $19.95 |
| 7 |
778136 |
GEAR, SPUR, 15 TEETH Price: Call Us |
| 8 |
75-0560 |
STEERING WHEEL ASM Price: $204.13 |
| 8 |
792136A |
SHIFT KEY Price: Call Us |
| 8A |
792047 |
KEY, WOODRUFF Price: Call Us |
| 9 |
784352 |
COLLAR, SHIFTER Price: Call Us |
| 10 |
3241-1 |
SCREW-SET, SQH Price: $22.99 |
| 10 |
784355 |
ROD & FORK ASSY, SHIFT Price: Call Us |
| 11 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 11 |
778229 |
GEAR, BEVEL, 42 TEETH Price: Call Us |
| 12 |
3274-39 |
SCREW-HSBH Price: $4.34 |
| 12 |
778113A |
BEVEL PINION, INPUT Price: Call Us |
| 13 |
105-0457 |
PLATE-FRICTION Price: $28.64 |
| 13 |
778221 |
GEAR, BEVEL Price: Call Us |
| 14 |
47-2890 |
BUSHING Price: $3.19 |
| 14 |
778068 |
GEAR, BEVEL, PINION Price: Call Us |
| 15 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 15 |
778260 |
GEAR, RING Price: Call Us |
| 16 |
119-3587 |
LEVER-STEERING This part replaces 105-4313. Price: $26.68 |
| 17 |
786139 |
PIN, DRIVE Price: Call Us |
| 17 |
92-6798 |
CAP-ROD, TILT Price: $4.59 |
| 18 |
323-29 |
SCREW-HH Price: $0.42 |
| 18 |
786102 |
SPACER, NEUTRAL Price: Call Us |
| 19 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 20 |
3290-477 |
WASHER-CURVED Price: $0.79 |
| 20 |
792077 |
BALL STEEL, 5/16" DIA. Price: Call Us |
| 21 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 21 |
792078 |
SCREW, 3/8-16 X 3/8" Price: Call Us |
| 22 |
105-0425 |
STEERING COLUMN ASM Price: $376.71 |
| 22 |
792079 |
SPRING Price: Call Us |
| 23 |
788061 |
RING, SEAL Price: Call Us |
| 23 |
83-0810 |
COVER-STEERING Price: $110.46 |
| 24 |
3290-277 |
NUT-SPEED Price: $0.61 |
| 25 |
130-7943 |
VALVE-STEERING,CONTROL This part replaces 105-0424. Price: $1,160.56 |
| 25 |
792073 |
SCREW, 1/4-20 X 1-1/4 Price: Call Us |
| 26 |
340-1 |
FITTING-STRAIGHT Price: $10.19 |
| 26 |
792125 |
RING RETAINER Price: Call Us |
| 27 |
33103-016 |
SCREW-HHF Price: $5.18 |
| 27 |
792035 |
RING, RETAINER Price: Call Us |
| 28 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 28 |
788040 |
RETAINING RING Price: Call Us |
| 29 |
780072 |
WASHER THRUST Price: Call Us |
| 30 |
780108 |
WASHER THRUST Price: Call Us |
| 31 |
780001 |
WASHER Price: Call Us |
| 33 |
788095 |
SEAL, SQUARE CUT Price: Call Us |
| 34 |
780105A |
BUSHING, FLANGED Price: Call Us |
| 35 |
780118A |
BUSHING, FLANGED Price: Call Us |
| 36 |
790003 |
DISK, BRAKE Price: Call Us |
| 37 |
790007 |
PLATE BRAKE PAD Price: Call Us |
| 38 |
799021 |
BRAKE PAD Price: Call Us |
| 39 |
786026 |
PIN DOWEL Price: Call Us |
| 40 |
792076A |
WASHER Price: Call Us |
| 41 |
790079 |
BRAKE LEVER Price: Call Us |
| 42 |
792073 |
SCREW, 1/4-20 X 1-1/4 Price: Call Us |
| 42A |
792085A |
SCREW, 1/4-20 X 2-1/4 Price: Call Us |
| 43 |
792075 |
LOCKNUT 5/16-24 Price: Call Us |
| 44 |
790025 |
HOLDER BRAKE PAD Price: Call Us |
| 45 |
786066 |
SPACER Price: Call Us |
| 46 |
786086 |
BRKT BRAKE LEVER Price: Call Us |
| 47 |
774690 |
AXLE Price: Call Us |
| 48 |
774691 |
AXLE Price: Call Us |
| 49 |
778215 |
GEAR, SPUR, 37 TEETH Price: Call Us |
| 50 |
778125 |
GEAR, SPUR, 35 TEETH Price: Call Us |
| 51 |
778124A |
GEAR, SPUR, 30 TEETH Price: Call Us |
| 52 |
778123A |
GEAR, SPUR, 25 TEETH Price: Call Us |
| 53 |
778122A |
GEAR, SPUR, 22 TEETH Price: Call Us |
| 54 |
778273 |
GEAR, SPUR, 19T Price: Call Us |
| 56 |
778230 |
GEAR, SPUR, 12 TEETH Price: Call Us |
| 57 |
778151 |
GEAR, SPUR, 15 TEETH Price: Call Us |
| 58 |
778126A |
GEAR, SPUR, 20 TEETH Price: Call Us |
| 59 |
778127A |
GEAR, SPUR, 25 TEETH Price: Call Us |
| 60 |
778128A |
GEAR, SPUR, 28 TEETH Price: Call Us |
| 61 |
778163 |
GEAR, SPUR, 31 TEETH Price: Call Us |
| 65 |
780109 |
WASHER, THRUST Price: Call Us |
| 66 |
776135 |
SHAFT, INPUT Price: Call Us |
| 67 |
776315A |
SHAFT, BRAKE, 4 KEYED Price: Call Us |
| 68 |
786116A |
PLUG Price: Call Us |
| 69 |
780051 |
WASHER THRUST Price: Call Us |
| 70 |
786118 |
SPACER Price: Call Us |
| 71 |
788069 |
SEAL SQUARE CUT Price: Call Us |
| 72 |
792165 |
THREADED PLUG 9/16-18 Price: Call Us |
| 76 |
780090 |
WASHER, THRUST Price: Call Us |
| 77 |
788078A |
INVERTED RETAINING RING Price: Call Us |
| 79 |
792144 |
SPRING Price: Call Us |
| 81 |
786081 |
CHAIN, ROLLER Price: Call Us |
| 82 |
786082 |
SPROCKET 9T Price: Call Us |
| 83 |
786123 |
SPROCKET 18T (REV) Price: Call Us |
| 90 |
788067B |
GREASE BENTONITE, 32 OZ. Price: Call Us |
| 103 |
792166 |
SCREW Price: Call Us |
| 104 |
792167 |
LOCKNUT Price: Call Us |
| 150 |
510334 |
GASKET ELIMINATOR Price: Call Us |
