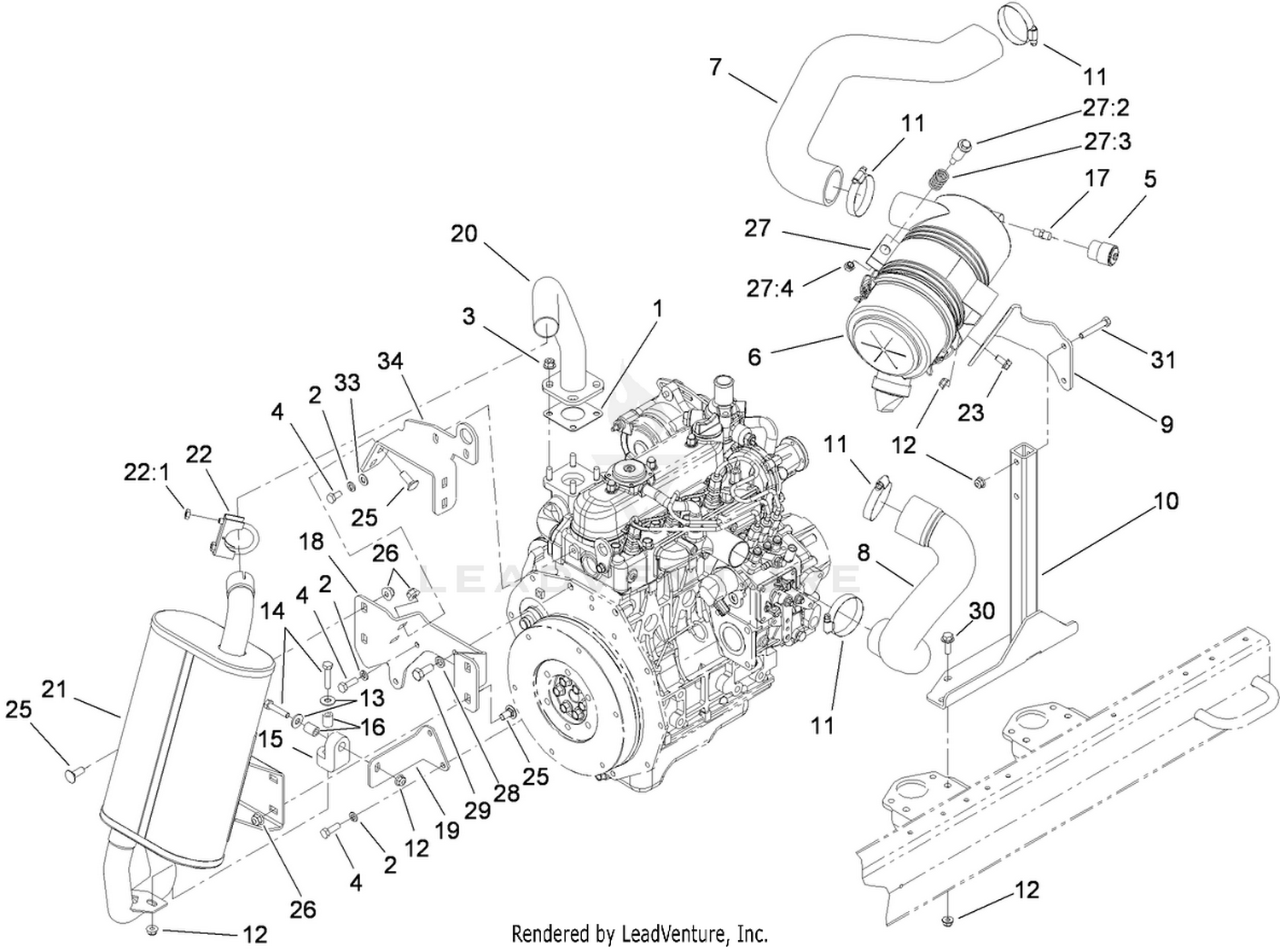

Engine Intake and Exhaust Assembly
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 99-8343 | GASKET-MUFFLER Price: $14.99 |
| 2 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 3 | 104-2612 | NUT-HF Price: $0.70 |
| 4 | 33114-020 | SCREW-HH Price: $0.28 |
| 5 | 93-9164 | INDICATOR-MINI Price: $55.24 |
| 6 | 106-5277 | AIR CLEANER ASM Price: $134.07 |
| 7 | 108-7550 | HOSE-FORMED Price: $94.87 |
| 8 | 108-1744 | HOSE-FORMED Price: $78.13 |
| 9 | 110-8980-03 | BRACKET-MOUNT Price: $54.72 |
| 10 | 110-8977-03 | STAND-AIR CLEANER Price: $129.18 |
| 11 | 2412-130 | CLAMP-HOSE Price: $2.57 |
| 12 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 13 | 3256-3 | WASHER-FLAT Price: $0.49 |
| 14 | 322-9 | SCREW-HH Price: $3.09 |
| 15 | 95-5622 | HANGER-RUBBER Price: $34.18 |
| 16 | 93-5023 | SPACER Price: $8.77 |
| 17 | 94-1416 | ADAPTER-INDICATOR Price: $11.87 |
| 18 | 108-1786-03 | BRACKET-SUPPORT, MUFFLER Price: $95.17 |
| 19 | 108-7569-03 | BRACKET-EXHAUST Price: $20.47 |
| 20 | 108-1782 | HEADER Price: $95.98 |
| 21 | 114-8897 | MUFFLER Price: $711.25 |
| 22 | 2112-9 | CLAMP Price: $7.78 |
| 23 | 3234-14 | SCREW-HHF Price: $0.61 |
| 25 | 3231-27 | SCREW-CARR Price: $0.54 |
| 26 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 27 | 100-4825 | BAND-MOUNTING, AIR CLEANER Price: $80.59 |
| 28 | 48-9590 | WASHER-LOCK Price: $0.25 |
| 29 | 43-0090 | SCREW-HH Price: $8.05 |
| 30 | 3234-29 | SCREW-HHF Price: $1.84 |
| 31 | 322-10 | SCREW-HH Price: $0.70 |
| 33 | 94-6936 | WASHER-HARDENED Price: $0.58 |
