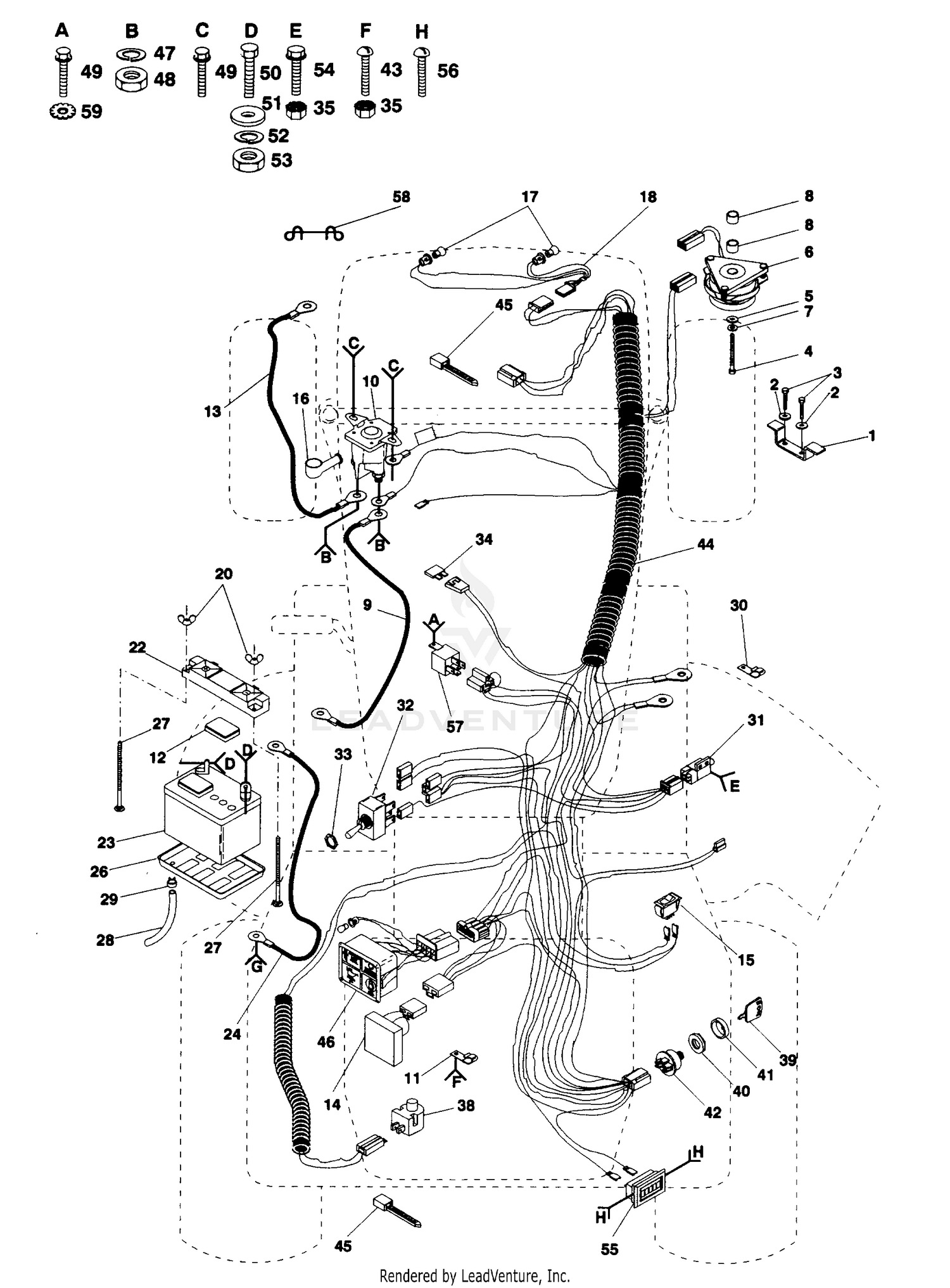

| Ref | Part Number | Description |
|---|
| 1 |
532110882 |
Stop, Clutch (AYP part number) Price: $2.27 |
| 2 |
539990118 |
SLW 3/8 STD This part replaces 810040600. Price: $1.99 |
| 3 |
874780612 |
Bolt, Hex 3/8-16 x 3/4 (AYP part number) Price: $3.99 |
| 4 |
871130724 |
Bolt, Hex 7/16-20 x 1-1/2 Gr. 5 Price: $2.99 |
| 5 |
532126197 |
Washer (AYP part number) Price: $4.99 |
| 6 |
532127170 |
Clutch, Electric (AYP part number) Price: $3.33 |
| 7 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 8 |
532128224 |
Spacer, Clutch (AYP part number) Price: $3.33 |
| 9 |
532124770 |
Cable, Battery (AYP part number) Price: $8.99 |
| 10 |
532109081 |
Solenoid (AYP part number) Price: $22.99 |
| 11 |
532124967 |
Clip, Insulated (AYP part number) Price: $5.46 |
| 12 |
532121264 |
Battery, Caps (AYP part number) Price: $10.91 |
| 13 |
532129458 |
Cable, Starter (AYP part number) Price: $9.75 |
| 14 |
532127385 |
Sensor, Low Voltage (AYP part number) Price: $82.99 |
| 15 |
532110712 |
Switch, Light (AYP part number) Price: $4.99 |
| 16 |
532124783 |
Cover, Terminal (AYP part number) Price: $4.99 |
| 17 |
532004152 |
LIGHTBULB This part replaces 532124893. Price: $2.99 |
| 18 |
532136850 |
Harness Asm Light W/4152j (AYP part number) This part replaces 532127441. Price: $15.99 |
| 19 |
532110143 |
Bulb, Light Package (AYP part number) Price: $3.08 |
| 20 |
532146525 |
This part replaces 532123198. Price: $3.99 |
| 22 |
532150109 |
BATTERY HOLDDOWN This part replaces 532102476. Price: $4.99 |
| 23 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532121537. Price: $139.99 |
| 24 |
532124773 |
Cable, Ground (AYP part number) Price: $4.99 |
| 26 |
532007603 |
TRAY.BATTERY This part replaces 532124886. Price: $3.99 |
| 27 |
872240460 |
Bolt, Carriage 1/4-20 x 7-1/2 (AYP part number) Price: $3.99 |
| 28 |
532007697 |
Tube, Tray, Battery (AYP part number) This part replaces 532100541. Price: $6.23 |
| 29 |
532109596 |
Clamp, Hose (AYP part number) Price: $2.99 |
| 30 |
532100207 |
Clip (AYP part number) Price: $2.99 |
| 31 |
539101080 |
SWITCH, INTERLOCK This part replaces 532109553. Price: $4.99 |
| 32 |
532126018 |
Switch, P.T.O. Price: $17.96 |
| 33 |
532004022 |
Hex Nut (AYP part number) This part replaces 532124932. Price: $2.99 |
| 34 |
532108824 |
Fuse (AYP part number) Price: $3.99 |
| 35 |
873951000 |
Nut, Keps #10-32 (AYP part number) Price: $5.99 |
| 38 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $7.99 |
| 39 |
532122147 |
Key (AYP part number) Price: $4.99 |
| 40 |
532124211 |
Nut, Ignition (AYP part number) Price: $3.99 |
| 41 |
532141226 |
Cover, Key Ignition (AYP part number) This part replaces 532123620. Price: $3.99 |
| 42 |
532365402 |
KIT.SWITCH.IGNITN This part replaces 532125104. Price: $17.99 |
| 43 |
874641008 |
Screw, Slot, Pan Head #10-33 x 1/2 (AYP part number) Price: $2.99 |
| 44 |
532132643 |
Harness, Ignition (AYP part number) Price: $3.33 |
| 45 |
532007192 |
WIRE TIE This part replaces 532124756. Price: $3.99 |
| 46 |
532109555 |
Light Package (AYP part number) Price: $44.99 |
| 47 |
810040400 |
LOCKWASHER This part replaces 810090400. Price: $3.99 |
| 48 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873350400. Price: $3.99 |
| 49 |
817190408 |
Screw, Hex Washer Hd. Cutting 1/4-20 x 1/2 (AYP part number) Price: $5.99 |
| 50 |
874760412 |
Bolt, Hex Hd. 1/4-20 x 3/4 (AYP part number) Price: $3.99 |
| 51 |
819091016 |
Washer 9/32 x 5/8 x 16 Gauge (AYP part number) Price: $2.99 |
| 52 |
810040400 |
Washer, Lock 1/4 (AYP part number) Price: $3.99 |
| 53 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 54 |
874641008 |
Screw, Slotted Pan Head #10-32 x 1/2 (AYP part number) This part replaces 871031008. Price: $2.99 |
| 55 |
532169642 |
HOUR METER This part replaces 532110940. Price: $109.99 |
| 56 |
817011008 |
Screw #10-24 x 1/2 (Black) (AYP part number) Price: Call Us |
| 57 |
532109748 |
Assembly, Relay (AYP part number) Price: $19.99 |
