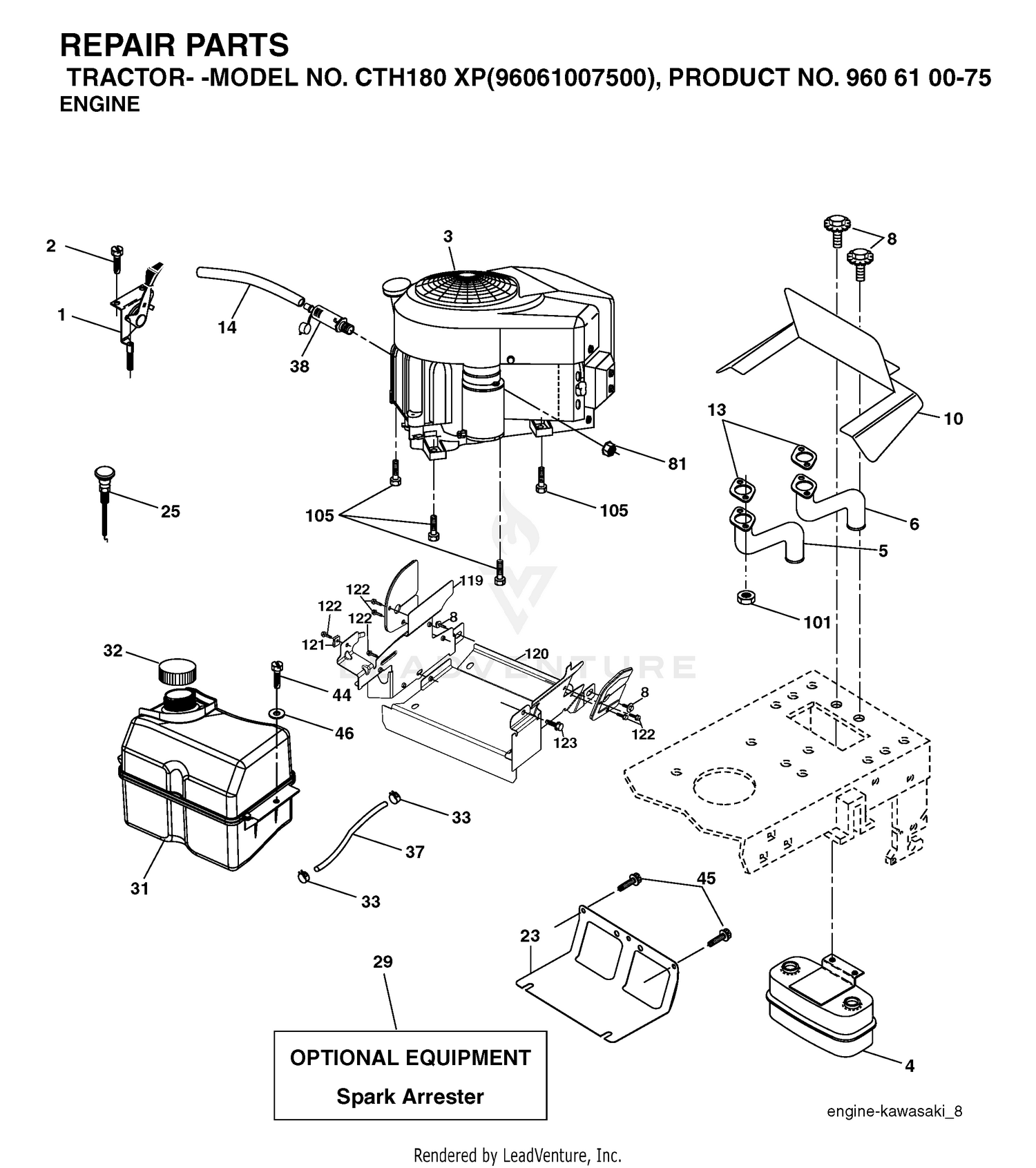

| Ref | Part Number | Description |
|---|
| 1 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 1 |
532170803 |
CONTROL, THROTTLE Price: $24.99 |
| 2 |
254-62 |
BEARING-ROLLER, CONE Price: $12.61 |
| 3 |
217-103 |
BOLT-WHEEL Price: $2.51 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 4 |
93-0181 |
TIRE (11-14) 8 PLY Price: $212.68 |
| 5 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 5 |
532176067 |
EXHAUST.TUBE.LH.KAWASAKI. Price: $99.99 |
| 6 |
532176068 |
EXHAUST.TUBE.RH.KAWASAKI. Price: $99.99 |
| 6 |
93-0182 |
DISCONTINUED Price: Call Us |
| 7 |
242-54 |
HUB Price: $168.31 |
| 8 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 10 |
253-127 |
SEAL Price: $74.45 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 11 |
93-4009-01 |
DISCONTINUED Price: Call Us |
| 12 |
32104-96 |
SCREW-HH Price: $5.59 |
| 13 |
20-9580 |
ROPE-LATCH Price: $47.65 |
| 14 |
13-6910-01 |
SPACER-GUIDE, ROPE Price: $18.39 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
13-6890-01 |
GUIDE-ROPE Price: $119.16 |
| 16 |
2412-40 |
CLAMP-CONDUIT Price: $6.72 |
| 17 |
3-3107 |
BUMPER-PEDAL, CLUTCH Price: $3.80 |
| 18 |
32104-95 |
SCREW-HWH Price: $0.41 |
| 19 |
235-15 |
GRIP-HANDLE Price: $11.84 |
| 20 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 21 |
3218-3 |
NUT-JAM Price: $0.25 |
| 22 |
323-8 |
SCREW-HH Price: $1.20 |
| 23 |
13-3930-01 |
TANK-GAS W/CAP Price: $924.40 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 24 |
222-8 |
CAP-GAS Price: $65.84 |
| 25 |
13-3960 |
STRAP ASM Price: $121.74 |
| 25 |
532191812 |
NEEDS DESCRIPTION Price: Call Us |
| 26 |
13-3970 |
STRIP-FELT Price: $13.69 |
| 27 |
93-7709 |
PAD Price: $6.23 |
| 28 |
53-4420 |
DECAL-GAS Price: $10.56 |
| 29 |
13-3970 |
STRIP-FELT Price: $13.69 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
304-75 |
CONNECTOR-HOSE Price: $8.29 |
| 31 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 31 |
581289901 |
FUEL.TANK.ASM.NON-EPA This part replaces 532185534. Price: $44.99 |
| 32 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
32104-109 |
SCREW-HWH Price: $0.87 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
110-7501 |
HOSE-FUEL This part replaces 94-4522. Price: $12.75 |
| 35 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 36 |
2412-93 |
CLAMP-R Price: $1.02 |
| 37 |
13-7460 |
PLATE-HITCH, CAUTION Price: $30.27 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
3290-55 |
RIVET-POP Price: $0.25 |
| 39 |
67-5360 |
DECAL-DANGER Price: $14.99 |
| 40 |
115-9471 |
BEARING-CUP This part replaces 254-61. Price: $6.46 |
| 41 |
3256-29 |
WASHER-FLAT Price: $2.59 |
| 42 |
32136-1 |
NUT-SLOTTED Price: $3.46 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 101 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 119 |
532400601 |
NEEDS DESCRIPTION Price: Call Us |
| 120 |
532400600 |
NEEDS DESCRIPTION Price: Call Us |
| 121 |
532196688 |
CLIPS Price: $3.99 |
| 122 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 123 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
