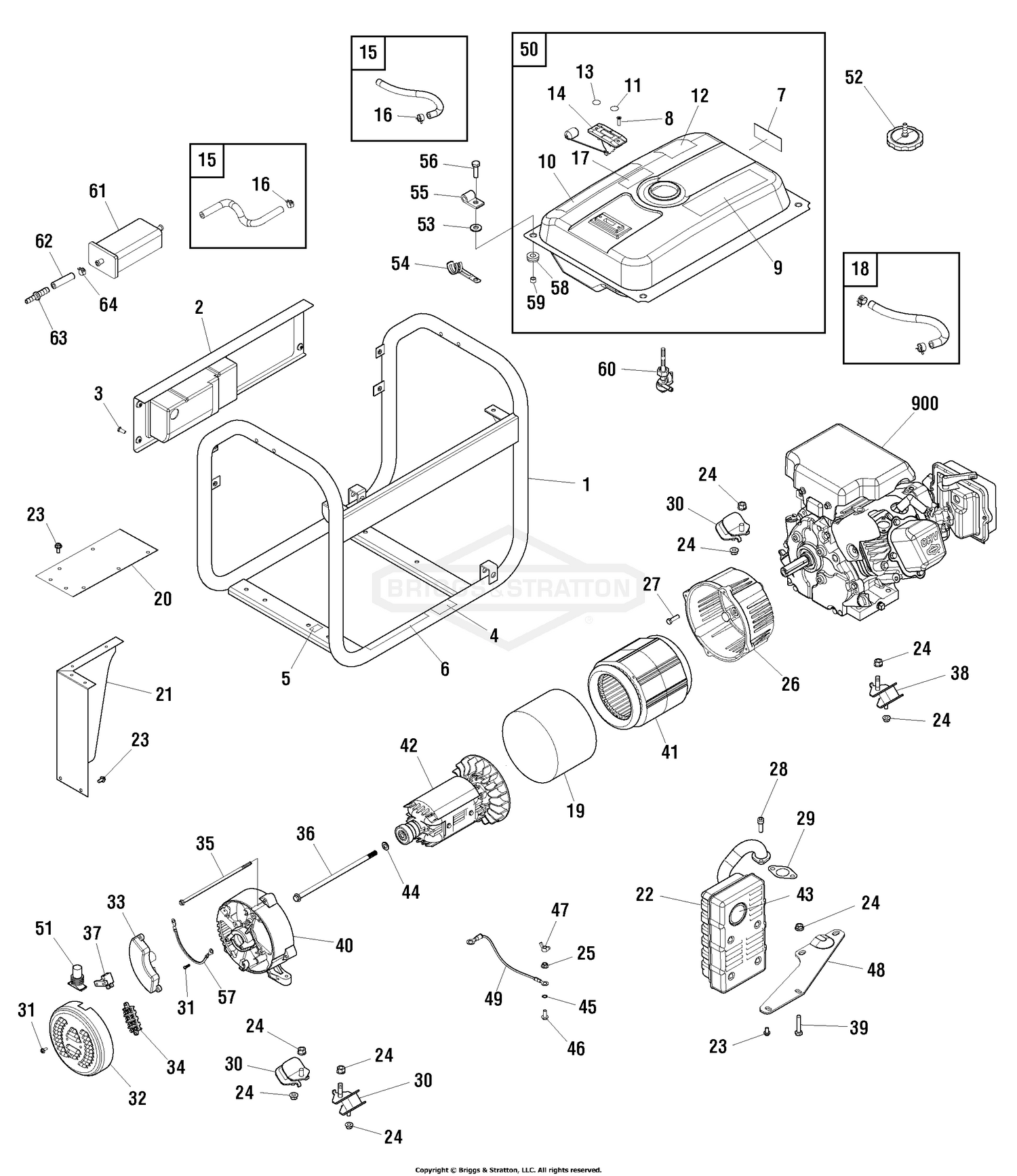

Main Unit (318172)
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 318163GS | CRADLE Price: $419.99 |
| 2 | 318171GS | ASSY-CONTRL PANEL Price: $164.99 |
| 3 | 703804 | BOLT Price: $3.63 |
| 4 | 705920 | DECAL SHEET, WARNINGS This part replaces 208538GS. Price: $29.49 |
| 5 | B4986GS | DECAL Price: $2.75 |
| 6 | 200310GS | DECAL Price: $14.83 |
| 7 | 197798GS | DECAL Price: $7.89 |
| 8 | 314440GS | SCREW Price: $3.61 |
| 9 | 194984GS | DECAL Price: $13.99 |
| 10 | 312572GS | DECAL Price: $6.49 |
| 11 | 313462GS | DECAL Price: $8.36 |
| 12 | 202997GS | DECAL Price: $12.80 |
| 13 | 313461GS | DECAL Price: $8.89 |
| 14 | 208124GS | GAUGE-FUEL Price: $8.39 |
| 15 | 315017GS | HOSE Price: $26.64 |
| 16 | 314955GS | CLAMP Price: $4.19 |
| 17 | 312728GS | DECAL Price: $8.39 |
| 18 | 791745 | LINE, Fuel Price: $8.97 |
| 19 | 706154 | BOND Price: $4.60 |
| 20 | 318166GS | HEATSHIELD Price: $28.99 |
| 21 | 318177GS | HEATSHIELD Price: $46.99 |
| 22 | 188301GS | MUFFLER Price: $141.76 |
| 23 | 590850 | SCREW This part replaces 706152. Price: $3.02 |
| 24 | 67989GS | NUT Price: $2.77 |
| 25 | 52857GS | NUT-M6 FLANGE Price: $3.06 |
| 26 | 704266 | ADAPTER-ENGINE Price: $81.99 |
| 27 | 313368GS | BOLT Price: $10.29 |
| 28 | 706921 | KIT-HARDWARE Price: $5.09 |
| 29 | 798516 | GASKET Price: $4.03 |
| 30 | 706149 | MOUNT-VIBRATION This part replaces 209425GS. Price: $8.95 |
| 31 | 207824GS | SCREW Price: $3.73 |
| 32 | 313364GS | END COVER Price: $26.20 |
| 33 | 209420GS | VOLTAGE REGULATOR Price: $43.98 |
| 34 | 316945GS | TERMINAL BLOCK Price: $7.37 |
| 35 | 209427GS | BOLT Price: $7.09 |
| 36 | 313525GS | BOLT Price: $6.30 |
| 37 | 207827GS | BRUSH ASSY Price: $9.35 |
| 38 | 706149 | MOUNT-VIBRATION Price: $8.95 |
| 39 | 590714 | SCREW This part replaces 313524GS. Price: $3.36 |
| 40 | 209423GS | CARRIER-BEARING Price: $120.36 |
| 41 | 318162GS | STATOR Price: $234.99 |
| 42 | 318164GS | ROTOR Price: $226.78 |
| 43 | 83083GS | SCREEN Price: $8.49 |
| 44 | 207826GS | WASHER Price: $2.96 |
| 45 | 26850GS | WASHER, Ext. M6 - 1/4" Shakeproof Price: $2.60 |
| 46 | 590703 | SCREW This part replaces 706166. Price: $2.79 |
| 47 | 87680GS | NUT Price: $6.57 |
| 48 | 191785GS | BRACKET-MUFFLER Price: $7.85 |
| 49 | 706153 | WIRE Price: $5.19 |
| 50 | 707734 | TANK-FUEL Price: Call Us |
| 51 | 207879GS | BOOT Price: $6.22 |
| 52 | 314950GS | CAP-FUEL Price: $20.30 |
| 53 | 312005GS | WASHER Price: $3.09 |
| 54 | 706894 | CLIP Price: $1.90 |
| 55 | 315042GS | CLAMP Price: $2.11 |
| 56 | 703805 | BOLT Price: $8.89 |
| 57 | 706150 | WIRE Price: $5.93 |
| 58 | 189134GS | GROMMET Price: $3.73 |
| 59 | 189137GS | SPACER Price: $3.59 |
| 60 | 209417GS | VALVE-FUEL Price: $7.75 |
| 61 | 316783GS | CARBON CANISTER Price: $59.91 |
| 62 | 195201AGS | HOSE-FUEL Price: $3.28 |
| 63 | 317025GS | BARB-HOSE Price: $6.79 |
