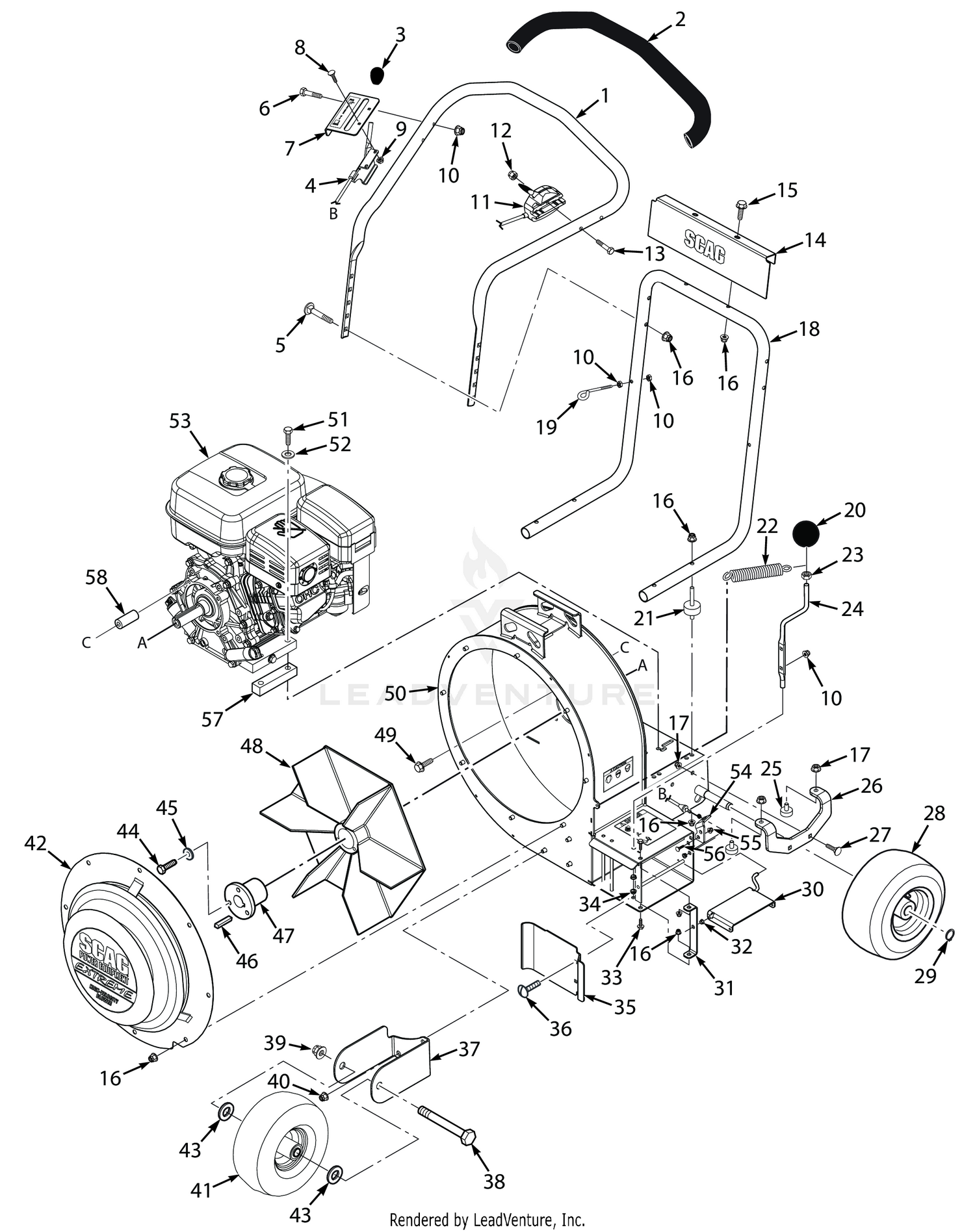

| Ref | Part Number | Description |
|---|
| 1 |
462738 |
Handle, Upper w/Grip (incl. #2) Price: Call Us |
| 2 |
485343 |
Grip, 1" x 21-1/2" Price: Call Us |
| 3 |
483533 |
Knob, Throttle Price: Call Us |
| 4 |
484935 |
Control Cable, Air Direction (incl. #3) Price: Call Us |
| 5 |
04003-15 |
CARR BOLT, 5/16-18 X 1.75 Price: Call Us |
| 6 |
04001-04 |
Bolt, Hex Head, 1/4-20 x 1-1/2" Price: Call Us |
| 7 |
462632 |
Mounting Bracket, Control Plate w/Decal Price: Call Us |
| 8 |
04003-43 |
Bolt, Carriage #10-24 x 1/2" Price: Call Us |
| 9 |
04021-26 |
Nut, Elastic Stop #10-24 Price: Call Us |
| 10 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 11 |
485890 |
Cable, Throttle Control (B&S BV10) Price: Call Us |
| 12 |
04021-08 |
HEX, NUT, ELASTIC STOP LOCK, 1/4-20 Price: Call Us |
| 13 |
04001-206 |
Bolt, 1/4-20 x 2-1/2" Price: Call Us |
| 14 |
463082 |
Handle Bar Cover w/Decal Price: Call Us |
| 15 |
04017-19 |
Bolt, Serrated Flange Hex Head 5/16-18 x 1.50" Price: Call Us |
| 16 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 17 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 18 |
484875 |
Handle, Lower - LBX Price: Call Us |
| 19 |
44200 |
Guide, Pull Rope Price: Call Us |
| 20 |
484840 |
Knob, 3/8-16 Thread Price: Call Us |
| 21 |
484843 |
Mount, Vibration Price: Call Us |
| 22 |
484764 |
Spring, Air Discharge Door Price: Call Us |
| 23 |
04020-04 |
HEX LOCKNUT, ELASTIC STOP, 3/8-16 Price: Call Us |
| 24 |
44202 |
Rod, Forward Air Control Price: Call Us |
| 25 |
481284 |
Bumper, Rubber 5/16-18 x 5/8" Price: Call Us |
| 26 |
426743 |
Bracket, Limiter Plate Price: Call Us |
| 27 |
04003-04 |
Bolt, Carriage 5/16-18x1" (large frame units only) Price: Call Us |
| 28 |
484844 |
Wheel Assembly, 4.10 x 3.5-6 Price: Call Us |
| 29 |
04050-09 |
RETAINING RING, 5/8 EXT. - BASIC Price: Call Us |
| 30 |
452497 |
Door Weldment, Side Discharge Control Price: Call Us |
| 31 |
426163 |
Pivot Bracket, Side Discharge Price: Call Us |
| 32 |
483453-24 |
Bearing, .250 ID Price: Call Us |
| 33 |
04017-16 |
Capscrew, 5/16-18 x .75 Serrated Flange Hex Head Price: Call Us |
| 42 |
04117-02 |
Nut, Flange Elastic Stop Nut, 3/8-16 Price: Call Us |
| 42 |
463080 |
Baffle Assembly, Extreme w/Decal Price: Call Us |
| 42 |
483453-25 |
Bearing, .375 ID Price: Call Us |
| 43 |
04040-10 |
Flatwasher, 5/8 - (..688 x 1.75 x .134) Price: Call Us |
| 43 |
426211 |
Door, Forward Air Control Price: Call Us |
| 43 |
485095 |
Wheel Assembly, 9 x 3.5-4 Price: Call Us |
| 44 |
04001-175 |
Bolt, Hex Head 5/16-18 x 1-1/2" Grade 8 Price: Call Us |
| 44 |
04003-07 |
Bolt, Carriage 1/4-20 x 1/2" Price: Call Us |
| 45 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 45 |
426350 |
Caster Bracket, Extreme Price: Call Us |
| 46 |
04001-119 |
BOLT, HEX HEAD, 5/8-11 X 5-1/2 Price: Call Us |
| 46 |
04063-08 |
Key, 1/4 x 1/4 x 2.0" Price: Call Us |
| 47 |
04021-13 |
HEX LOCKNUT, ELASTIC STOP, 5/8-11 Price: Call Us |
| 47 |
485550 |
Tapered Hub, P2 SPCL - 1" Bore Price: Call Us |
| 48 |
452757 |
Impeller Weldment, 15" Extreme -LBX Price: Call Us |
| 49 |
04017-52 |
Bolt, Serr. Flng 5/16-24 x 3/4" (B&S) Price: Call Us |
| 50 |
463081 |
Housing Weldment, Extreme w/Decals Price: Call Us |
| 51 |
04001-13 |
Bolt, Hex Head, 5/16-18 x 2.75 Zinc. Price: Call Us |
| 52 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 53 |
485889 |
Engine, B&S BV10 (not avail through Scag) Price: Call Us |
| 54 |
426737 |
Bracket, Air Flow Price: Call Us |
| 55 |
04117-03 |
Nut, Flanged Elastic Stop 1/4-20 Price: Call Us |
| 56 |
04003-02 |
Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4" Price: Call Us |
| 57 |
485884 |
Spacer, Engine (B&S Engine Only) Price: Call Us |
| 426361 |
Plate, |
Impeller Hub (not shown) Price: Call Us 426361 |
| 485006 |
Cable, |
Throttle Control Price: Call Us 485006 |
| 485008 |
Tire |
Price: Call Us 485008 |
| 485010 |
Bearing |
Price: Call Us 485010 |
| 485093 |
Tire |
Price: Call Us 485093 |
| 485250 |
Engine, |
Honda GX270 (not avail through Scag) Price: Call Us 485250 |
