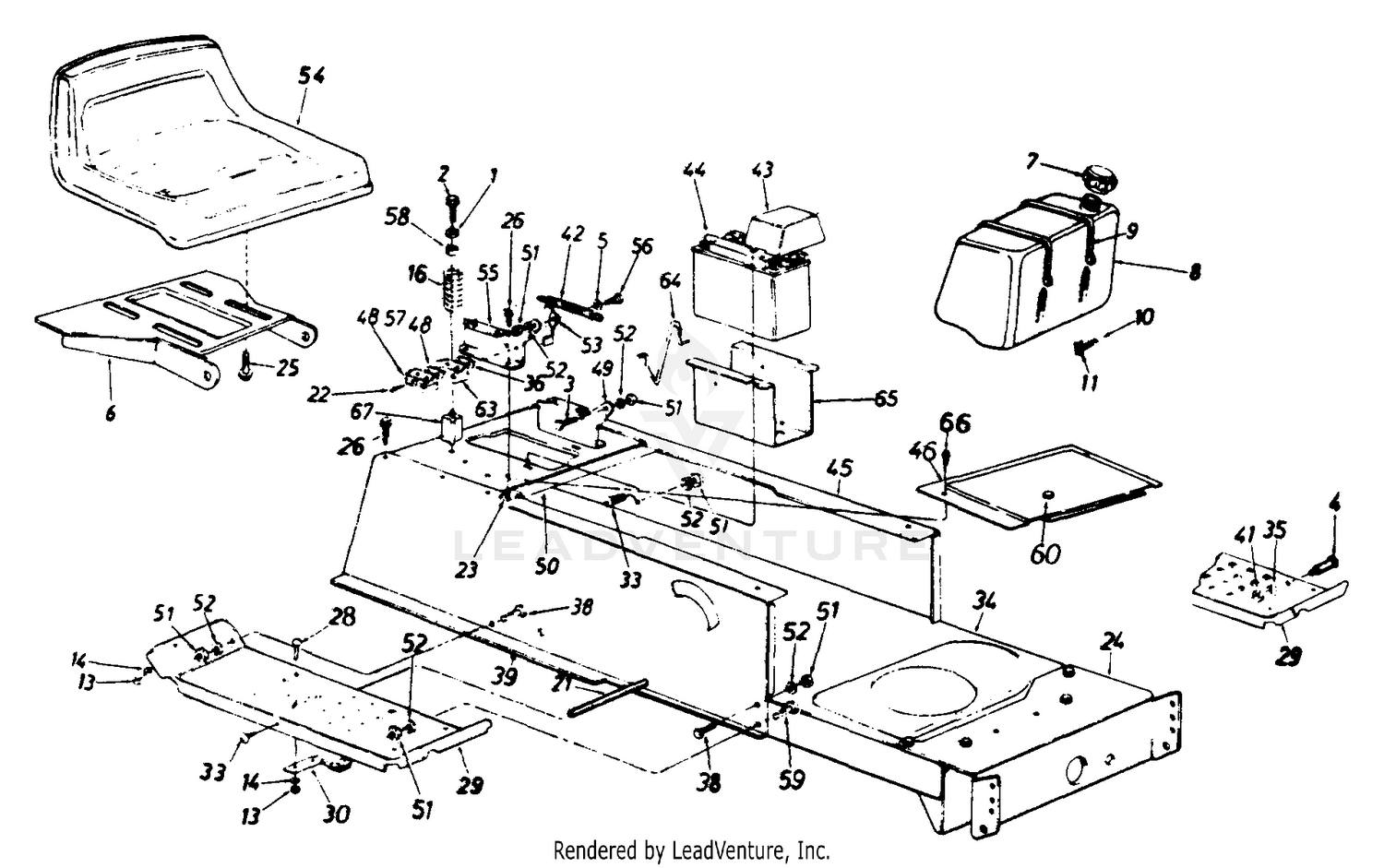

| Ref | Part Number | Description |
|---|
| 1 |
736-0159 |
Fl-Wash. .344" I.D. x.875" Price: $3.71 |
| 2 |
710-1208 |
Hex Wash. Hd. Tap Scr. 5/16-18 x 3.25" Lg. Price: $6.07 |
| 3 |
938-0155 |
Shoulder Bolt This part replaces 738-0155. Price: $6.01 |
| 4 |
738-0145 |
Shld. Bolt .50" Dia. x .84" Price: $6.01 |
| 5 |
936-0141 |
Spr. Wash. 7/16" I.D. This part replaces 736-0141. Price: $6.01 |
| 6 |
783-0039A |
SEAT PIVOT BRACKET Not Available This part replaces 15607D. Price: |
| 7 |
751-0603B |
TANK CAP This part replaces 751-3071. Price: $20.42 |
| 8 |
751-0555D |
FUEL TANK 1.36 GAL This part replaces 751-0553. Price: $78.46 |
| 9 |
726-0230 |
Cable Tie This part replaces 726-0209. Price: $23.95 |
| 10 |
751-22813-24 |
FUEL HOSE 1/4-24" This part replaces 751-0535-15. Price: $27.48 |
| 11 |
726-0205 |
Hose Clamp Price: $3.71 |
| 14 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 16 |
732-0735A |
COMPRESSION SPRING This part replaces 732-0672. Price: $27.35 |
| 21 |
738-0526 |
ROD-RUNNING BOARD Not Available Price: |
| 22 |
710-0227 |
Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg. Price: $3.90 |
| 23 |
726-0139 |
Speed Nut #10Z Price: $5.94 |
| 24 |
783-0041C |
PIVOT BAR BRACKET Not Available This part replaces 17621. Price: |
| 25 |
710-0623 |
Hex Tap Scr. 3/8-16 x .75" Price: $3.93 |
| 26 |
710-0726 |
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. Price: $3.82 |
| 29 |
17770H |
RUNNING BOARD Not Available This part replaces 17770. Price: |
| 30 |
961-0168D |
Blade Brake Assembly This part replaces 761-0168A. Price: $28.06 |
| 34 |
17620C |
LOWER FRAME Not Available Price: |
| 36 |
726-0278 |
Insulator Boss Plate Price: $5.95 |
| 42 |
732-581B |
Extension Spring 5.31" Lg. Price: Call Us |
| 43 |
731-1200 |
BATTERY COVER Not Available Price: |
| 44 |
753-0607 |
BATTERY Not Available This part replaces 725-1633. Price: |
| 46 |
17835 |
Shift Cover Price: Call Us |
| 48 |
726-0279 |
Insulator Plate Price: $3.22 |
| 49 |
17951A-0637 |
L.H. Pivot Seat Support Brkt. This part replaces 17951. Price: $23.40 |
| 50 |
17953 |
HITCH PLATE Not Available Price: |
| 53 |
17239C |
BRACKET-SEAT LIFT Not Available This part replaces 17239A. Price: |
| 54 |
957-0378 |
LOW BACK SEAT BLACK W/SWITCH Not Available This part replaces 757-0345. Price: |
| 55 |
17950A-0637 |
R. H. Pivot Seat Support Brkt. This part replaces 17950. Price: $20.39 |
| 56 |
738-0296 |
Shld. Bolt .437" Dia. x .268" Price: $3.93 |
| 57 |
925-1303 |
Outer Seat Spring Switch This part replaces 725-1303. Price: $5.58 |
| 58 |
722-0160 |
RUBBER BUSHING .318IDX.930OD Not Available Price: |
| 59 |
710-0650 |
Hex Wash. TT-Tap Scr. 5/16-18 x 7/8" Lg. Price: $3.71 |
| 60 |
731-0405 |
BUSHING Not Available Price: |
| 63 |
725-1439 |
Safety Switch (Seat) Price: $7.18 |
| 64 |
732-0674 |
CLIP-BATTERY TRAY Not Available Price: |
| 65 |
17952A-0637 |
BATTERY TRAY Not Available This part replaces 17952. Price: |
| 66 |
710-0351 |
Truss Mach. B-Tap Scr. #10 x .5" Lg. Price: $3.90 |
