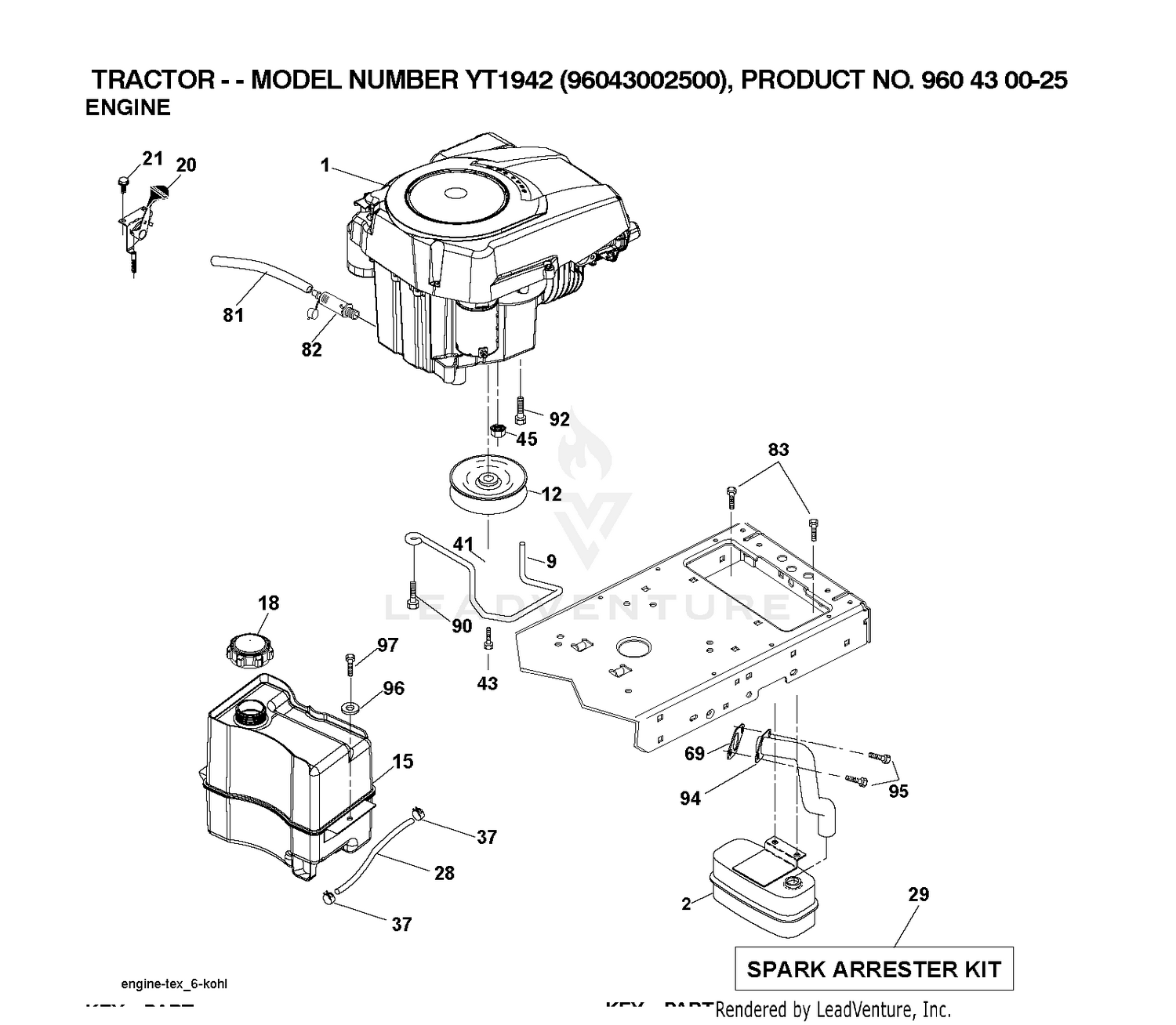

ENGINE

ENGINE

Parts (31)

RefPart NumberDescription
1 32128-39 NUT-HHF Price: $0.70
2 532188655 MUFFLER.SINGLE.CYL.KOHL/B&S Price: $39.99
3 104-1051-03 PLATE-SPINDLE Price: $59.54
4 127-6389 DECK CHAMBER SERVICE ASM Price: $1,496.66
5 237-161 O-RING Price: $6.06
6 121-3666 SPINDLE ASM This part replaces 115-3435. Price: $391.32
8 107-0235-03 BLADE-ATOMIC Price: $40.07
8 108-9026 BLADE-27", COMBO This part replaces 108-9026-03. Price: $33.66
9 532194319 KEEPER.BELT.ENGINE.3.25 (3 2) Price: $11.99
9 72-9361 CUP-SCALP, ANTI Price: $39.78
10 92-5816 BOLT-BLADE Price: $4.93
11 108-9025-0P BAFFLE-MULCHING This part replaces 108-9025-01. Price: $80.48
12 586729001 PULLEY.ENGINE This part replaces 532401985. Price: $27.99
15 581289901 FUEL.TANK.ASM.NON-EPA This part replaces 532407545. Price: $44.99
18 581075501 CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532197725. Price: $22.99
20 532176636 CONTROL.TH/CK.C.BLACK This part replaces 532183897. Price: $27.99
21 596321701 Screws This part replaces 532191611. Price: $2.99
28 587044822 HOSE.1/4".LOW.PERM.FUEL.LN.22" This part replaces 532401137. Price: $9.99
29 532137180 KIT.SPARK ARRESTOR 794945 B&S Price: $109.99
42 596238901 Washers This part replaces 810040700. Price: $2.99
43 501606501 BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99
45 586668901 NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99
81 148456 Tube Drain Oil Easy Price: Call Us
82 181654 Plug Drain Oil Price: Call Us
83 532171877 BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99
90 817000616 SCREW 3/8-16X1 Price: $5.99
92 817120616 SCREW 3/8-16X1 Price: $4.99
94 583955301 TUBE.EXHAUST.KOHLER.COURAGE This part replaces 532188654. Price: $27.99
95 596134201 Screws This part replaces 532192334. Price: $2.99
96 596135301 Washers This part replaces 819091416. Price: $2.99
97 817670412 SCREW HEXWSHR 1/4-20X3/4 Price: $3.99
