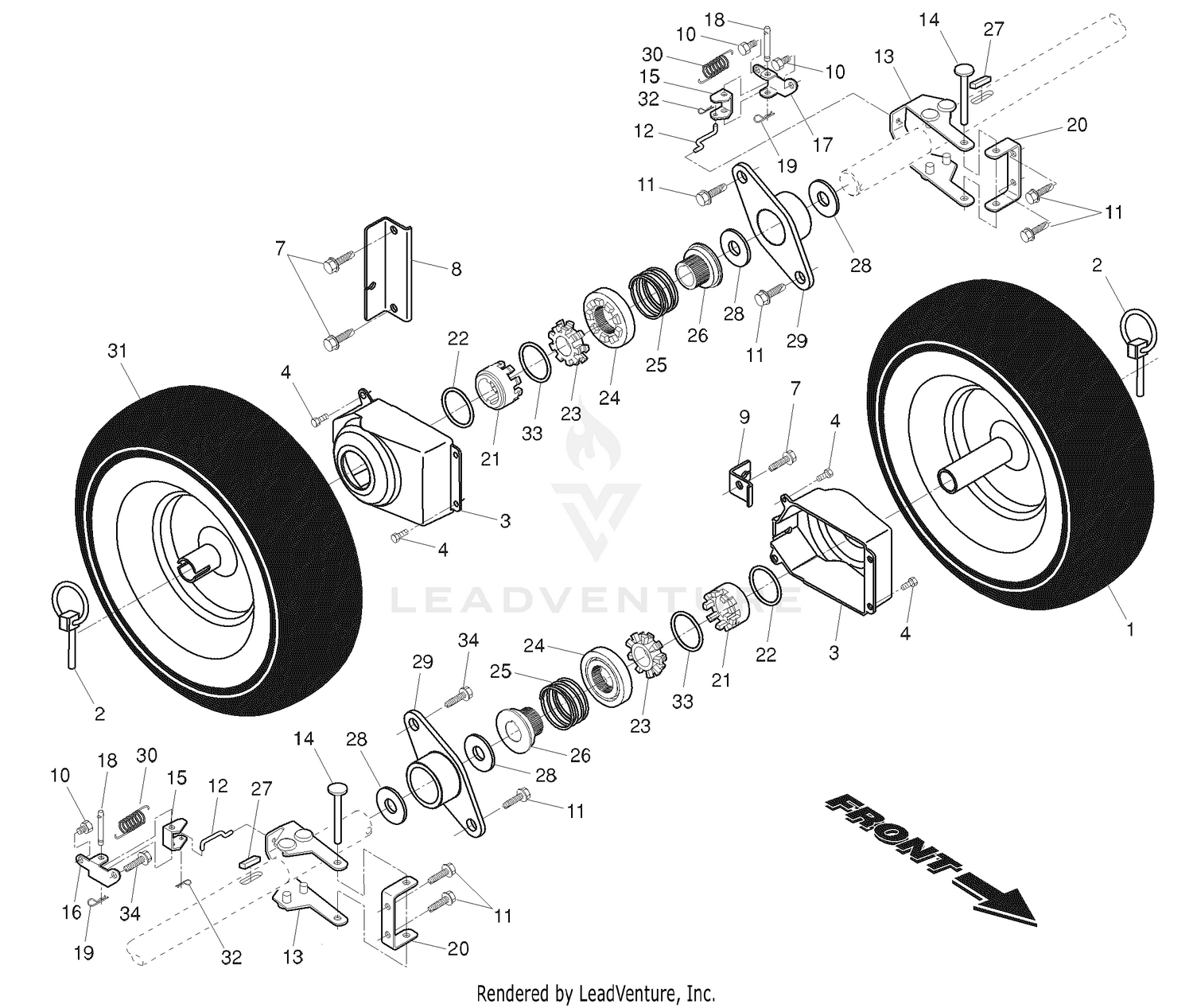

| Ref | Part Number | Description |
|---|
| 1 |
532439408 |
WHEEL.16X4.8.LH.1.0O.PS.BLACK This part replaces 532199501. Price: $139.99 |
| 1 |
56-6710 |
O-RING Price: $3.82 |
| 2 |
532155443 |
PIN KLIK, 1/4 Price: $3.99 |
| 3 |
532405161 |
COVER, POWER STEERING Price: $8.99 |
| 4 |
594975601 |
Screws This part replaces 532184471. Price: $1.99 |
| 7 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 7 |
94-3011 |
PLUG Price: $14.66 |
| 8 |
532185603 |
BRACKET, STEERING CABLE RH This part replaces 532187859. Price: $6.99 |
| 9 |
532415263 |
BRACKET.STEER.CABLE.LH.BZP This part replaces 532187858. Price: $3.99 |
| 9 |
74-8920 |
WASHER-COPPER Price: $37.32 |
| 10 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 10 |
94-3012 |
CAPSCREW Price: $53.01 |
| 11 |
49-2640 |
SEAL-SHAFT Price: $14.83 |
| 11 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 12 |
532405077 |
LINK.STEER.YOKE Price: $7.99 |
| 12 |
60-5890 |
WASHER Price: $4.68 |
| 13 |
532195919 |
Yoke, Steering Price: Call Us |
| 14 |
532182015 |
PIN, STEERING LEVER Price: $2.99 |
| 15 |
532194944 |
BELLCRANK.STEER.YZP This part replaces 532199518. Price: $3.99 |
| 16 |
532194939 |
BRACKET.STEER.PIVOT.LH.YZ This part replaces 532199512. Price: $4.99 |
| 17 |
532194943 |
BRACKET.STEER.PIVOT.RH This part replaces 532199511. Price: $3.99 |
| 18 |
532181847 |
PIN, STEERING BELLCRANK Price: $4.99 |
| 19 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 20 |
532184197 |
BRACKET.STEER.PNT.BLACK Price: $4.99 |
| 21 |
581645001 |
DRIVER.WHEEL This part replaces 532192126. Price: $27.99 |
| 22 |
532182466 |
RING, WIRE RETAINER Price: $3.99 |
| 23 |
532187622 |
LOBE WHEEL Price: $32.99 |
| 23 |
94-3013 |
PLUG Price: $123.44 |
| 24 |
581644901 |
SLIDE.CLUTCH.SNOW This part replaces 532194941. Price: $34.99 |
| 25 |
532179139 |
SPRING, CLUTCH SLIDE Price: $4.99 |
| 26 |
581645101 |
LOBE.AXLE This part replaces 532194940. Price: $8.99 |
| 26 |
94-3014 |
RELIEF VALVE ASM Price: $510.66 |
| 27 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $4.99 |
| 29 |
532179830 |
BEARING, AXLE Price: $17.99 |
| 30 |
532193885 |
SPRING LATCH Price: $3.99 |
| 31 |
532198267 |
KIT.WHEEL.HD.RH.16".GREY.SNOW This part replaces 532199502. Price: $149.99 |
| 32 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 33 |
812000045 |
RING Price: $5.99 |
