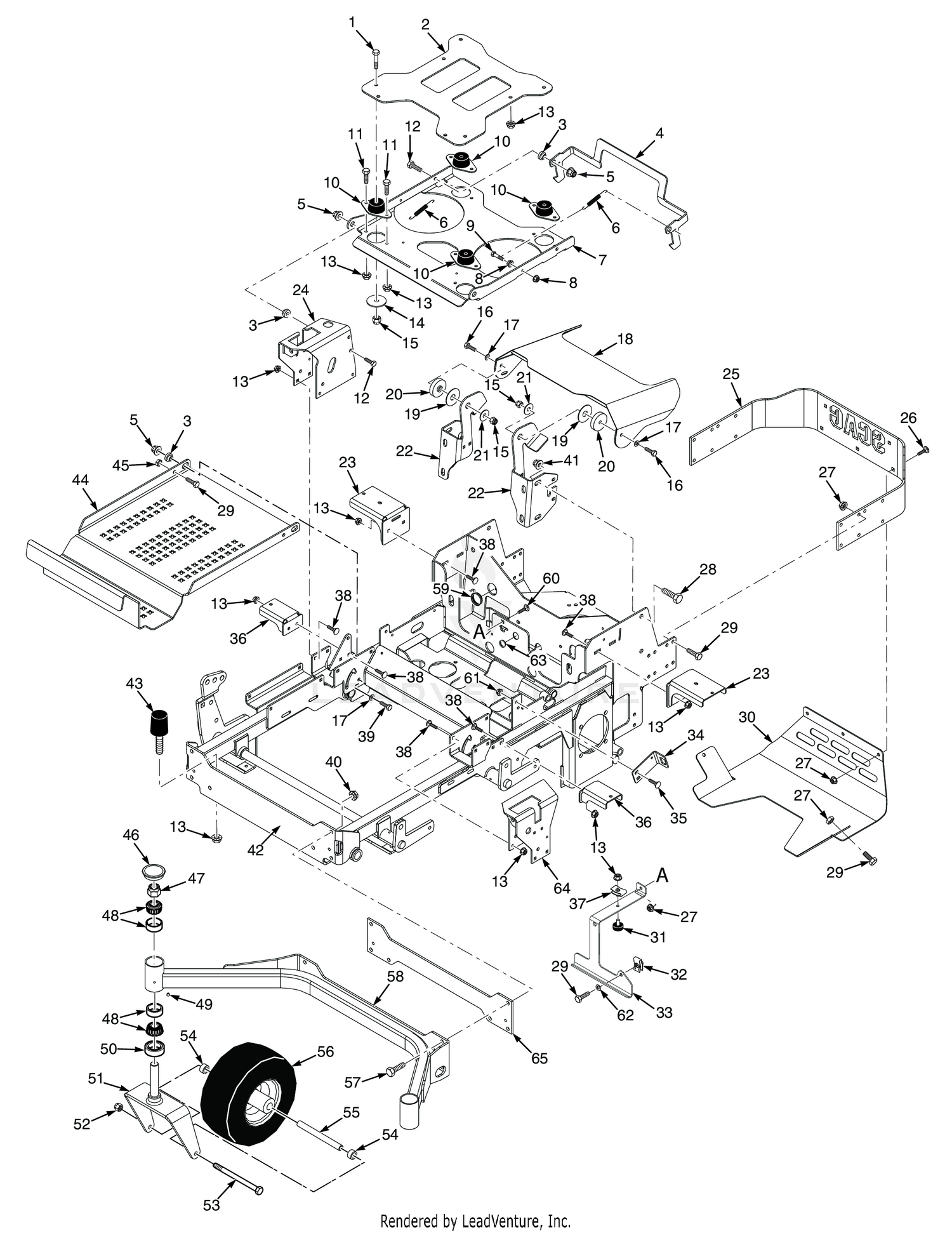

| Ref | Part Number | Description |
|---|
| 1 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" - 61" Price: Call Us |
| 2 |
462863 |
Seat Plate w/decal Price: Call Us |
| 3 |
43086 |
BUSHING, SPEED ADJUSTMENT LEVER Price: Call Us |
| 4 |
426949 |
Seat Latch Price: Call Us |
| 5 |
04117-02 |
Nut, Flange Elastic Stop Nut, 3/8-16 Price: Call Us |
| 6 |
484498 |
Spring, Seat Latch Price: Call Us |
| 7 |
463106 |
Plate, Seat Mounting w/decals Price: Call Us |
| 8 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 9 |
04001-59 |
SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4 Price: Call Us |
| 10 |
484148 |
Isolator, Seat Price: Call Us |
| 11 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 12 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 13 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 14 |
04041-38 |
Flatwasher, 3/8-.406 x 2.25" x .1875 Price: Call Us |
| 15 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 16 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI) Price: Call Us |
| 17 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 18 |
462838 |
Hood Assembly Price: Call Us |
| 19 |
483471 |
Disc, Anti-Friction Price: Call Us |
| 20 |
43740 |
Spacer, Hood Price: Call Us |
| 21 |
04041-11 |
Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge Price: Call Us |
| 23 |
427063-G |
Mounting Bracket, Fuel Tank Rear (Scag Gold) Price: Call Us |
| 24 |
463326 |
Control Plate w/decal, RH Price: Call Us |
| 25 |
425725-G |
Bumper, Rear (Scag Gold) Price: Call Us |
| 26 |
04003-23 |
Carriage Bolt, 3/8-16 x 1.0" Price: Call Us |
| 27 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 28 |
04001-70 |
Bolt, Hex Head 1/2-13 x 1-1/4" Price: Call Us |
| 29 |
04001-19 |
Bolt, Hex Head, 3/8-16 x 1 Gr. 5 Price: Call Us |
| 30 |
32120-63 |
RING-RETAINING Price: $0.26 |
| 30 |
427032 |
Plate, Skid Price: Call Us |
| 31 |
481284 |
Bumper, Rubber 5/16-18 x 5/8" Price: Call Us |
| 31 |
88-8850 |
DISCONTINUED This part replaces 1-9119. Price: Call Us |
| 32 |
04110-03 |
U-Nut, 3/8-16 (short) Price: Call Us |
| 32 |
2412-39 |
CLAMP-R This part replaces 3-0460. Price: $1.70 |
| 33 |
255-5 |
BALL-STEEL Price: $1.86 |
| 33 |
427334-G |
Battery Hold Down (Scag Gold) Price: Call Us |
| 34 |
425905 |
Bracket, Operator Presence Switch Price: Call Us |
| 35 |
04003-02 |
Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4" Price: Call Us |
| 35 |
3-6801 |
KEY Price: $8.50 |
| 36 |
256-112 |
BUSHING Price: $1.29 |
| 36 |
425862-G |
Mounting Bracket, Fuel Tank Front (Scag Gold) Price: Call Us |
| 37 |
105-5368 |
PULLEY ASM This part replaces 3-0480. Price: $240.44 |
| 37 |
48030-18 |
Cable Clamp, Double Price: Call Us |
| 38 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 38 |
32120-64 |
RING-SNAP, EXTERNAL Price: $0.25 |
| 39 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 39 |
3-0472 |
DRIVER-CLUTCH Price: $37.24 |
| 40 |
04117-05 |
Nut, 7/16-14 Flange Elastic Stop Price: Call Us |
| 40 |
99-5902 |
DISC-CLUTCH This part replaces 3-0514. Price: $17.07 |
| 41 |
04117-04 |
Nut, Elastic Stop 1/2-13, (STT-52 & STTII-52) Price: Call Us |
| 41 |
3-0477 |
PLATE-CLUTCH Price: $29.40 |
| 42 |
3290-211 |
WASHER-SPRING Price: $4.89 |
| 43 |
3-0478 |
SPRING-CLUTCH Price: $37.47 |
| 43 |
485663 |
Rubber Isolator Price: Call Us |
| 44 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 44 |
428851-G |
Footplate (Scag Gold) Price: Call Us |
| 45 |
04020-12 |
Nut, Jam 3/8-16 Price: Call Us |
| 45 |
5-1423 |
HOUSING-CLUTCH Price: $170.16 |
| 46 |
484195 |
Cap, Grease Price: Call Us |
| 46 |
88-8810-01 |
COVER-CLUTCH This part replaces 5-1388. Price: $18.44 |
| 47 |
04021-20 |
Nut, Elastic Stop 1.0"-14 Price: Call Us |
| 47 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 48 |
321-3 |
SCREW-HH Price: $0.28 |
| 48 |
48668 |
Bearing Set Price: Call Us |
| 49 |
32120-65 |
RING-SNAP Price: $1.97 |
| 49 |
482028-01 |
Plug, 1/4-28 THD Form Price: Call Us |
| 50 |
3-0481 |
WASHER-CLUTCH Price: $5.02 |
| 50 |
481025 |
Seal, 2.00" O.D. x 1.625" Bore Price: Call Us |
| 51 |
3290-264 |
WASHER-WAVE Price: $2.46 |
| 51 |
453007 |
Yoke Weldment, (Black)) Price: Call Us |
| 52 |
04021-07 |
HEX LOCKNUT, ELASTIC STOP, 1/2-13 Price: Call Us |
| 52 |
3-4066 |
BUSHING Price: $2.78 |
| 53 |
04001-167 |
Bolt, Hex Head 1/2-13 x 9-1/2" (61V & 72A/VS) Price: Call Us |
| 53 |
251-140 |
BEARING-BALL Price: $121.27 |
| 54 |
3-0471 |
PLATE-BACKING, CLUTCH Price: $45.90 |
| 54 |
43584 |
Spacer, Caster Wheel Price: Call Us |
| 55 |
255-8 |
BALL-STEEL Price: $4.60 |
| 55 |
43583 |
Sleeve, Caster Wheel (61V, 72A/VS) Price: Call Us |
| 56 |
3-0470 |
DISCONTINUED Price: Call Us |
| 56 |
9278 |
Wheel Assy, 61V, 72V (Incl. 20, 54, 55) Price: Call Us |
| 57 |
04001-28 |
BOLT, HEX HEAD, 7/16-14 X 1-1/4 Price: Call Us |
| 57 |
3-0475 |
CLUTCH PIN Price: $20.13 |
| 58 |
452284 |
Caster Support Weldment (48"/52") Price: Call Us |
| 59 |
484617 |
Bushing, Thick Panel Snap Price: Call Us |
| 60 |
04003-31 |
Bolt, Carriage 3/8-16 x 3/4" Price: Call Us |
| 61 |
04021-08 |
HEX, NUT, ELASTIC STOP LOCK, 1/4-20 Price: Call Us |
| 62 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 63 |
486019 |
Bushing, Thick Panel Snap - 1" Price: Call Us |
| 64 |
463325 |
Control Plate w/decal, LH Price: Call Us |
| 924C |
Caster |
Wheel Assembly (Black) Price: Call Us 924C |
