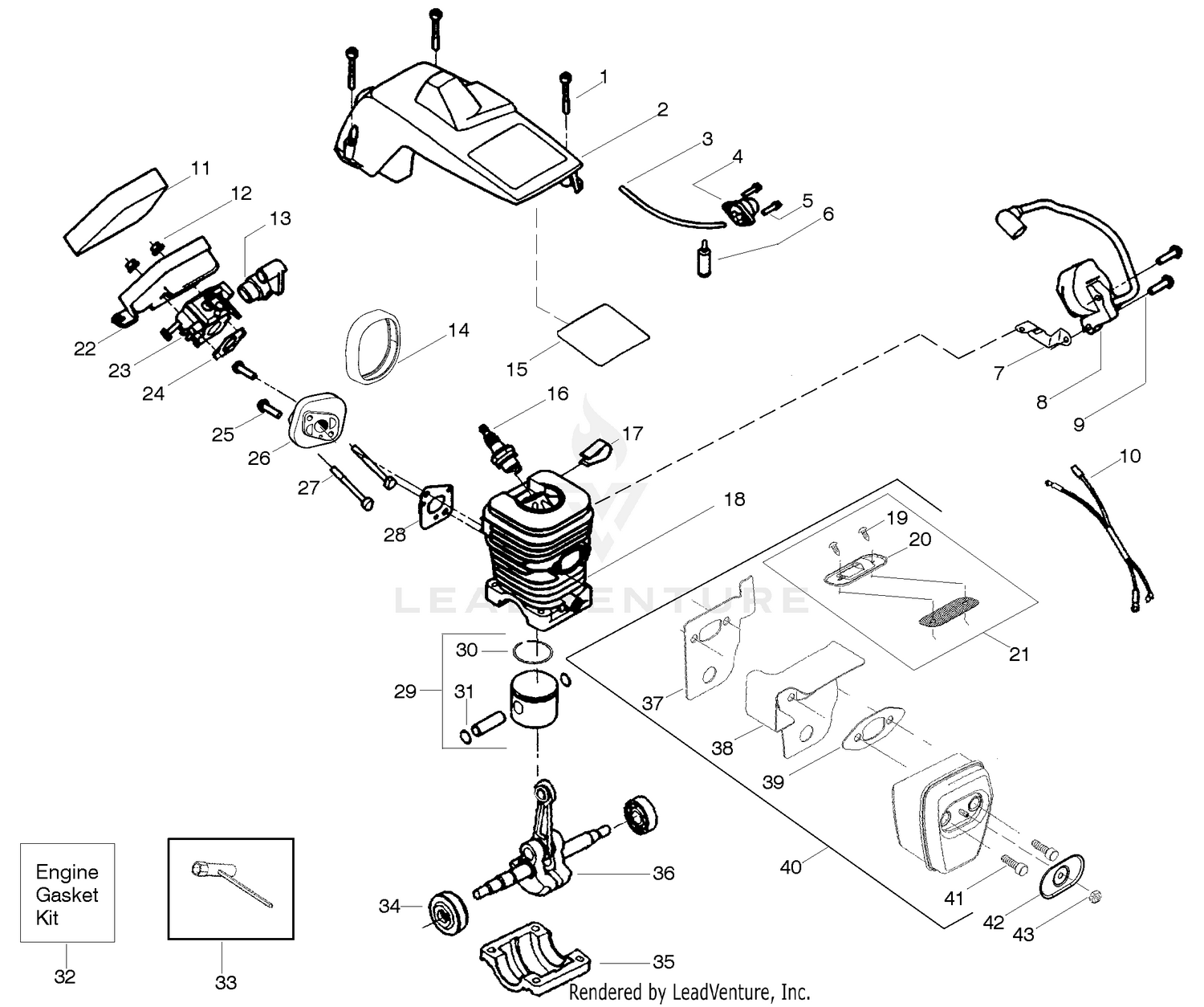

Engine
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530016153 | Screw Price: $1.99 |
| 3 | 530069247 | Kit-Fuel Line (Small) Price: $3.69 |
| 4 | 530071835 | Kit- Air Purge This part replaces 530047213. Price: $5.99 |
| 5 | 530015780 | Screw Price: $1.99 |
| 6 | 530095646 | Assy-Fuel Pick-up Price: $2.69 |
| 7 | 530047442 | Strap-Ground Price: $1.99 |
| 8 | 530039198 | Ignition Module Price: $29.99 |
| 9 | 530015814 | Screw Price: $1.49 |
| 10 | 105-3735 | CONTROL PLATE ASM Price: $167.82 |
| 10 | 530052296 | Assy-Wire Harness Price: $4.99 |
| 11 | 530037793 | Foam- Air Filter Price: $1.99 |
| 12 | 530016101 | Nut Price: $1.99 |
| 13 | 530035526 | Grommet-Carb Adjust Price: Call Us |
| 14 | 530054144 | Seal-Carb Adapter Price: $2.99 |
| 15 | 530055698 | Reflector-Heat Price: $1.99 |
| 16 | 503235111 | BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.69 |
| 17 | 530016136 | Clip-High Tension Lead Price: $1.99 |
| 18 | 530012550 | Cylinder Price: $17.99 |
| 19 | 530016351 | Screw-Outlet cover Price: $1.99 |
| 20 | 530054883 | Cover-Outlet Price: Call Us |
| 20 | 98-9662 | LEVER-CONTROL, SPEED Price: $72.44 |
| 22 | 530057480 | Air Filter Housing Price: $4.99 |
| 24 | 530069608 | Gasket-Carb. (kit) Price: $5.99 |
| 25 | 530016386 | Screw Price: $5.99 |
| 26 | 530049700 | Carb. Adapter Price: $3.99 |
| 27 | 530016187 | Screw Price: $1.99 |
| 28 | 530069608 | Gasket- Adaptor(kit) Price: $5.99 |
| 30 | 545160401 | Ring-Piston This part replaces 530038729. Price: $2.99 |
| 30 | 98-9572 | LEVER-CONTROL, SPEED Price: $47.15 |
| 31 | 530015697 | Retainer-Piston Pin Price: $1.99 |
| 33 | 530031163 | Bar Wrench Price: $4.99 |
| 34 | 530056363 | Assy-Seal & Bearing Price: $11.99 |
| 35 | 530037935 | Cap-Crankcase Price: $8.99 |
| 36 | 530047062 | Assy-Crankshaft Price: $72.99 |
| 37 | 530054885 | Backplate Price: $5.99 |
| 38 | 530054880 | Guide-Outlet Price: $5.99 |
| 39 | 530069608 | Gasket-Muffler(kit) Price: $5.99 |
| 40 | 105-3788 | O-RING Price: $2.90 |
| 41 | 530016338 | Bolt-Muffler Price: $1.99 |
| 42 | 530055586 | Cover-Bolt Price: $0.99 |
| 43 | 574266401 | NUT 10MM BRASS This part replaces 530016359. Price: $1.99 |
| 50 | 98-7602 | PIN-SPRING Price: $0.64 |
| 60 | 98-9594 | WASHER-PLAIN Price: $2.49 |
| 70 | 98-9589 | NUT Price: $1.46 |
| 80 | 98-9658 | GOVERNOR LEVER ASM Price: $34.84 |
| 90 | 98-9663 | LEVER-STOP, ENGINE Price: $13.34 |
| 100 | 98-7601 | SEAL-OIL Price: $7.88 |
| 110 | 98-9472 | SPRING-RETURN Price: $8.91 |
| 120 | 98-9664 | SHAFT-LEVER, STOP Price: $33.92 |
| 130 | 98-9637 | GASKET Price: $3.98 |
| 140 | 98-7692 | BOLT Price: $0.92 |
| 150 | 99-8348 | BOLT Price: $0.24 |
| 160 | 98-7654 | GASKET Price: $8.84 |
| 170 | 105-3710 | STUD Price: $1.16 |
| 180 | 98-7572 | NUT Price: $0.32 |
