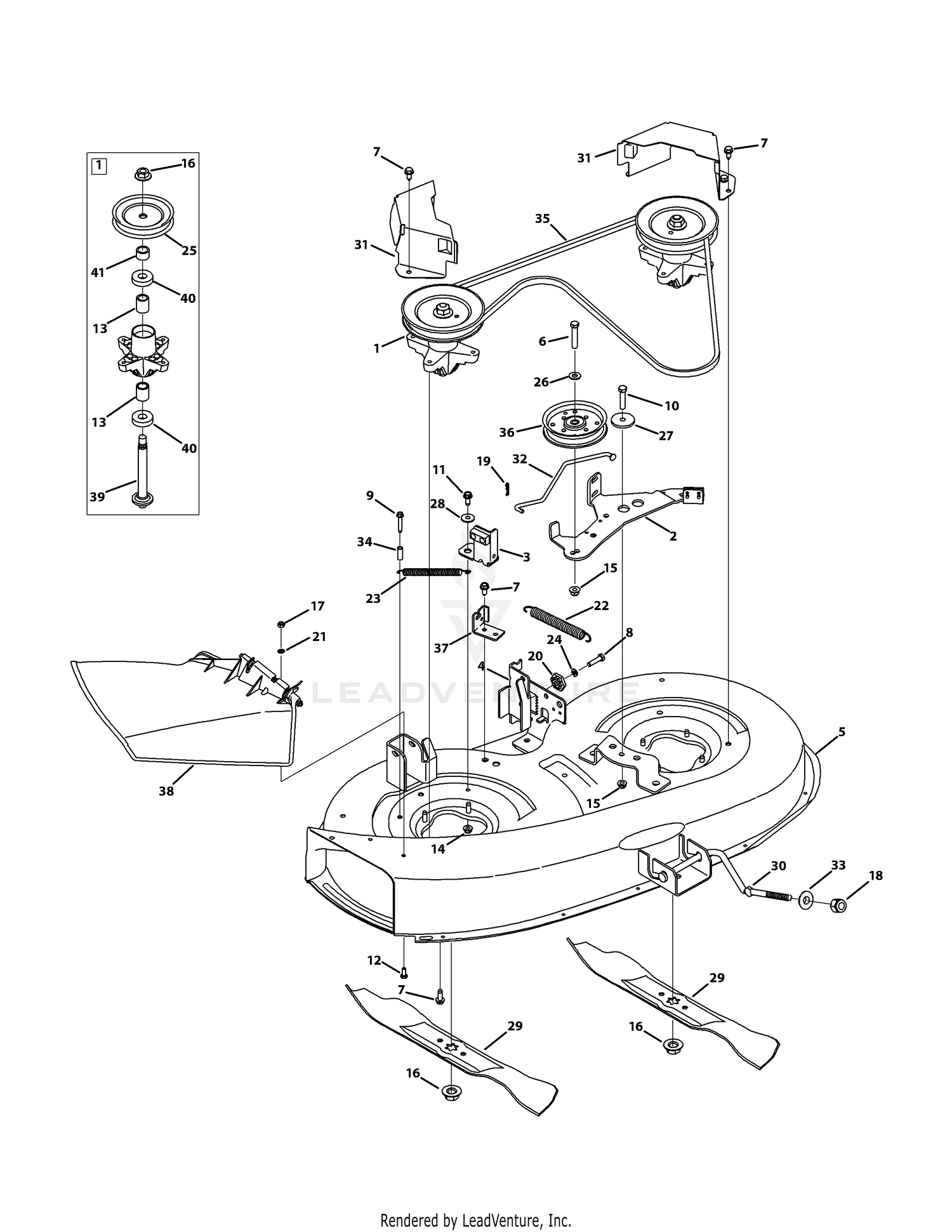

| Ref | Part Number | Description |
|---|
| 1 |
918-04474B |
SPINDLE ASSEMBLY This part replaces 918-04474A. Price: $105.41 |
| 3 |
983-04167 |
Deck Brake Assembly Price: $41.74 |
| 4 |
683-0254B |
Bracket Assembly, Deck, Hanger LH Not Available This part replaces 683-0254B-0637. Price: |
| 6 |
710-0347 |
Hex Screw, 3/8-16 x 1.75 Price: $4.39 |
| 7 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 8 |
710-0528 |
Hex Screw, 5/16-18 x 1.25 Price: $3.90 |
| 9 |
710-0778 |
Screw, 1/4-20 x 1.50 Price: $3.90 |
| 10 |
710-3005 |
Hex Screw, 3/8-16 x 1.25 Price: $3.61 |
| 11 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 12 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 13 |
750-1000 |
Spacer, .80 x 1.10 x 1.322 LG Price: $3.90 |
| 14 |
712-04063 |
Flangelock Nut, 5/16-18 Price: $3.56 |
| 15 |
712-04065 |
Flangelock Nut, 3/8-16 Price: $3.68 |
| 16 |
712-0417A |
HEX NUT Price: $6.50 |
| 17 |
712-04064 |
Flangelock Nut, 1/4-20 Price: $3.64 |
| 18 |
712-04243 |
Flangelock Nut, 1/2-13 Price: $3.52 |
| 19 |
714-0104 |
Hairpin Clip This part replaces 914-0104. Price: $3.90 |
| 20 |
917-04074 |
Deck Adjuster Gear Price: $11.45 |
| 21 |
726-0233 |
Push Nut, .25 x .50 Price: $3.93 |
| 22 |
732-04280B |
Extension Springing, .75 x 6.375 Price: $7.18 |
| 23 |
732-04287 |
Extension Springing, .500 x 6.375 Price: $14.19 |
| 24 |
936-0119 |
Lock Washer, 5/16 Price: $4.29 |
| 25 |
756-1188 |
Deck Pulley, 5.75 Price: $34.20 |
| 26 |
736-0300 |
Fl-Wash. .385" I.D. This part replaces 936-0300. Price: $3.93 |
| 27 |
738-04162C |
Shoulder Spacer, .8840 x .190 This part replaces 738-04162A. Price: $12.76 |
| 28 |
738-04166 |
Shoulder Spacer, .5000 x .1475 Price: $5.48 |
| 31 |
783-04602C-0637 |
Belt Cover This part replaces 783-04602A-0637. Price: $28.49 |
| 33 |
748-04069A |
DECK LIFT PIVOT CUP This part replaces 748-04069. Price: $4.93 |
| 34 |
750-0566A |
Spacer, .260 x .375 x 1.030 Price: $9.17 |
| 35 |
954-04062 |
V Type Belt Price: $44.51 |
| 36 |
753-08171 |
Pulley Kit, Idler, 4.25"Dia This part replaces 756-04129B. Price: $33.06 |
| 37 |
783-04740-0637 |
Deck Engage Cable Bracket Price: $9.09 |
| 38 |
631-05229 |
CHUTE ASSEMBLY This part replaces 931-1032B. Price: $71.37 |
| 39 |
938-04241 |
Spindle Shaft, 5.50 Price: $30.27 |
| 40 |
741P0919B |
BALL BEARING This part replaces 941-0919A. Price: $18.90 |
