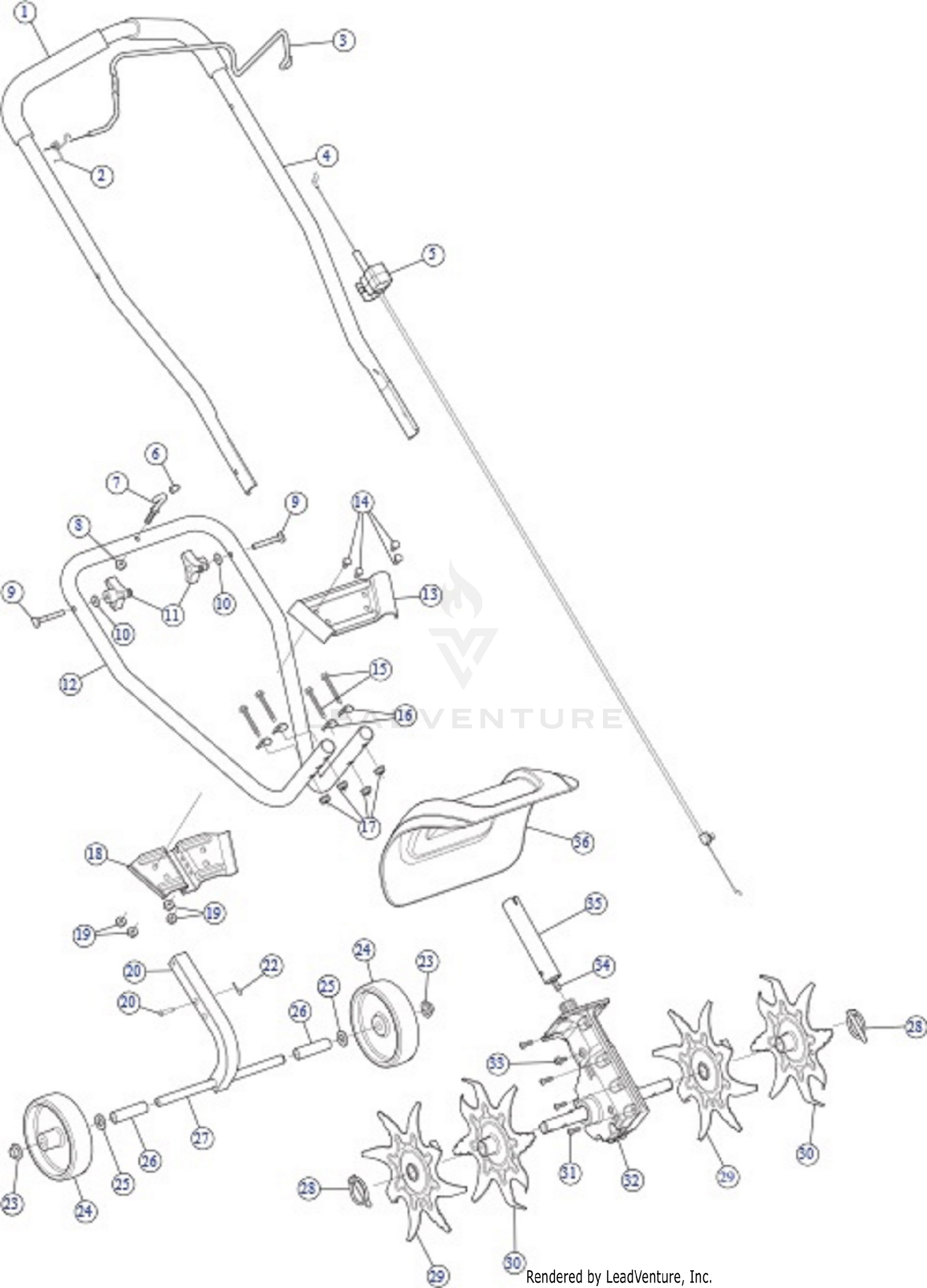

General Assembly — Parts Catalog

Ref	Part Number	Description
1	720-0294A	FOAM GRIP - 9" This part replaces 720-0294. Price: $6.41
2	753-05940	Spring Price: $3.21
3	753-06808	Throttle Price: $6.84
4	753-06319	HANDLE UPR Not Available Price:
5	753-06831	Throttle Cable Price: $10.27
6	735-04246	Cap Price: $2.63
7	10591	Eyelet Bolt Price: $6.42
8	712-04064	Nut Price: $3.64
9	791-182899	Bolt Price: $6.82
10	736-0451	Saddle Washer This part replaces 936-0451. Price: $3.75
11	791-182677	Knob Price: $12.48
12	753-06809	Handle Price: $21.71
13	753-06813	Upper Bracket Price: $3.90
14	710-3013	Screw Price: $4.02
15	710-1026	Bolt Price: $5.94
16	736-0451	Saddle Washer This part replaces 936-0451. Price: $3.75
17	912-3027	Nut Price: $3.85
18	753-06814	Lower Bracket Price: $4.20
19	912-3027	Nut Price: $3.85
20	753-06817	Square Tube Price: $10.27
21	714-04106	Clevis Pin Price: $2.83
22	714-0104	Hairpin Clip This part replaces 914-0104. Price: $3.90
23	726-0299	Cap Price: $7.03
24	753-04437	Wheel (Incl. 23) Price: $19.43
25	791-182910	Washer Price: $6.59
26	753-06815	Spacer Price: $2.83
27	753-06816	Axle Price: $4.80
28	753-05985	Clip Not Available Price:
29	753-05987	Tine (Left Inner, Right Outer) Price: $35.28
30	753-05986	Tine (Left Outer, Right Inner) Price: $35.28
31	791-182195	SCREW #10-24X11/16 T-25 Price: $6.20
32	753-06063	Gearbox (Incl. 31) Price: $117.17
33	710-0599	Screw Price: $3.86
34	753-04499	Flex Shaft Price: $26.32
35	753-06812	Tube (Incl. 34) Price: $9.14
