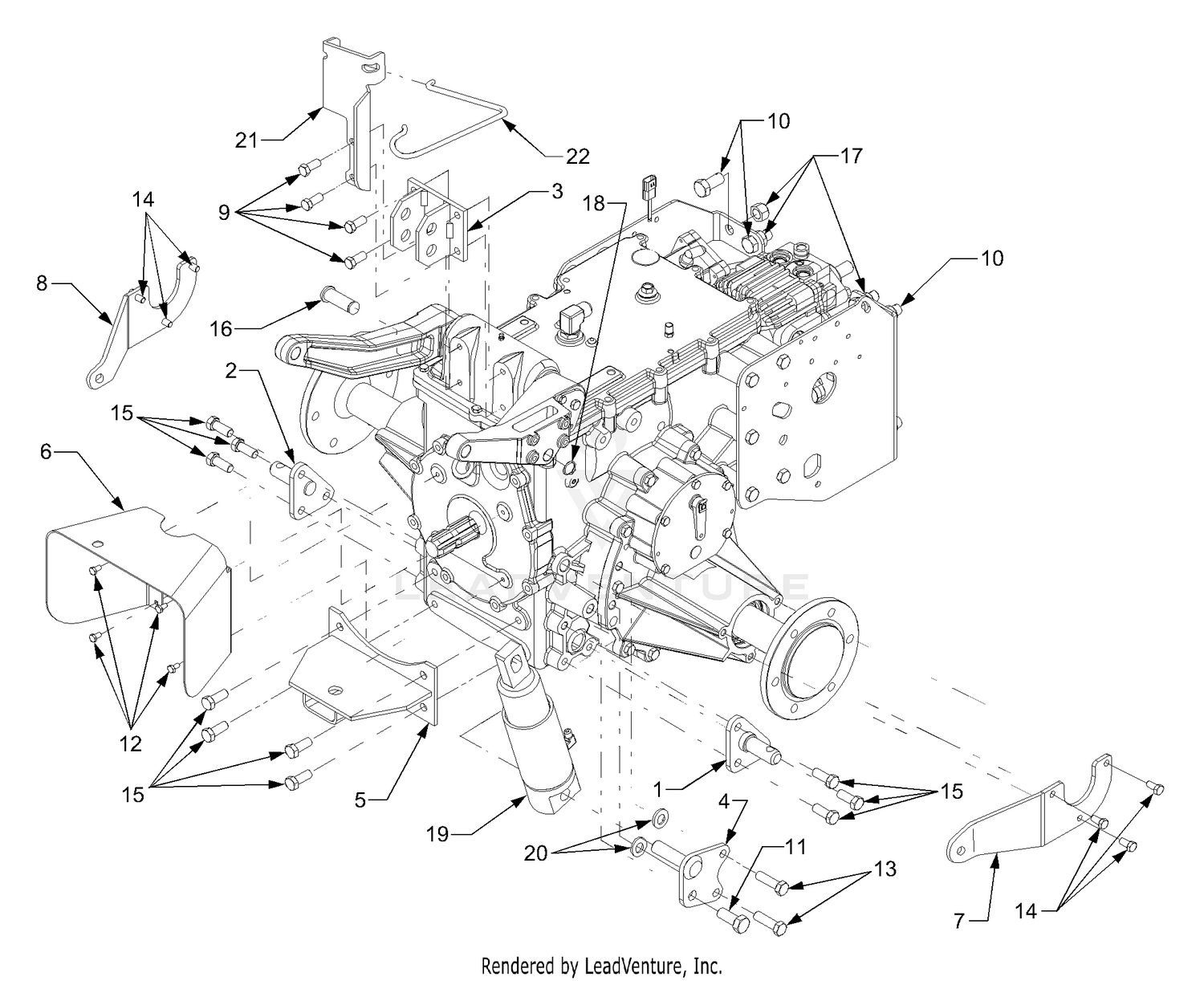

| Ref | Part Number | Description |
|---|
| 1 |
140341 |
SUB= 145501 Price: Call Us |
| 1 |
603-0748-0637 |
HITCH BRACKET (RH) (POWDER BLACK) Not Available Price: |
| 1 |
95-7539 |
CASE-GEAR, BEVEL Price: $212.14 |
| 2 |
140356 |
SUB= 145009 Price: Call Us |
| 2 |
603-0751-0637 |
HITCH BRACKET (LH) (POWDER BLACK) Not Available Price: |
| 2 |
99-7594 |
SEAL-OIL Price: $5.99 |
| 3 |
17490612 |
SCREW Price: Call Us |
| 3 |
603-0753-0637 |
TOP LINK BRACKET (POWDER BLACK) Not Available Price: |
| 3 |
99-7595 |
BEARING-NEEDLE Price: $118.02 |
| 4 |
106-1069 |
O-RING This part replaces 104-2372. Price: $5.20 |
| 4 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 4 |
603-0754A-0637 |
LIFT CYLINDER BRACKET (POWDER BLACK) Not Available Price: |
| 5 |
104-2373 |
KNUCKLE Price: $58.69 |
| 5 |
603-0758-0637 |
DRAWBAR BRACKET (POWDER BLACK) Not Available Price: |
| 6 |
104-2374 |
BOLT Price: $6.33 |
| 6 |
140169 |
SUB= 145206X431 Price: Call Us |
| 6 |
703-3542A |
REAR SHIELD Not Available Price: |
| 7 |
100-3746 |
AXLE CASE SUPPORT ASM, LH Price: $204.04 |
| 7 |
17490616 |
SCREW GTV Price: Call Us |
| 7 |
703-3548A |
CHAIN BRACKET (RH) Not Available Price: |
| 8 |
100-3748 |
AXLE CASE SUPPORT ASM, RH Price: $204.04 |
| 8 |
2751R |
CLIP T Price: Call Us |
| 8 |
703-3549A |
CHAIN BRACKET (LH) Not Available Price: |
| 9 |
140622 |
SUB= 532142467 Price: Call Us |
| 9 |
710-0505 |
Screw, Hex Cap 7/16-14 x 1/0 GR5 Price: $6.01 |
| 10 |
5479J |
PLUG BUTTON T Price: Call Us |
| 10 |
710-0964A |
Screw, Hex Cap 5/8-18 x 1.31 GR5 Price: $10.02 |
| 10 |
95-7547 |
SHIM 0.1 Price: $2.53 |
| 10 |
95-7548 |
SHIM 0.2 Price: $3.52 |
| 10 |
95-7549 |
SHIM 0.3 Price: $3.82 |
| 11 |
140311 |
PANEL ASM DASH Price: Call Us |
| 11 |
710-1515 |
SCREW 5/8-11 x 1.50 GR5 Not Available Price: |
| 11 |
99-7597 |
PIN-DOWEL Price: $3.74 |
| 12 |
710-3039 |
SCREW 5/16-18 x .50 GR5 Not Available Price: |
| 12 |
99-7598 |
BOLT Price: $7.67 |
| 13 |
100-3736 |
BOLT Price: $0.85 |
| 13 |
140178 |
SUB= 146959 Price: Call Us |
| 13 |
710-3067 |
Screw, Hex Cap 1/2-13 x 1.75 GR5 Price: $6.06 |
| 14 |
100-3737 |
STUD Price: $1.56 |
| 14 |
17490608 |
SCREW LT Price: Call Us |
| 14 |
710-3119 |
Screw, Hex Cap 3/8-16 x .75 GR5 Price: $5.91 |
| 15 |
710-3131 |
Screw, Hex Cap 1/2-13 x 1.0 GR5 Price: $4.69 |
| 15 |
74780412 |
SUB= 74780414 Price: Call Us |
| 15 |
99-7526 |
NUT Price: $1.29 |
| 16 |
711-1503 |
LIFT PIN .75 x 2.125 Not Available Price: |
| 16 |
73510400 |
NUT Price: Call Us |
| 16 |
99-7527 |
WASHER-SPRING Price: $1.02 |
| 17 |
139394X505 |
SUB= 159639X505 Price: Call Us |
| 17 |
712-3063 |
Nut, Hex Lock, 5/8-18 Price: $7.26 |
| 18 |
716-0101 |
Ring, Snap, 75 Dia Price: $3.37 |
| 19 |
917-3504 |
HITCH LIFT CYLINDER Not Available This part replaces 717-3504. Price: |
| 20 |
736-0192 |
Washer, Flat, .531 x .93 x .09 Price: $3.75 |
| 21 |
703-05133 |
RETAINER BRACKET Not Available Price: |
| 24 |
74760612 |
SUB= 74780612 Price: Call Us |
| 25 |
19131312 |
WASHER Price: Call Us |
| 26 |
73680600 |
SUB= 73690600 Price: Call Us |
| 28 |
140141 |
SUB= 157373 Price: Call Us |
| 29 |
140278 |
HANDLE.LIFT.LH. Price: Call Us |
| 30 |
140001X505 |
FENDER PNT LT Price: Call Us |
| 31 |
136619 |
BRKT FENDER Price: Call Us |
| 32 |
17490612 |
SCREW Price: Call Us |
| 33 |
105465X505 |
SUB= 145244X505 Price: Call Us |
| 34 |
105464X505 |
SUB= 145243X505 Price: Call Us |
| 35 |
72110606 |
BOLT Price: Call Us |
| 36 |
73680600 |
SUB= 73690600 Price: Call Us |
| 37 |
133671 |
FOOTREST PAD Price: Call Us |
| 38 |
139886 |
BRACKET ASM LH Price: Call Us |
| 39 |
139887 |
BRACKET ASM RH Price: Call Us |
| 50 |
73800600 |
NUT Price: Call Us |
| 51 |
19131216 |
WASHER Price: Call Us |
| 53 |
72140608 |
SUB= 72110608 Price: Call Us |
| 54 |
74760614 |
SUB= 74760616 Price: Call Us |
| 56 |
140281 |
SUB= 140281X431 Price: Call Us |
| 57 |
17490512 |
SCREW Price: Call Us |
| 58 |
140806 |
DUCT AIR 12-15H Price: Call Us |
| 59 |
19171416 |
WASHER Price: Call Us |
| 60 |
139977 |
SPACER FENDER LT Price: Call Us |
| 61 |
139978 |
PLATE EXTEN FEND Price: Call Us |
| 62 |
124028X |
SUB= 532124028 Price: Call Us |
| 66 |
11050600 |
LOCKWASHER Price: Call Us |
| 67 |
19091416 |
WASHER Price: Call Us |
| 68 |
140219 |
HING PICK-OFF HD Price: Call Us |
| 69 |
74760412 |
BOLT LT Price: Call Us |
| 70 |
73680400 |
SUB= 73690400 Price: Call Us |
| 72 |
17030814 |
SUB= 91817030814 Price: Call Us |
| 73 |
142779 |
BRACE SUPT DASH Price: Call Us |
| 74 |
19091416 |
WASHER Price: Call Us |
| 75 |
73800400 |
NUT Price: Call Us |
| 77 |
72110608 |
BOLT D Price: Call Us |
| 777S30634 |
LABEL-PTO |
SHIELD W Not Available Price: 777S30634 |
