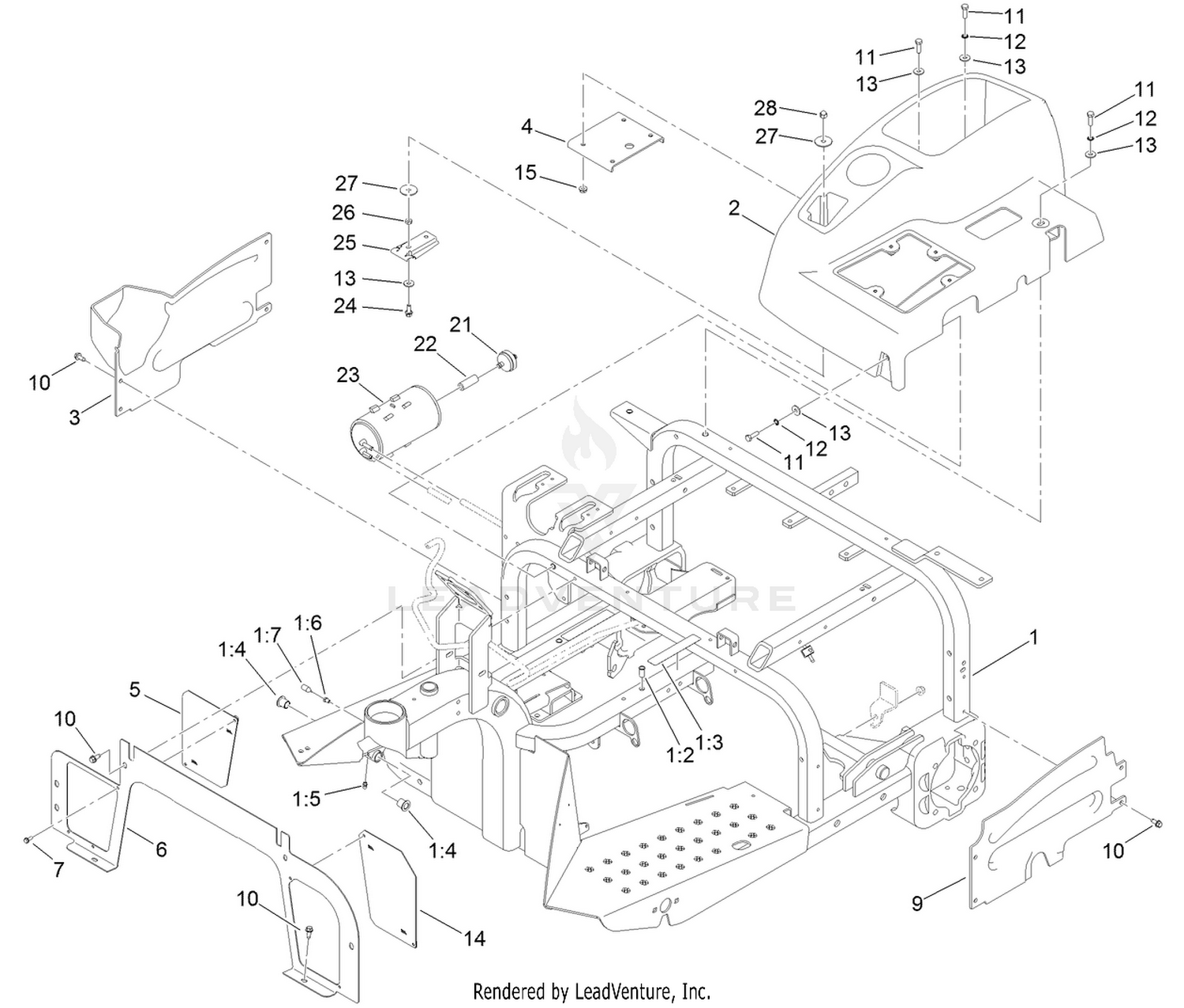

Frame and Console Assembly
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-3367 | FRAME ASM Price: $4,732.29 |
| 2 | 108-2936 | CONSOLE Price: $301.59 |
| 3 | 108-6855 | SHROUD-WHEEL, RH Price: $136.32 |
| 4 | 108-7995-03 | PLATE-SUPPORT, CONSOLE Price: $21.76 |
| 5 | 120-3492-01 | SCREEN-PANEL, RH Price: $51.19 |
| 6 | 112-1443-01 | PANEL-FRONT Price: $123.71 |
| 7 | 3290-321 | SCREW-HWH Price: $3.99 |
| 9 | 108-6856 | SHROUD-WHEEL, LH Price: $136.32 |
| 10 | 32144-10 | SCREW-HWH Price: $4.29 |
| 11 | 321-5 | SCREW-HH Price: $0.22 |
| 12 | 3254-8 | WASHER-LOCK Price: $0.37 |
| 13 | 3256-78 | WASHER-FLAT Price: $1.21 |
| 14 | 120-3491-01 | SCREEN-PANEL, LH Price: $51.19 |
| 15 | 32128-33 | NUT-HF Price: $0.25 |
| 21 | 115-7854 | FILTER-FUEL, INLINE Price: $6.69 |
| 22 | 106-5317 | HOSE-FUEL Price: $3.52 |
| 23 | 127-8685 | CANISTER-CARBON Price: $46.53 |
| 24 | 3234-33 | SCREW-HHF Price: $0.79 |
| 25 | 114-0292 | BRACKET-CANISTER, CARBON Price: $7.79 |
| 26 | 3218-1 | NUT-JAM Price: $1.29 |
| 27 | 3256-57 | WASHER-FLAT Price: $0.41 |
