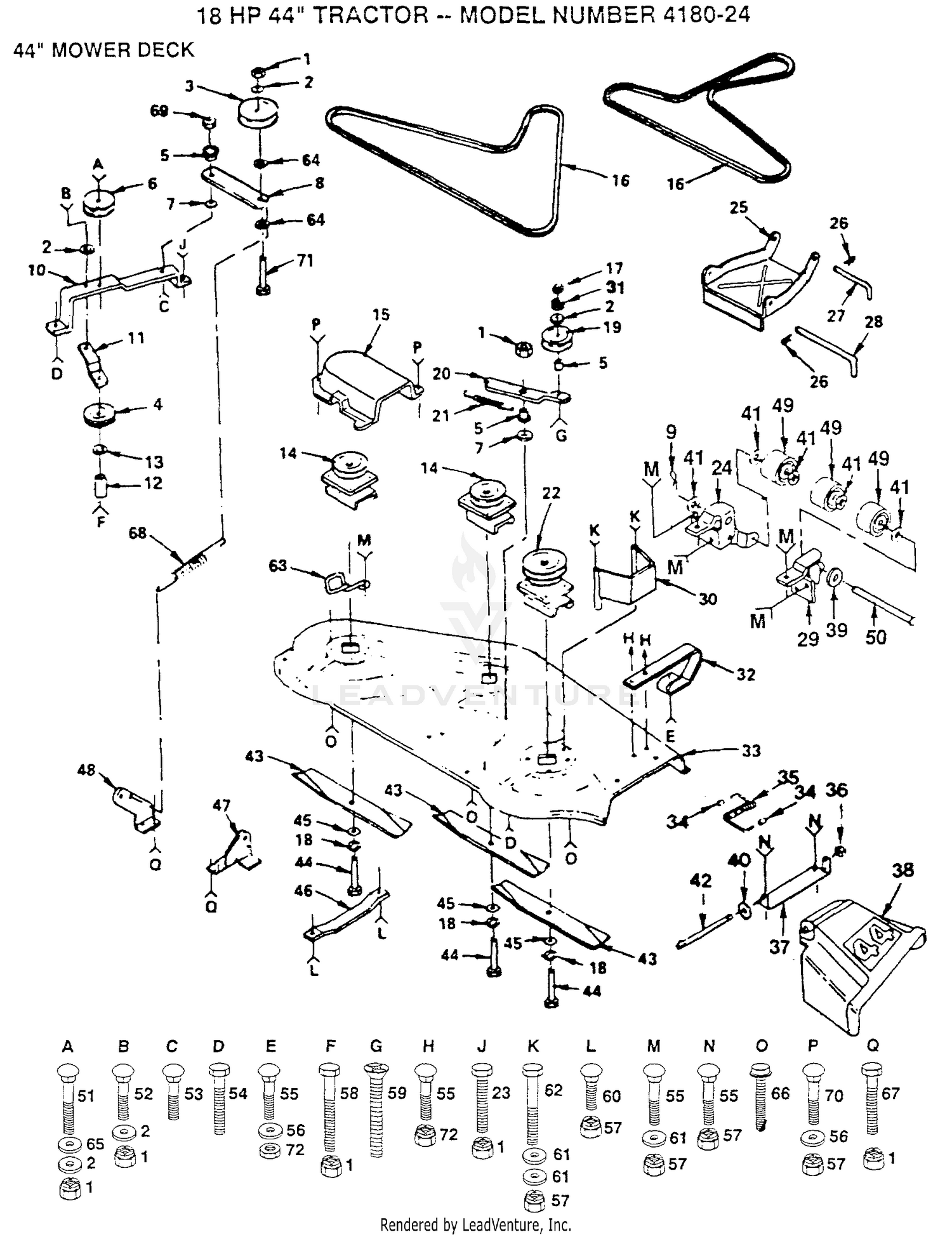

44" MOWER DECK

44" MOWER DECK

Parts (90)

RefPart NumberDescription
1 23-7270 NUT-LUG Price: $10.37
1 73680600 SUB= 73690600 Price: Call Us
2 19131614 WASHER Price: Call Us
2 42-6080 SHIM-AXLE Price: $29.45
3 121316X PULLEY IDLER Price: Call Us
3 66-6480 WASHER Price: $1.29
4 102403X IDLER-FLAT T Price: Call Us
4 3256-22 WASHER-FLAT Price: $0.39
5 106902X SPACER RETAINER Price: Call Us
5 3296-48 NUT-LOCK, NI Price: $0.37
6 677A451 IDLER-INSIDE T Price: Call Us
6 99-6981-03 DISCONTINUED Price: Call Us
7 3272-10 PIN-COTTER Price: $0.25
8 121425X ARM IDLER Price: Call Us
8 75-6850 DISCONTINUED Price: Call Us
9 27-3710 DIPSTICK Price: $24.62
9 76020412 COTTER PIN Price: Call Us
10 85-4330 COVER-GEAR Price: $9.42
11 106522X BRACE-IDLER YT Price: Call Us
11 237-181 O-RING Price: $2.48
12 121236X SPACER Price: Call Us
12 3218-1 NUT-JAM Price: $1.29
13 19131316 WASHER Price: Call Us
13 85-4350 SENSOR-GEARTOOTH Price: $310.23
14 121622X SUB= 136819 Price: Call Us
15 106214X GUARD YT Price: Call Us
15 32108-9 SCREW-FH Price: $2.55
16 106085X BELT-V.79.1.MWR Price: Call Us
16 76-8730 DECAL-TORQUE, WHEEL Price: $7.93
17 3296-56 NUT-LOCK, NI Price: $2.09
17 73220600 NUT.HEX.3/8-16UNC Price: Call Us
18 10030600 SUB= 10040600 Price: Call Us
18 321-2 SCREW-HH Price: $2.79
19 102932X IDLER.FLAT.GTV Price: Call Us
19 3253-3 WASHER-LOCK Price: $0.31
20 106526X ARM-IDLER YT Price: Call Us
20 85-4340 PLATE-MOUNTING, SENSOR Price: $52.00
21 32144-112 SCREW-HWH Price: $0.99
21 7644J SPRING T Price: Call Us
22 121704X SUB= 121705X Price: Call Us
22 92-5797 GASKET-AXLE Price: $8.68
23 74760616 BOLT Price: Call Us
24 109599X BRACKET LH YTH Price: Call Us
24 324-7 SCREW-HH Price: $1.79
25 105662X LINK.PARALLEL Price: Call Us
26 4921H SPRING.RETAINER Price: Call Us
28 109835X HINGE PIN T Price: Call Us
29 109600X BRACKET RH YTH Price: Call Us
30 108119X GUARD BELT HYT Price: Call Us
31 10040600 Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us
32 8418J SUB= 136321 Price: Call Us
33 121423X SUB= 144729 Price: Call Us
34 105304X CAP-SLEEVE LT Price: Call Us
35 106734X SUB= 123713X Price: Call Us
36 110452X NUT PUSH M Price: Call Us
37 109743X SUB= 137607 Price: Call Us
38 109785X DEFLECTOR SHIELD Price: Call Us
39 19151616 SUB= 19171616 Price: Call Us
40 19111016 WASHER Price: Call Us
41 19151610 WASHER T Price: Call Us
42 106735X ROD-HINGE T Price: Call Us
43 106635X SUB= 25034 Price: Call Us
44 74610624 BOLT.3/8-24X1-1/2 Price: Call Us
45 19132012 WASHER Price: Call Us
46 7631J RUNNER-LH M Price: Call Us
47 123807X BRKT SUSP REAR RH Price: Call Us
48 123808X BRKT SUSP REAR LH Price: Call Us
49 109729X ROLLER T Price: Call Us
50 109776X PIVOT PIN T Price: Call Us
51 72140614 BOLT Price: Call Us
52 72140608 SUB= 72110608 Price: Call Us
53 72140612 BOLT Price: Call Us
54 74760620 Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us
55 72140506 BOLT Price: Call Us
56 19111116 WASHER Price: Call Us
57 73680500 SUB= 73690500 Price: Call Us
58 74760648 BOLT - HEX 3/8 - 16 X 3 Price: Call Us
59 74110632 SCREW YT Price: Call Us
60 72110505 BOLT Price: Call Us
61 19111216 WASHER M Price: Call Us
62 74760580 BOLT Price: Call Us
63 121352X BELT RETIANER Price: Call Us
64 19131210 WASHER Price: Call Us
65 19131410 WASHER Price: Call Us
66 17490612 SCREW Price: Call Us
67 72140606 BOLT Price: Call Us
69 73930600 LOCKNUT Price: Call Us
70 72110506 SUB= 72270506 Price: Call Us
71 72140620 BOLT Price: Call Us
72 1685H SUB= 68478 Price: Call Us
