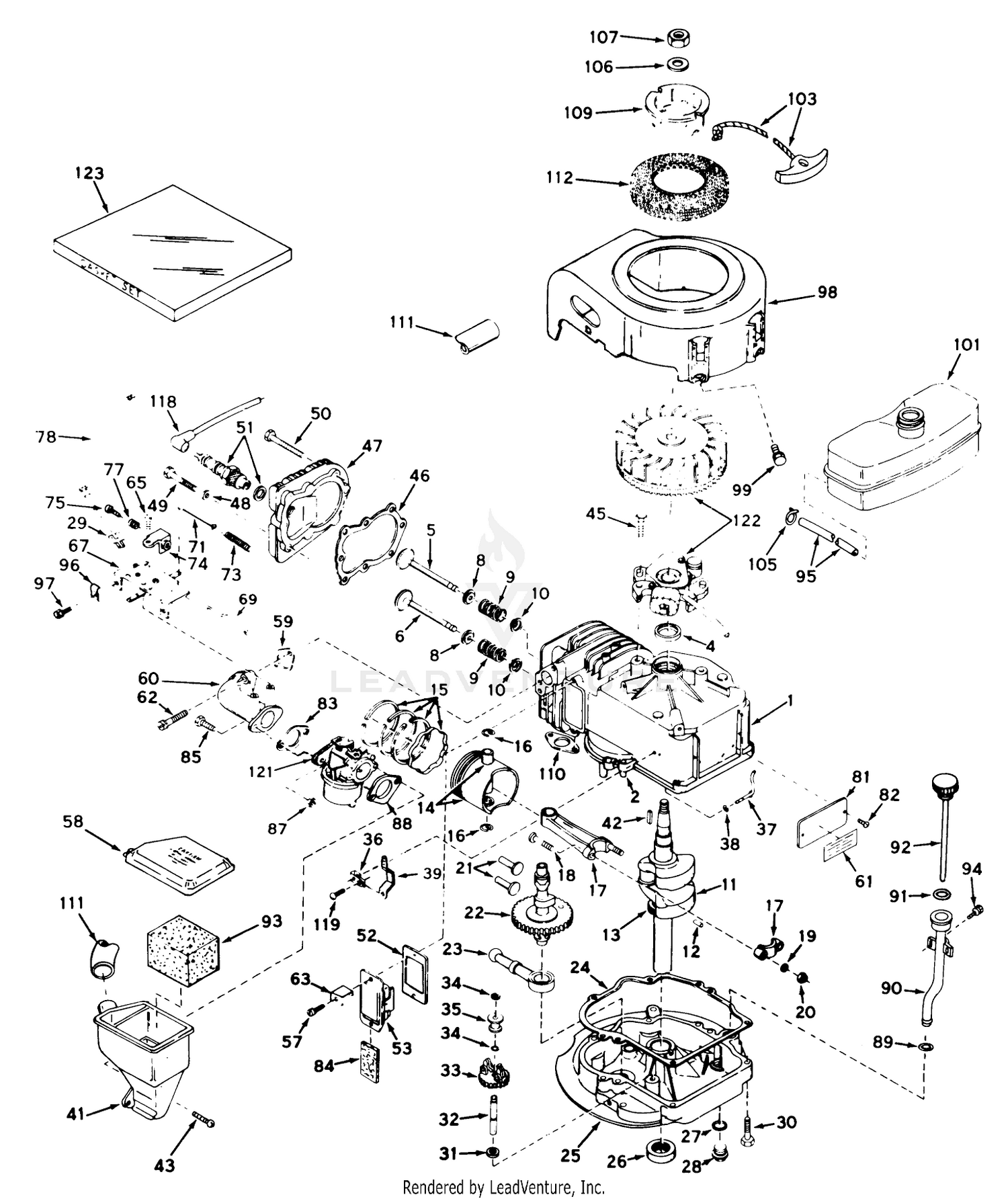

| Ref | Part Number | Description |
|---|
| 1 |
33394 |
Cylinder Assy. (Incl. Nos. 2 4) Price: Call Us |
| 2 |
26727 |
Pin-Dowel Price: Call Us |
| 4 |
29183 |
OIL SEAL Price: Call Us |
| 5 |
29314A |
Valve, Intake (Std.) (Incl. Ref. #7, 8 9) Price: Call Us |
| 5 |
29316A |
Valve, Intake (1/32" Oversize)(Incl. Ref. 8, 9 10) Price: Call Us |
| 6 |
20315A |
Valve, Exhaust (1/32" Oversize)(Incl. Nos. 8, 9 10) Price: Call Us |
| 6 |
29313A |
Valve, Exhaust (Standard)(Incl. Ref. 8, 9 10) Price: Call Us |
| 8 |
31671 |
Cap-Upper Valve Spring Price: Call Us |
| 9 |
31672 |
Spring-Valve Price: Call Us |
| 10 |
31673 |
Cap-Valve, Spring Price: Call Us |
| 11 |
29223 |
Crankshaft Assy. (Incl. Ref. 12 13)(Model LAV35-40455H) Price: Call Us |
| 12 |
29783 |
Pin, Groove Price: Call Us |
| 13 |
27613 |
Gear, Crankshaft Price: Call Us |
| 14 |
31761 |
Piston Pin Assy. (Incl. 2 of #16) (Std.) Price: Call Us |
| 14 |
32662 |
Piston Pin Assy. (Incl. 2 of #16) (.010 Oversize) Price: Call Us |
| 14 |
32663 |
Piston Pin Assy. (Incl. 2 of #16) (.020 Oversize) Price: Call Us |
| 15 |
27565 |
Ring Set, Piston (Std.) Price: Call Us |
| 15 |
27566 |
Ring Set, Piston (.010 o.s.) Price: Call Us |
| 15 |
27567 |
Ring Set, Piston (.020 o.s.) Price: Call Us |
| 16 |
20381 |
Ring-Retaining, Piston Pin Price: Call Us |
| 17 |
30963B |
Rod Assy., Connecting (Incl. Nos.18, 19 20) Price: Call Us |
| 18 |
26706 |
Bolt, Connecting Price: Call Us |
| 19 |
20747 |
Washer Price: Call Us |
| 20 |
27573 |
LOCKNUT Price: Call Us |
| 21 |
27241 |
Lifter-Valve Price: Call Us |
| 22 |
33148 |
Camshaft Price: Call Us |
| 23 |
29914 |
Oil Pump ASM Price: Call Us |
| 25 |
31907 |
Flange Assy., Mounting (Incl. Ref. 26, 27, 28 32) Price: Call Us |
| 26 |
26208 |
Seal Oil Price: Call Us |
| 28 |
27244 |
Plug Oil Drain Price: Call Us |
| 29 |
33177 |
Terminal Price: Call Us |
| 30 |
650488 |
Screw (1/4-20 x 1-1/4) Price: Call Us |
| 31 |
30590A |
Washer-Flat Price: Call Us |
| 32 |
30574 |
Shaft-Governor Price: Call Us |
| 33 |
30591 |
Gear Assy., Governor (Incl. No.132) Price: Call Us |
| 34 |
29193 |
Ring-Retaining Price: Call Us |
| 35 |
30588A |
Spool-Governor Price: Call Us |
| 36 |
31335 |
Clamp-Lever, Governor Price: Call Us |
| 37 |
30589 |
Rod, Governor (Incl. No. 6) Price: Call Us |
| 38 |
28277 |
Washer-Flat Price: Call Us |
| 39 |
32651 |
Governor Lever Price: Call Us |
| 41 |
33005 |
Body, Air Cleaner Price: Call Us |
| 42 |
27247 |
Key Flywheel Price: Call Us |
| 43 |
650707 |
Screw, Fil. Hd. Sems Price: Call Us |
| 45 |
650489 |
Screw Price: Call Us |
| 47 |
30579 |
CYLINDER HEAD Price: Call Us |
| 48 |
26073 |
Washer Price: Call Us |
| 49 |
6021 |
Screw Price: Call Us |
| 50 |
650694 |
Screw Hex Hd. Cap Price: Call Us |
| 51 |
21943 |
SPARK PLUG Price: Call Us |
| 53 |
31337 |
Breather Assembly (Incl. Nos. 52 84) Price: Call Us |
| 57 |
650128 |
Screw Price: Call Us |
| 58 |
33007 |
Cover, Air Cleaner Price: Call Us |
| 60 |
33004 |
Pipe, Intake Price: Call Us |
| 62 |
650451 |
Screw (1/4-20 x 1) Price: Call Us |
| 63 |
30593 |
Retainer Clip Price: Call Us |
| 65 |
30200 |
Screw (10-24 x 9/16) Price: Call Us |
| 67 |
33155 |
Control Assy., Speed Price: Call Us |
| 69 |
33133 |
Link Governor Price: Call Us |
| 71 |
32653 |
Link-Governor Price: Call Us |
| 73 |
31386 |
Spring, Governor Price: Call Us |
| 74 |
33150 |
Brachet, Control Price: Call Us |
| 75 |
650688 |
Screw, Hex Hd. Price: Call Us |
| 77 |
32924 |
Spring Price: Call Us |
| 78 |
31388 |
Wire, Ground Price: Call Us |
| 81 |
31345 |
IDENTIFICATION PLATE Price: Call Us |
| 82 |
28670 |
Stud Price: Call Us |
| 84 |
31410 |
Element-Breather Price: Call Us |
| 85 |
111-1250 |
WHEEL 180X45 RIBBED This part replaces 6201. Price: $27.74 |
| 87 |
29752 |
Nut and Lock Washer (1/4-28) Price: Call Us |
| 89 |
30139 |
O-Ring Price: Call Us |
| 90 |
32750 |
Tube Assy., Oil Fill Price: Call Us |
| 91 |
29985 |
O-Ring Price: Call Us |
| 92 |
30140 |
Dipstick, Oil Price: Call Us |
| 93 |
33006 |
Element, Air Cleaner Price: Call Us |
| 94 |
650562 |
Screw (10-32 x 1/2) Price: Call Us |
| 95 |
29774 |
Line-Fuel (8.62) Price: Call Us |
| 96 |
27793 |
Conduit Price: Call Us |
| 97 |
28942 |
Screw (10-32 x 3/8) Price: Call Us |
| 98 |
33176 |
Housing, Blower Price: Call Us |
| 99 |
650561 |
Screw (1/4-20x19/32) Price: Call Us |
| 101 |
32170A |
Tank, Fuel Price: Call Us |
| 103 |
590343 |
Rope Assy., Starter Price: Call Us |
| 105 |
26460 |
Clamp-Line, Fuel Price: Call Us |
| 106 |
650490 |
Washer Price: Call Us |
| 107 |
650607 |
Hex Nut Price: Call Us |
| 109 |
32723 |
Pulley Starter Price: Call Us |
| 111 |
33008 |
Tube, Air Cleaner Price: Call Us |
| 112 |
590417 |
Screen, Air Price: Call Us |
| 118 |
610118 |
Cover-Spark Plug Price: Call Us |
| 119 |
650548 |
Screw Price: Call Us |
| 121 |
631581 |
Carburetor Price: Call Us |
| 122 |
610772 |
Magneto Price: Call Us |
