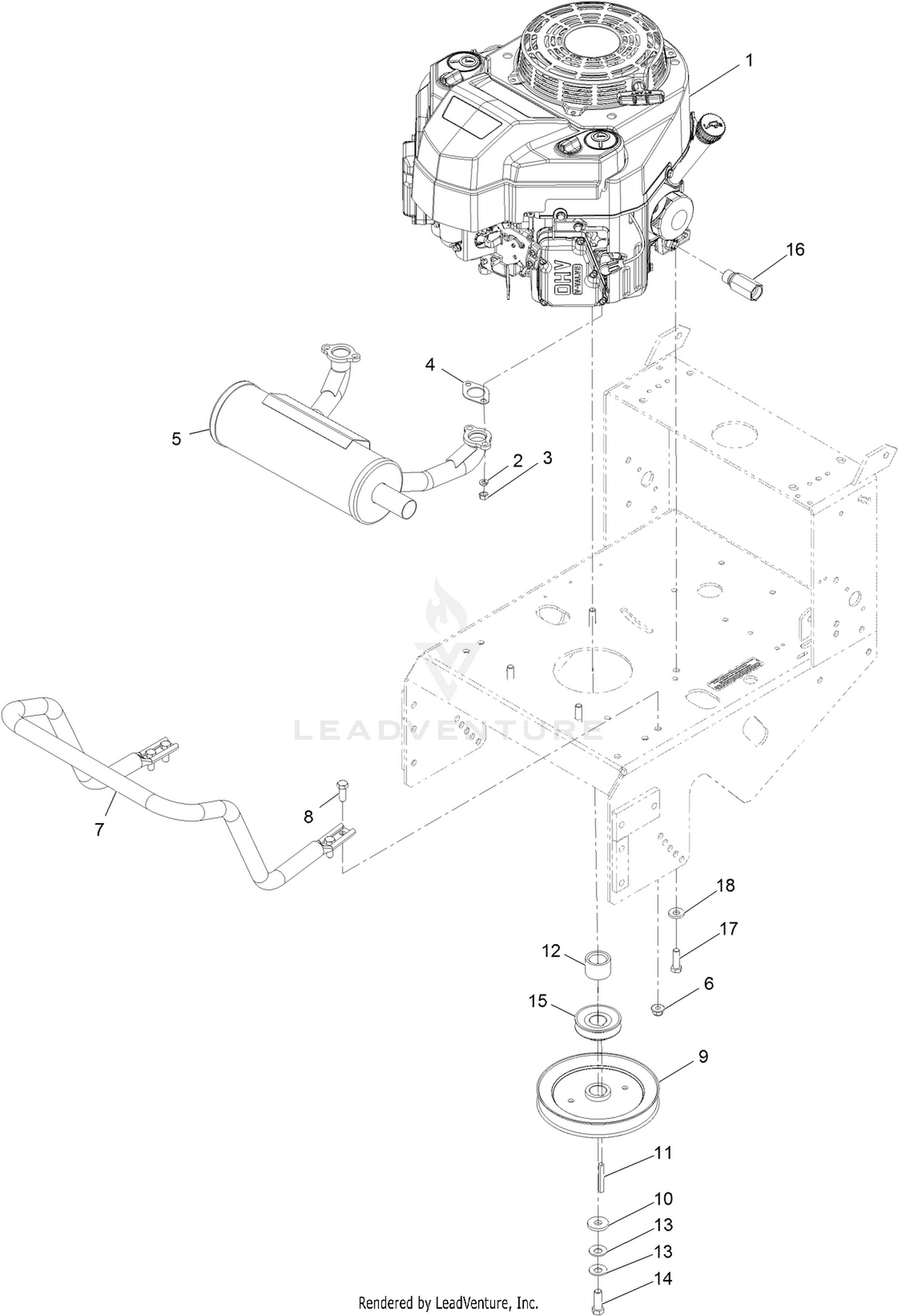

Engine Assembly
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 114-3550 | WASHER-LOCK Price: $1.19 |
| 3 | 114-3549 | NUT Price: $2.69 |
| 4 | 1-653313 | GASKET-EXHAUST Price: $4.29 |
| 5 | 116-3735 | MUFFLER-HORIZONTAL Price: $179.99 |
| 6 | 104-8301 | NUT-HF, NI Price: $1.19 |
| 7 | 135-4729-03 | TUBE-GUARD MUFFLER Price: $75.99 |
| 8 | 323-6 | SCREW-HH Price: $2.29 |
| 10 | 1-373034 | WASHER Price: $3.19 |
| 11 | 103-4177 | KEY Price: $4.79 |
| 12 | 1-633453 | SPACER-CLUTCH Price: $17.99 |
| 13 | 1-603610 | WASHER-SPRING Price: $4.79 |
| 16 | 103-2587 | ADAPTER Price: $24.99 |
| 17 | 323-7 | SCREW-HH Price: $2.69 |
