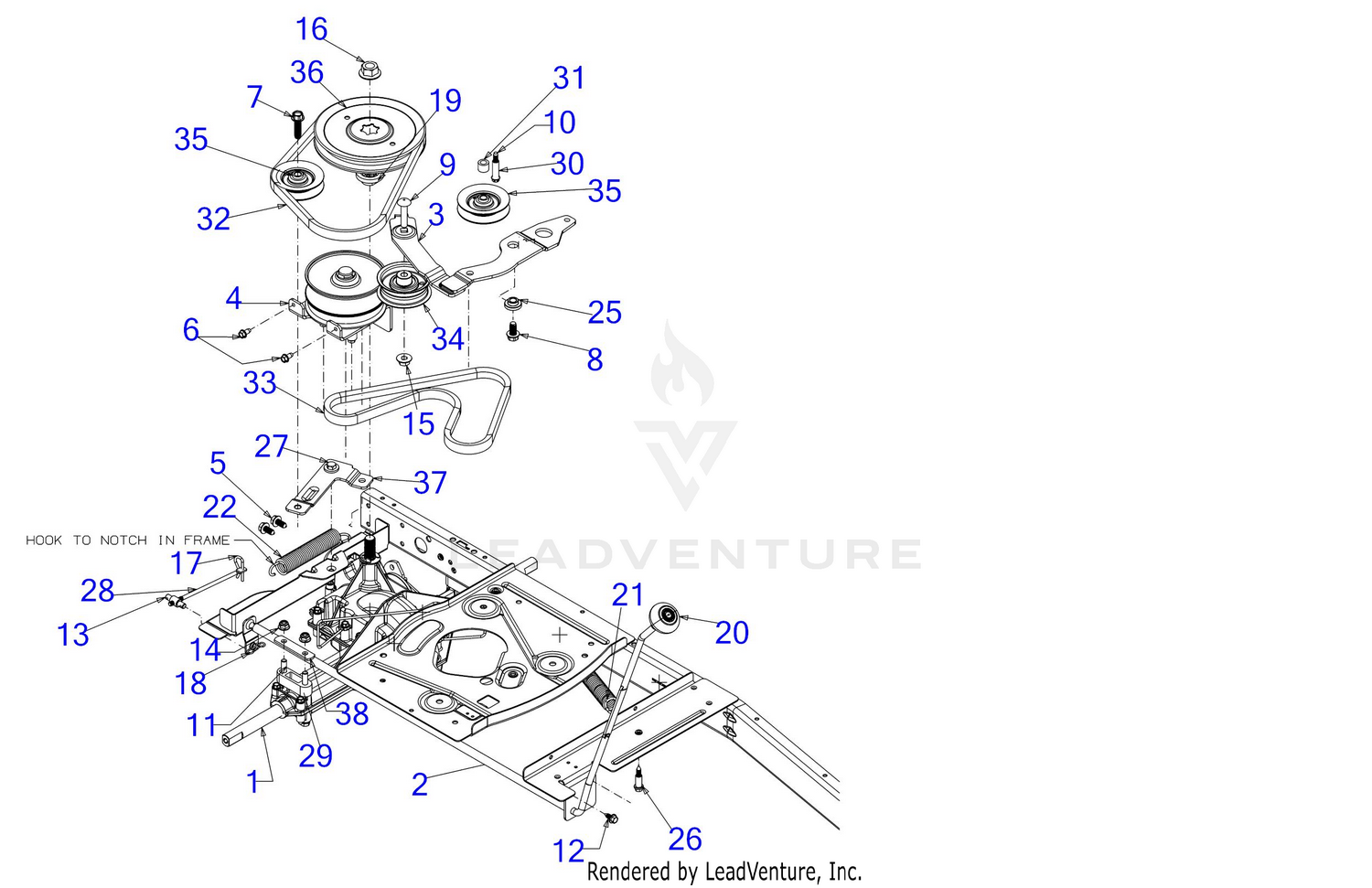

| Ref | Part Number | Description |
|---|
| 2 |
647-05114 |
SHIFT HANDLE ASSEMBLY Price: $42.51 |
| 3 |
683-04768A-0637 |
DRIVE IDLER ASSEMBLY Price: $16.76 |
| 4 |
683-05057A |
BRACKET ASSEMBLY This part replaces 683-05057. Price: $93.12 |
| 5 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 6 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 7 |
710-06016 |
SCREW 3/8-16 x 1.375 Price: $3.66 |
| 8 |
710-0623 |
SCREW 3/8-16 x 3/4 Price: $3.93 |
| 9 |
710-06234 |
BOLT 3/8-16 x 1.69 GR5 Price: $5.59 |
| 10 |
710-1026 |
SCREW 1/4-20 x 1.750 Price: $5.94 |
| 11 |
710-1266 |
SCREW 5/16-18X3.5 GR5 Price: $8.66 |
| 12 |
710-1652 |
SCREW 1/4-20X.625 Price: $3.86 |
| 13 |
711-06141 |
ADJUSTUSTMENT FERRULE 1/4-20 x 1.00 Price: $37.25 |
| 14 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 15 |
712-04217 |
FLANGE LOCK NUT Price: $3.75 |
| 16 |
712-0700 |
FLANGE NUT W/HUB Price: $10.12 |
| 17 |
914-0209 |
COTTER PIN Price: $3.22 |
| 18 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 19 |
718-04407 |
PULLEY HUB Price: $11.11 |
| 20 |
720-04039 |
SHIFT KNOB Price: $9.09 |
| 21 |
732-0459C |
EXTENSION SPRING .94 x 6.74 Price: $16.05 |
| 22 |
732-05573A |
EXTENSION SPRING .99 OD x 6.18 This part replaces 732-05573. Price: $7.56 |
| 25 |
738-0372B |
SHOULDER SPACER 1.00 x .38 x .38 Price: $8.78 |
| 26 |
738-05016A |
SHOULDER SCREW .368 x .75 x 1/4-20 Price: $3.70 |
| 27 |
738-05019 |
SHOULDER SCREW .560X.165 Price: $3.70 |
| 28 |
747-05593 |
SHIFT ROD Price: $4.83 |
| 29 |
948-0334 |
TRANSAXLE SPACER Price: $9.87 |
| 30 |
750-04456 |
SPACER:.260 x .372 x 1.420 Price: $6.20 |
| 31 |
750-05563 |
SPACER Price: $6.51 |
| 32 |
954-05040 |
V-BELT 5L x 35.25 Price: $42.39 |
| 33 |
954-04331 |
V-BELT 5L x 35.25 Price: $42.39 |
| 34 |
756-04224 |
FLAT IDLER PULLEY 2.75 OD Price: $24.80 |
| 35 |
756-04325 |
V-IDLER PULLEY A x 3.06 OD Price: $22.60 |
| 36 |
756-04464 |
V-TYPE PULLEY 6.56" DIA Price: $18.40 |
| 37 |
783-07248A |
IDLER BRACKET REAR Price: $7.44 |
