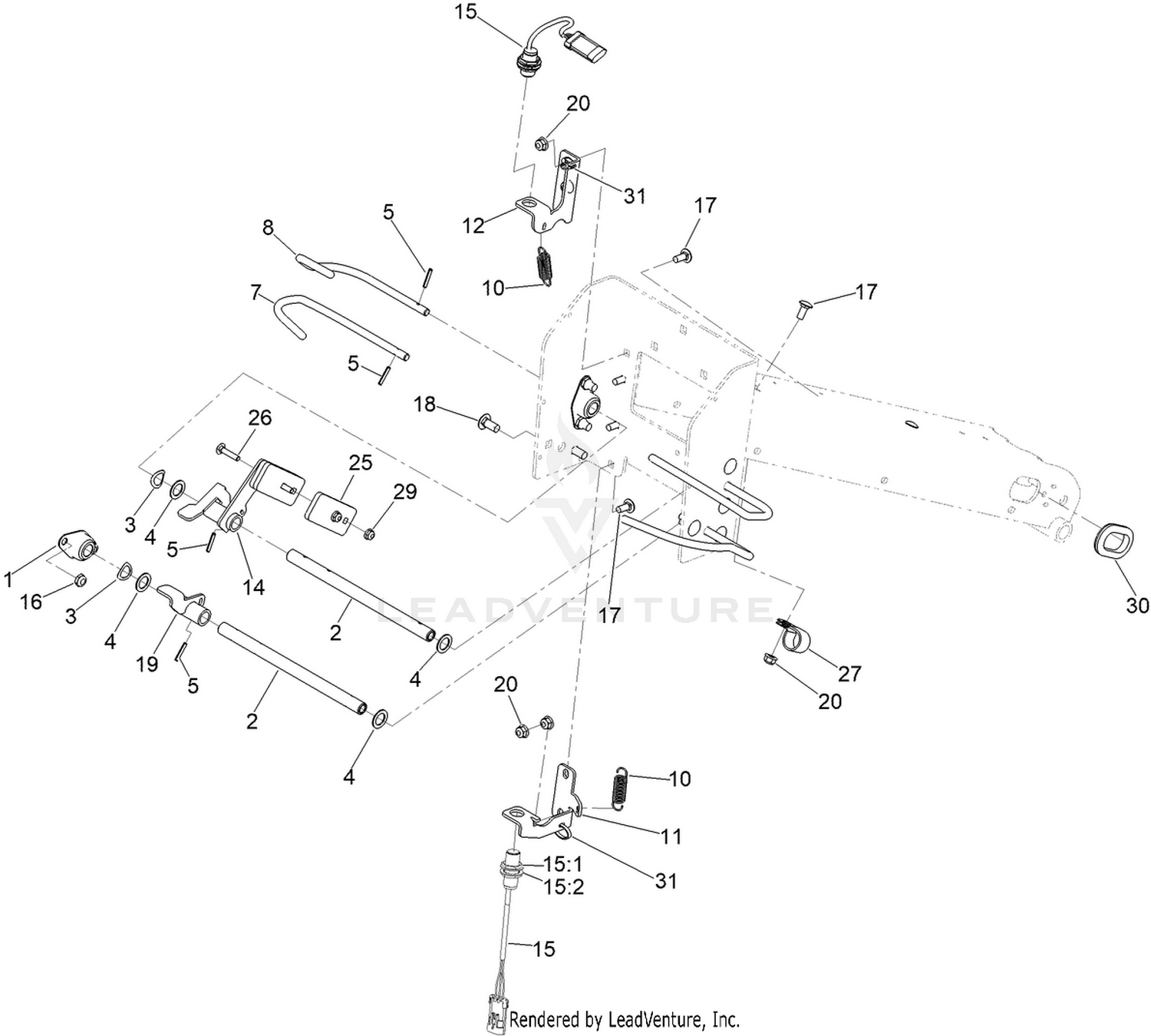

| Ref | Part Number | Description |
|---|
| 1 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 2 |
140-8639 |
TUBE-BAIL Price: $35.57 |
| 3 |
108-2100 |
WASHER-SPRING, CURVED Price: $7.87 |
| 4 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 5 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 7 |
144-9842 |
BAIL-AERATOR, 1 Price: $23.85 |
| 8 |
144-9844 |
BAIL-AERATOR, 2 Price: $23.85 |
| 10 |
136-7153 |
SPRING-EXTENSION Price: $5.09 |
| 11 |
144-9822 |
BRKT-SENSOR, LOWER Price: $9.60 |
| 12 |
144-9823 |
BRKT-SENSOR, UPPER Price: $9.60 |
| 14 |
140-8930 |
FLAG ASM Price: $83.67 |
| 15 |
115-0282 |
PROXIMITY SENSOR ASM Price: $155.22 |
| 16 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 17 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 18 |
3231-27 |
SCREW-CARR Price: $0.54 |
| 19 |
140-8920 |
FLAG ASM Price: $63.72 |
| 20 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 25 |
140-8933 |
PLATE-WEIGHT Price: $4.22 |
| 26 |
3229-3 |
SCREW-CARR Price: $4.49 |
| 27 |
2412-39 |
CLAMP-R Price: $1.70 |
| 29 |
104-7201 |
NUT-HF Price: $0.69 |
| 30 |
240-2 |
GROMMET-RUBBER Price: $20.20 |
