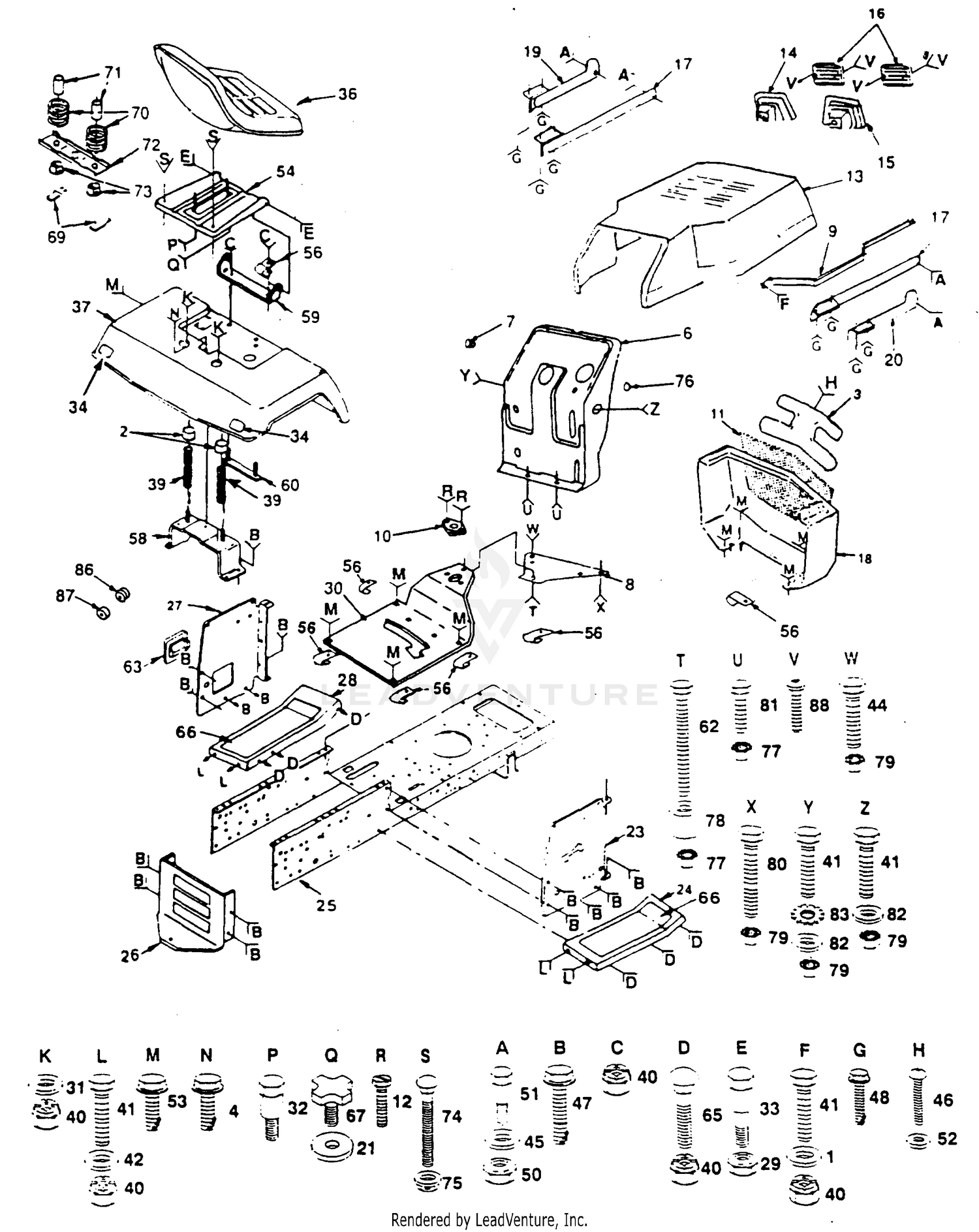

| Ref | Part Number | Description |
|---|
| 1 |
819131414 |
WASHER This part replaces 819131416. Price: $3.99 |
| 2 |
532124238 |
Cap, Spring (AYP part number) Price: $3.99 |
| 3 |
532124227 |
Insert, Grill Price: $109.99 |
| 4 |
817000616 |
SCREW 3/8-16X1 This part replaces 817490616. Price: $3.99 |
| 6 |
532122341 |
Dash (AYP part number) Price: $3.33 |
| 7 |
28-1060 |
DISCONTINUED Price: Call Us |
| 7 |
532125085 |
Plug, Dash (AYP part number) Price: $5.54 |
| 8 |
28-0930 |
THRUST WASHER Price: $130.68 |
| 8 |
532106965 |
Plate, Support, Battery (AYP part number) Price: $10.37 |
| 9 |
532122196 |
Brace, Grill (AYP part number) Price: $3.33 |
| 10 |
28-0870 |
DISCONTINUED Price: Call Us |
| 10 |
532155108 |
KIT/BUSH This part replaces 532124720. Price: $3.99 |
| 11 |
11-5790 |
KEY-SQUARE Price: $17.50 |
| 11 |
532101234 |
Screen, Grill (AYP part number) Price: $3.33 |
| 12 |
28-0940 |
DISCONTINUED Price: Call Us |
| 12 |
817211008 |
Screw, Hex Wsh. Tap #10-16 x 1/2 (AYP part number) This part replaces 817431008. Price: $2.99 |
| 13 |
28-0860 |
BEARING Price: $82.16 |
| 13 |
532124909 |
Hood (AYP part number) Price: $3.33 |
| 14 |
28-1050 |
DISCONTINUED Price: Call Us |
| 14 |
532124910 |
Bezel, L.H. (AYP part number) Price: $3.33 |
| 15 |
532125069 |
Bezel, R.H. (AYP part number) Price: $3.33 |
| 16 |
28-0880 |
DISCONTINUED Price: Call Us |
| 16 |
532109671 |
Lens (AYP part number) Price: $3.33 |
| 17 |
28-0890 |
DISCONTINUED Price: Call Us |
| 17 |
532124921 |
Strap Assembly, Hinge, Rear (AYP part number) Price: $39.52 |
| 18 |
32140-55 |
DISCONTINUED This part replaces 3211-33. Price: Call Us |
| 18 |
532125118 |
Grill Assembly (AYP part number) Price: Call Us |
| 19 |
532124693 |
Strap Assembly, Hinge, L.H. (AYP part number) Price: Call Us |
| 20 |
353-671 |
DISCONTINUED Price: Call Us |
| 20 |
532124694 |
Strap Assembly, Hinge, R.H. (AYP part number) Price: Call Us |
| 21 |
819171912 |
Washer 17/32 x 1-3/16 x 12 Ga. (AYP part number) Price: $3.99 |
| 22 |
28-1100 |
COMMUTATOR SERVICE AS Price: $690.95 |
| 23 |
532110828 |
Panel, Dash, R.H. (AYP part number) Price: $17.13 |
| 24 |
532124889 |
Footrest, R.H. (AYP part number) Price: $3.33 |
| 25 |
532127166 |
Chassis (AYP part number) Price: $85.21 |
| 26 |
532127866 |
Drawbar (AYP part number) Price: $45.99 |
| 27 |
532124118 |
Panel, Dash, L.H. (AYP part number) Price: $17.94 |
| 28 |
532124888 |
Footrest, L.H. (AYP part number) Price: $3.33 |
| 29 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 30 |
532124587 |
Saddle (AYP part number) Price: $3.33 |
| 31 |
819131612 |
Washer 13/32 X 1 X 12 Ga (AYP part number) This part replaces 819131614. Price: $3.99 |
| 32 |
532127018 |
Bolt, Shoulder (AYP part number) Price: $3.99 |
| 33 |
532139888 |
BOLT.SHOULDER.5/16-18 This part replaces 532105529. Price: $2.99 |
| 34 |
532106202 |
Reflector (AYP part number) Price: $3.99 |
| 36 |
532127428 |
Seat (AYP part number) Price: $119.99 |
| 37 |
532125112 |
Fender (AYP part number) Price: $3.33 |
| 39 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $2.99 |
| 40 |
873680600 |
Nut, Crownlock 3/8-16 Price: $1.99 |
| 41 |
874760612 |
Bolt, Hex 3/8-16 x 3/4 (AYP part number) Price: $1.99 |
| 42 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 44 |
874780616 |
BOLT This part replaces 874760616. Price: $3.99 |
| 45 |
819090816 |
Washer 9/32 x 1/2 x 16 Ga. (AYP part number) Price: $2.99 |
| 46 |
817511208 |
Screw, Hex, Slotted #12 x 1/2 (AYP part number) Price: $3.33 |
| 47 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 48 |
817411310 |
Screw, Hex, Washer Hd., Special (AYP part number) Price: $1.99 |
| 50 |
873680400 |
Locknut 1/4-20 (AYP part number) Price: $2.99 |
| 51 |
532007605 |
BOLT This part replaces 532124815. Price: $3.99 |
| 52 |
532008019 |
Washer 7/32 x 5/8 x 16 Ga. (AYP part number) Price: $3.33 |
| 53 |
817490608 |
Screw, Hex, Washer Hd.3/8-16 x 1/2 (AYP part number) Price: $3.99 |
| 54 |
532124294 |
Pan, Seat (AYP part number) Price: $14.69 |
| 56 |
532002751 |
Clip, Insulated (AYP part number) This part replaces 532124996. Price: $2.42 |
| 58 |
532137113 |
Bracket Pnt Fender (AYP part number) This part replaces 532105509. Price: $5.99 |
| 59 |
532126656 |
Bracket, Pivot, Seat (AYP part number) Price: $5.46 |
| 60 |
532140675 |
STRAP This part replaces 532105511. Price: $3.99 |
| 62 |
874760532 |
Bolt, Hex 5/16-18 x 2 (AYP part number) Price: $2.99 |
| 63 |
532121794 |
Cover, Access (AYP part number) Price: $3.99 |
| 65 |
872110606 |
Bolt, Carriage 3/8-16 x 3/4 (AYP part number) Price: $2.99 |
| 66 |
532108256 |
Pad, Footrest (AYP part number) Price: $25.99 |
| 67 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT This part replaces 532120068. Price: $6.99 |
| 69 |
532121251 |
Foam, Strip (AYP part number) Price: $5.46 |
| 70 |
532121250 |
Spring (AYP part number) Price: $3.99 |
| 71 |
532121249 |
Spacer (AYP part number) Price: $3.99 |
| 72 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $4.99 |
| 73 |
532121248 |
Bushing, Snap (AYP part number) Price: $3.99 |
| 74 |
872170410 |
Bolt, Carriage 1/4-20 x 1 x 1-1/4 (AYP part number) Price: $2.99 |
| 75 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 532123976. Price: $2.99 |
| 76 |
532005479 |
Plug, Dash (AYP part number) Price: $2.99 |
| 77 |
873510500 |
Nut, Keps 5/16-18 (AYP part number) Price: $5.99 |
| 78 |
532121236 |
Spacer (AYP part number) Price: $2.38 |
| 79 |
873510600 |
Nut, Keps 3/8-16 (AYP part number) Price: $3.99 |
| 80 |
874760620 |
Bolt, Hex 3/8-16 x 1-1/4 (AYP part number) Price: $3.99 |
| 81 |
874180512 |
Screw, Machine 5/16-18 x 3/4 (AYP part number) Price: $3.99 |
| 82 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. (AYP part number) Price: $2.99 |
| 83 |
539990118 |
SLW 3/8 STD This part replaces 811050600. Price: $1.99 |
| 86 |
532009151 |
Grommet (AYP part number) This part replaces 532110436. Price: $2.99 |
| 87 |
532124934 |
Grommet (AYP part number) Price: $5.46 |
| 88 |
817990808 |
Screw, Pan Head #8-18 x 1/2 (AYP part number) Price: $3.33 |
