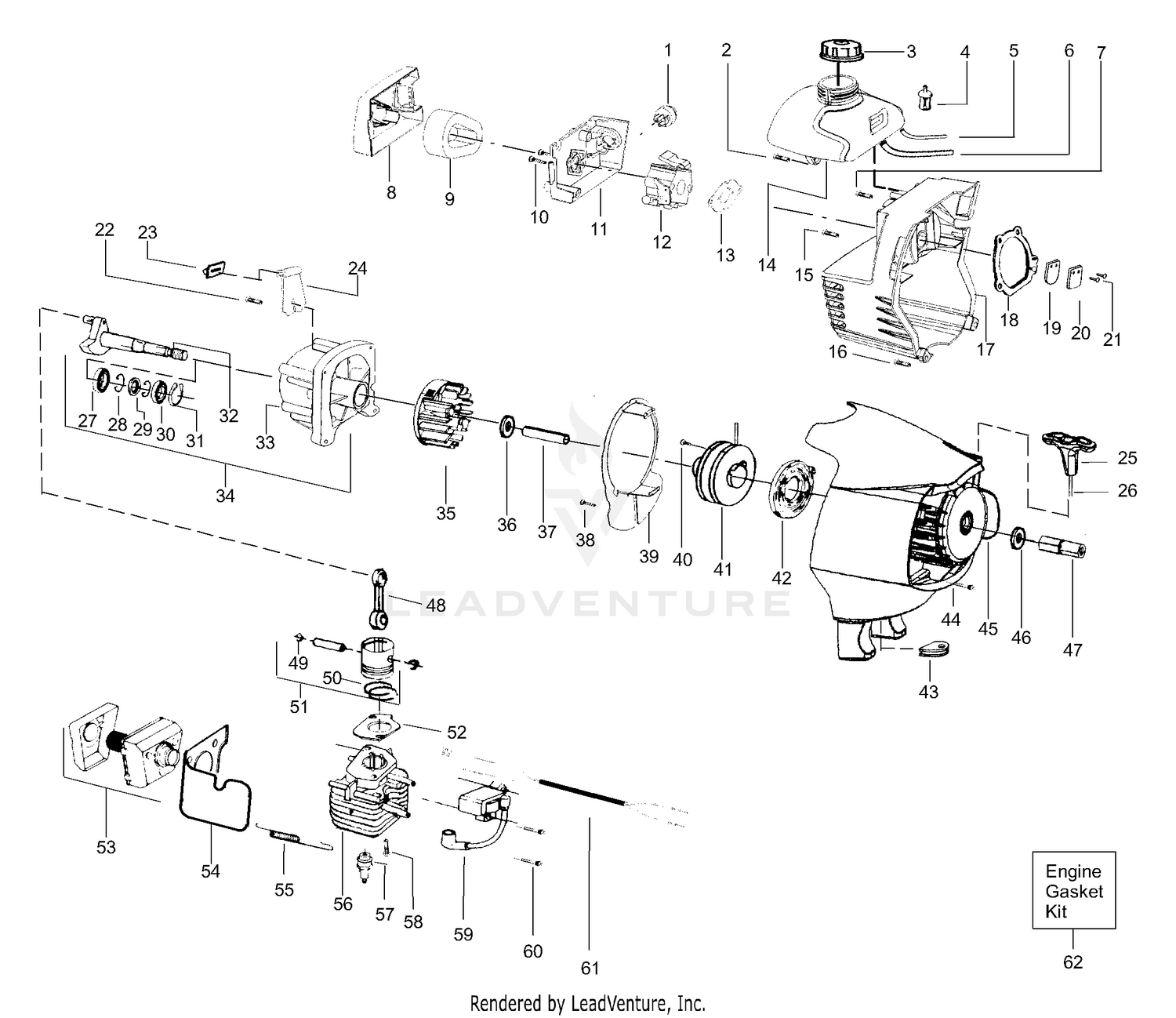

| Ref | Part Number | Description |
|---|
| 1 |
530047721 |
Bulb-purge Price: $3.99 |
| 2 |
530015843 |
Screw-tank Price: $1.99 |
| 3 |
530057973 |
Assy - Fuel Cap w/retainer This part replaces 530049386. Price: $7.99 |
| 4 |
530095646 |
Assy-Fuel pick-up Price: $2.99 |
| 5 |
530069247 |
Kit-Fuel Line This part replaces 530071404. Price: $3.99 |
| 6 |
530069216 |
Kit-Fuel/Purge line Price: $3.99 |
| 7 |
530015775 |
Screw Price: $1.99 |
| 8 |
530054935 |
Cover-Air box Price: $1.99 |
| 9 |
530054946 |
Filter-Air Price: $1.99 |
| 10 |
530015849 |
Screw-carb. Price: $1.99 |
| 11 |
530054934 |
Air Box Price: $3.99 |
| 12 |
530071637 |
Assy-Carb(WT628) This part replaces 530071403. Price: $54.99 |
| 13 |
530071401 |
Gasket-Carb. Price: $3.99 |
| 14 |
545075305 |
Assy-Fuel Tank This part replaces 530055317. Price: $11.99 |
| 15 |
530015771 |
Screw-crankcase Price: $1.99 |
| 16 |
530015952 |
Screw-shrd to f/hsg. Price: $1.99 |
| 17 |
530056044 |
Shroud Price: $11.99 |
| 18 |
530071401 |
Gasket-shrd to c/case Price: $3.99 |
| 19 |
530027593 |
Valve-reed Price: $1.99 |
| 20 |
530054596 |
Stop-reed Price: $1.99 |
| 21 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 22 |
530015875 |
Screw-tank retainer Price: $1.99 |
| 23 |
530055492 |
Isolator-fuel tank Price: $1.99 |
| 24 |
530054941 |
Ret.-fuel tank Price: $1.99 |
| 25 |
530054834 |
Handle-starter Price: $1.99 |
| 26 |
530071400 |
Kit-Rope Price: $1.20 |
| 27 |
530032103 |
Bearing-inner Price: Call Us |
| 28 |
530015787 |
Retainer Price: $1.99 |
| 29 |
530019158 |
Seal Price: $2.99 |
| 30 |
530032102 |
Bearing-outer Price: $8.99 |
| 31 |
530015789 |
Retainer-crankshaft Price: $2.99 |
| 32 |
530012430 |
Assy-crankshaft Price: $22.99 |
| 33 |
530014016 |
Assy-crankcase Price: Call Us |
| 35 |
530071402 |
Kit - Assy.-Flywheel Price: $8.64 |
| 36 |
530016030 |
Washer Price: $1.99 |
| 37 |
530055620 |
Spacer Price: $4.99 |
| 38 |
530015775 |
Screw-baffle Price: $1.99 |
| 39 |
530056864 |
Plate-baffle Price: $3.33 |
| 40 |
530016326 |
Screw-rope Price: $1.99 |
| 42 |
545008011 |
KIT STARTER SPRING This part replaces 530042086. Price: $5.99 |
| 43 |
530019182 |
Grommet Price: $1.99 |
| 44 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 45 |
530055248 |
Housing-Fan w/eyelet Price: $17.99 |
| 46 |
530016030 |
Washer Price: $1.99 |
| 47 |
530012427 |
Coupling-drive Price: $1.99 |
| 48 |
530010960 |
Assy-Connecting rod Price: $14.99 |
| 49 |
530015162 |
Retainer-piston pin Price: $1.99 |
| 50 |
530025875 |
Ring-Piston Price: $4.99 |
| 51 |
530069277 |
Kit-Piston Price: $44.99 |
| 52 |
530071401 |
Gasket-Cylinder Price: $3.99 |
| 53 |
530069310 |
Kit-Muffler Price: $9.99 |
| 54 |
530058957 |
Shield This part replaces 530053346. Price: $3.99 |
| 55 |
530036409 |
Spring-muffler Price: $1.99 |
| 56 |
530071581 |
Kit-Cylinder This part replaces 530069628. Price: $59.99 |
| 57 |
952030249 |
Spark plug (RCJ-6Y) Price: $3.99 |
| 58 |
530001624 |
Bolt-Cylinder Price: $1.99 |
| 59 |
545081826 |
Kit - Ignition Module This part replaces 530039217. Price: $32.99 |
| 60 |
530016357 |
Screw-module Price: $1.99 |
| 61 |
530057238 |
Assy-Rear wire Price: $5.99 |
