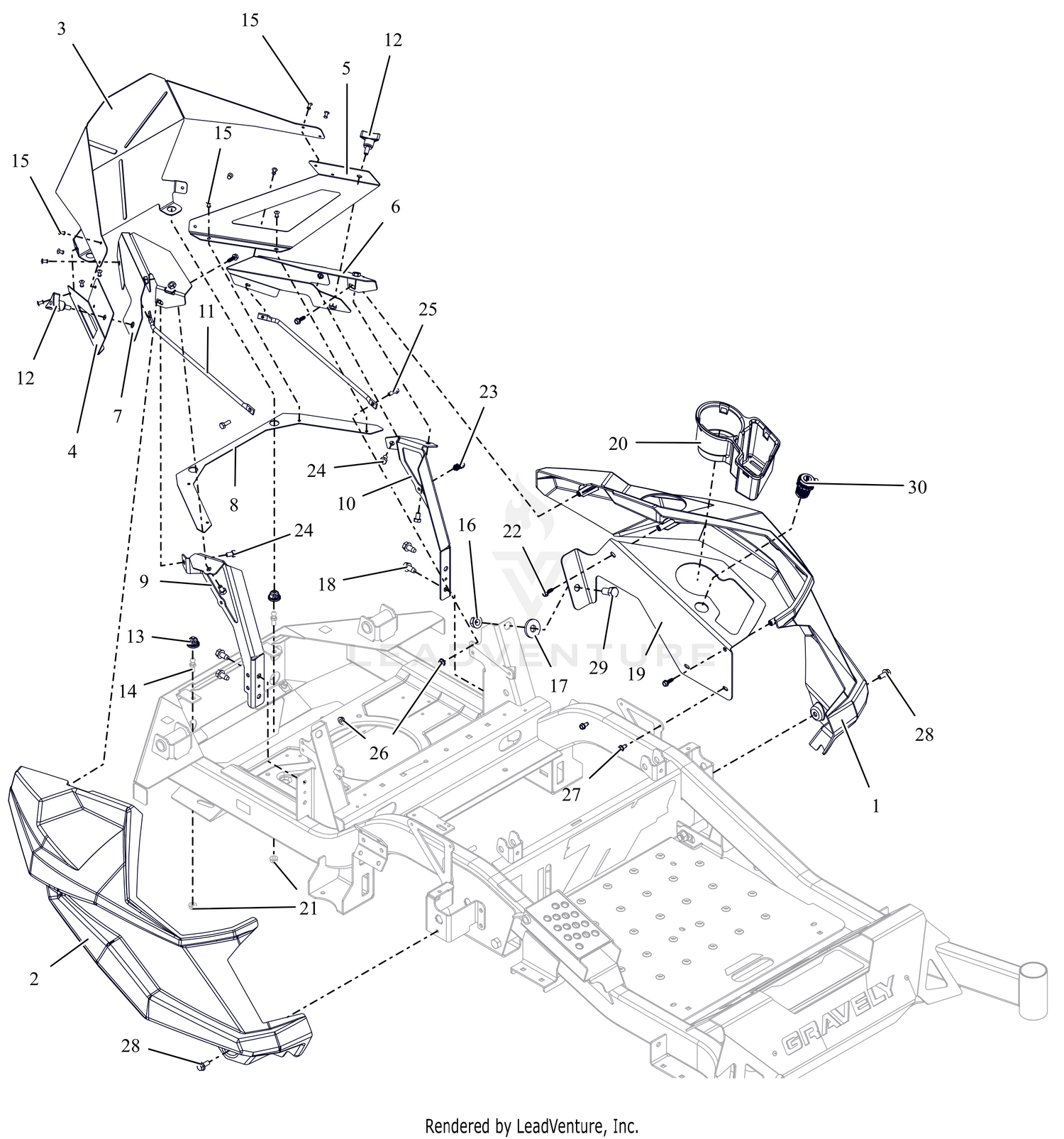

| Ref | Part Number | Description |
|---|
| 1 |
09188100 |
FENDER, LH Price: $40.95 |
| 2 |
09188200 |
FENDER, RH Price: $40.95 |
| 3 |
09188551 |
WRAP, REAR (BLACK) Price: $71.45 |
| 4 |
09188751 |
WRAP- REAR - RH Price: $20.45 |
| 5 |
09188651 |
WRAP- REAR - LH Price: $20.45 |
| 6 |
59124200 |
KIT,LH FENDER MTG,HD STEALTH This part replaces 09188842. Price: $40.95 |
| 7 |
59124300 |
KIT,RH FENDER MTG,HD STEALTH This part replaces 09188942. Price: $40.95 |
| 8 |
09363242 |
STIFFNER- BACKWRAP Price: $20.45 |
| 9 |
59124300 |
KIT,RH FENDER MTG,HD STEALTH This part replaces 09188442. Price: $40.95 |
| 10 |
59124200 |
KIT,LH FENDER MTG,HD STEALTH This part replaces 09188342. Price: $40.95 |
| 11 |
09362700 |
ROD, STIFFENER Price: $12.45 |
| 12 |
07500008 |
KNOB,WING STUD 5/16-18 X .75 Price: $5.95 |
| 13 |
07500407 |
GROMMET, 10MM BOLLHOFF Price: $5.45 |
| 14 |
03652200 |
STUD- BALL Price: $3.45 |
| 15 |
06800107 |
RIVET, #66 STEEL POP PD BLACK Price: $0.95 |
| 16 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC Price: $1.45 |
| 17 |
06401225 |
WASHER- FLT .562X1.50X.187 ZCC Price: $3.45 |
| 18 |
07400129 |
SCR,TAP .375-16X.75 HWH TR ZCC Price: $1.45 |
| 19 |
09189142 |
PANEL, HD CUPHOLDER (MATTE BLACK) Price: Call Us |
| 20 |
09190800 |
HOLDER, CUP Price: $10.95 |
| 21 |
06500840 |
NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 22 |
06100231 |
SCR, PLASTITE-HWH 0.25 X 0.75 ZC120 Price: $1.45 |
| 23 |
04451600 |
CLIP, CABLE GUIDE Price: Call Us |
| 24 |
05901904 |
BLT, HEX .31-18X.50 GR5 ZCC Price: $1.45 |
| 25 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC Price: $0.95 |
| 26 |
06500821 |
NUT-LK-CTR-FLG .25-20 ZC120 Price: $0.45 |
| 27 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC Price: $0.45 |
| 28 |
07001820 |
BLT, SERHFWH 0.312-18X0.75 GR5 ZCC Price: $1.95 |
| 29 |
05901715 |
BLT, HEX .50-13X1.00 G5 ZCC Price: $2.45 |
