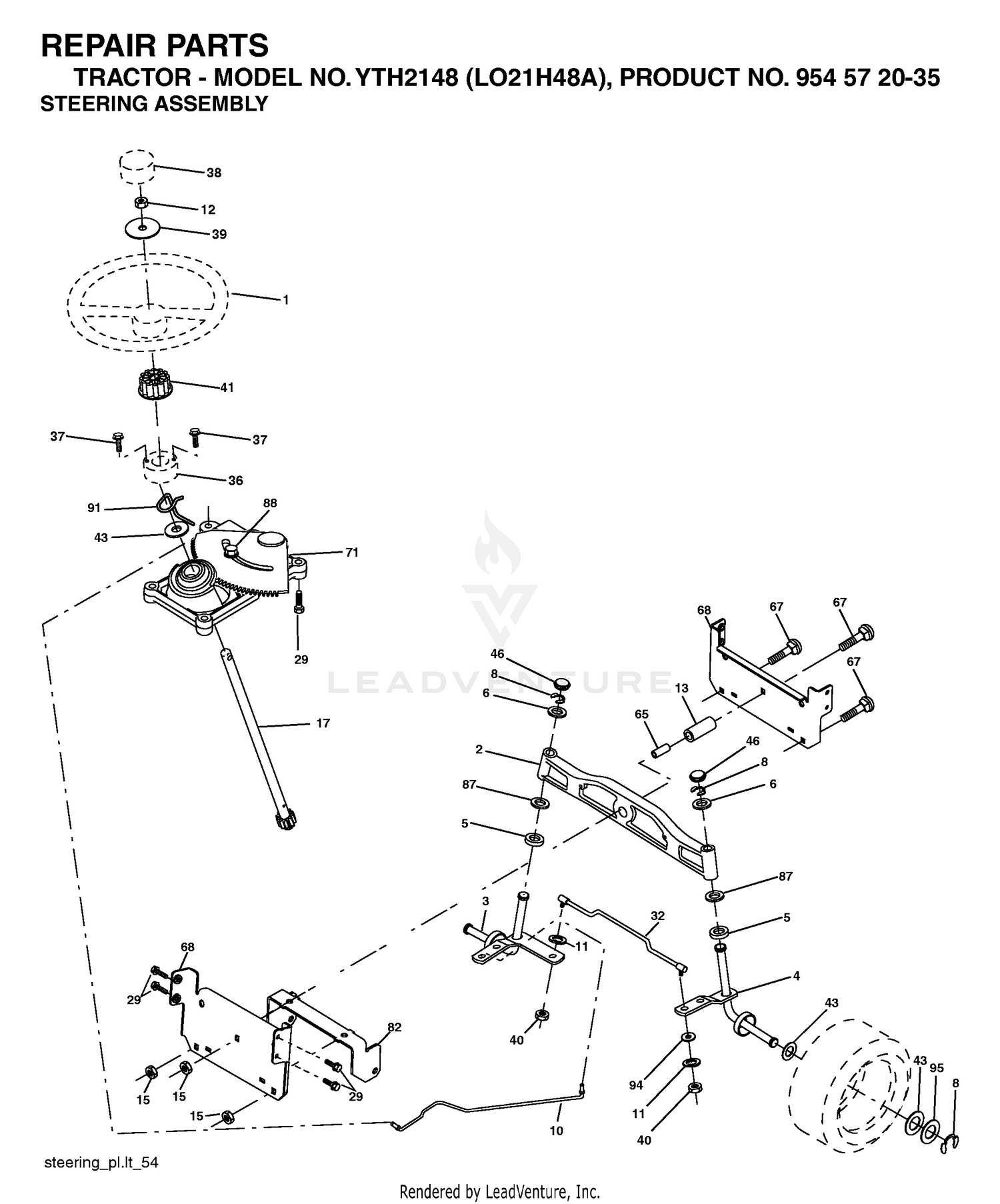

| Ref | Part Number | Description |
|---|
| 1 |
532166627 |
STEERING WHEEL Price: $64.99 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532184706. Price: $119.99 |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 10 |
532175121 |
DRAGLINK.15".TIRES.2001 Price: $59.99 |
| 10 |
98-9596 |
JOINT-EYE Price: $18.69 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 12 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 17 |
532177883 |
SHAFT ASM STRG Price: $104.99 |
| 20 |
98-9643 |
INJECTION PUMP ASM Price: $2,551.99 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 30 |
98-9464 |
BOLT-JOINT Price: $20.48 |
| 32 |
532180580 |
ROD TIE BALL J WSL Price: $109.99 |
| 34 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 36 |
532155108 |
KIT.BUSHING.STEERING. This part replaces 532155105. Price: $6.99 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
532172092 |
INSERT.CAP.STRG.WH (3 2) (L B) This part replaces 532166626. Price: $12.99 |
| 39 |
819183812 |
WASHER 9/16"ID, 2 3/8"OD Price: $7.99 |
| 40 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 40 |
98-9445 |
GASKET Price: $1.84 |
| 41 |
532159945 |
STEERING WHEEL ADAPTOR Price: $6.99 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 50 |
98-9430 |
SCREW Price: $19.45 |
| 60 |
98-9446 |
GASKET Price: $2.50 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 67 |
872110618 |
BOLT CARRIAGE Price: $4.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 70 |
98-9466 |
PLUG Price: $12.54 |
| 71 |
531167801 |
SERVICE KIT STEERING ASM This part replaces 532175146. Price: $139.99 |
| 80 |
98-9451 |
GASKET Price: $1.92 |
| 82 |
531170201 |
SERVICE.KIT BRACKET This part replaces 532169835. Price: $19.99 |
| 87 |
532173966 |
WASHER, FLAT .781 X 1 1/2" Price: $4.99 |
| 88 |
532175118 |
BOLT, SHOULDER 7/16-20 Price: $4.99 |
| 90 |
115-3045 |
SHIM-INJECTION (0.175MM) Price: $10.31 |
| 90 |
115-3046 |
SHIM-INJECTION (0.35MM) Price: $10.62 |
| 90 |
98-9456 |
SHIM-INJECTION (0.20MM) Price: $7.29 |
| 90 |
98-9457 |
SHIM-INJECTION (0.25MM) Price: $8.40 |
| 90 |
98-9458 |
SHIM-INJECTION (0.30MM) Price: $12.10 |
| 91 |
532175553 |
CLIP.STEERING Price: $9.99 |
| 94 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 95 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 100 |
117-7564 |
BOLT-HEX SOC HD Price: $2.53 |
| 110 |
98-9438 |
STUD Price: $1.33 |
| 120 |
98-9440 |
NUT-CAP Price: $18.34 |
