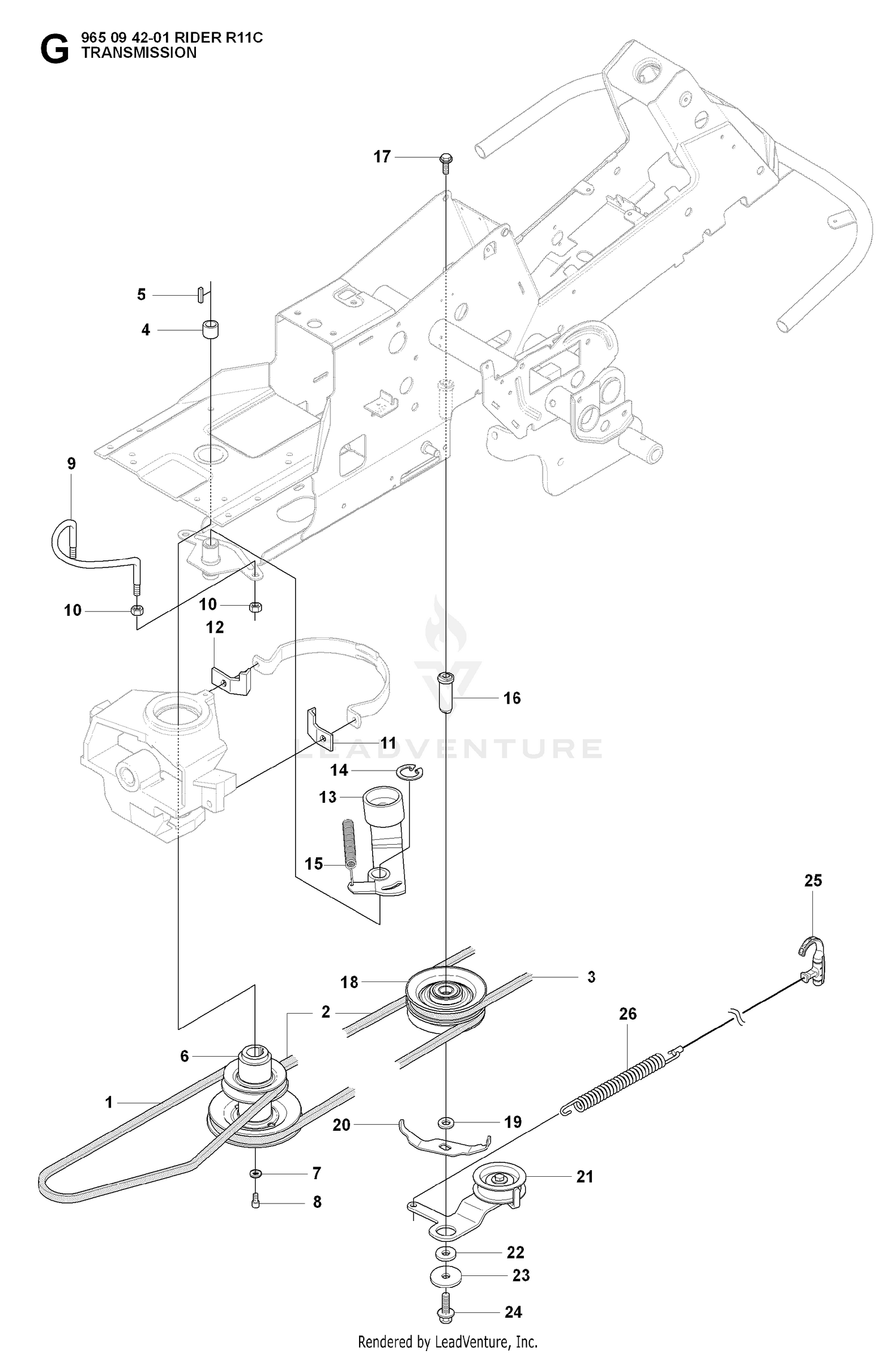

TRANSMISSION
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 106-3239 | SCREW-LOCK Price: $48.99 |
| 1 | 589531301 | BELT This part replaces 506544901. Price: $24.99 |
| 2 | 107-1644 | CAP-LOCK Price: $36.99 |
| 2 | 599675902 | BELT KIT This part replaces 544400201. Price: $44.99 |
| 3 | 107-1664 | LEVER ASM This part replaces 106-3241. Price: $71.99 |
| 3 | 594977801 | Belts This part replaces 544238901. Price: $34.99 |
| 4 | 506509201 | SPACER Price: $9.99 |
| 5 | 506555901 | KEY Price: $3.99 |
| 6 | 506585201 | Pulley Cpl Price: $99.98 |
| 7 | 506597501 | WASHER Price: $6.99 |
| 8 | 506556002 | SCREW Price: $5.99 |
| 9 | 506664501 | BELT GUIDE Price: $19.99 |
| 10 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 11 | 506674401 | Belt Guide Cpl., Right Price: $22.80 |
| 12 | 506674501 | Belt Guide Cpl.,Left Price: $21.41 |
| 13 | 535484401 | TENSIONER Price: $54.99 |
| 14 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 15 | 506665601 | SPRING Price: $24.99 |
| 16 | 581916401 | SHAFT This part replaces 544426101. Price: $19.99 |
| 17 | 506675401 | BOLT Price: $4.99 |
| 19 | 506775701 | WASHER Price: $4.99 |
| 20 | 544405301 | BELT GUIDE Price: $6.99 |
| 21 | 544228101 | BELT TENSIONER ASSY Price: $44.99 |
| 22 | 506597501 | WASHER Price: $6.99 |
| 23 | 506982501 | Washer Price: $6.01 |
| 24 | 506597401 | BOLT This part replaces 506570105. Price: $5.99 |
| 25 | 544239501 | NEEDS DESCRIPTION Price: Call Us |
| 26 | 544238801 | SPRING Price: $11.99 |
