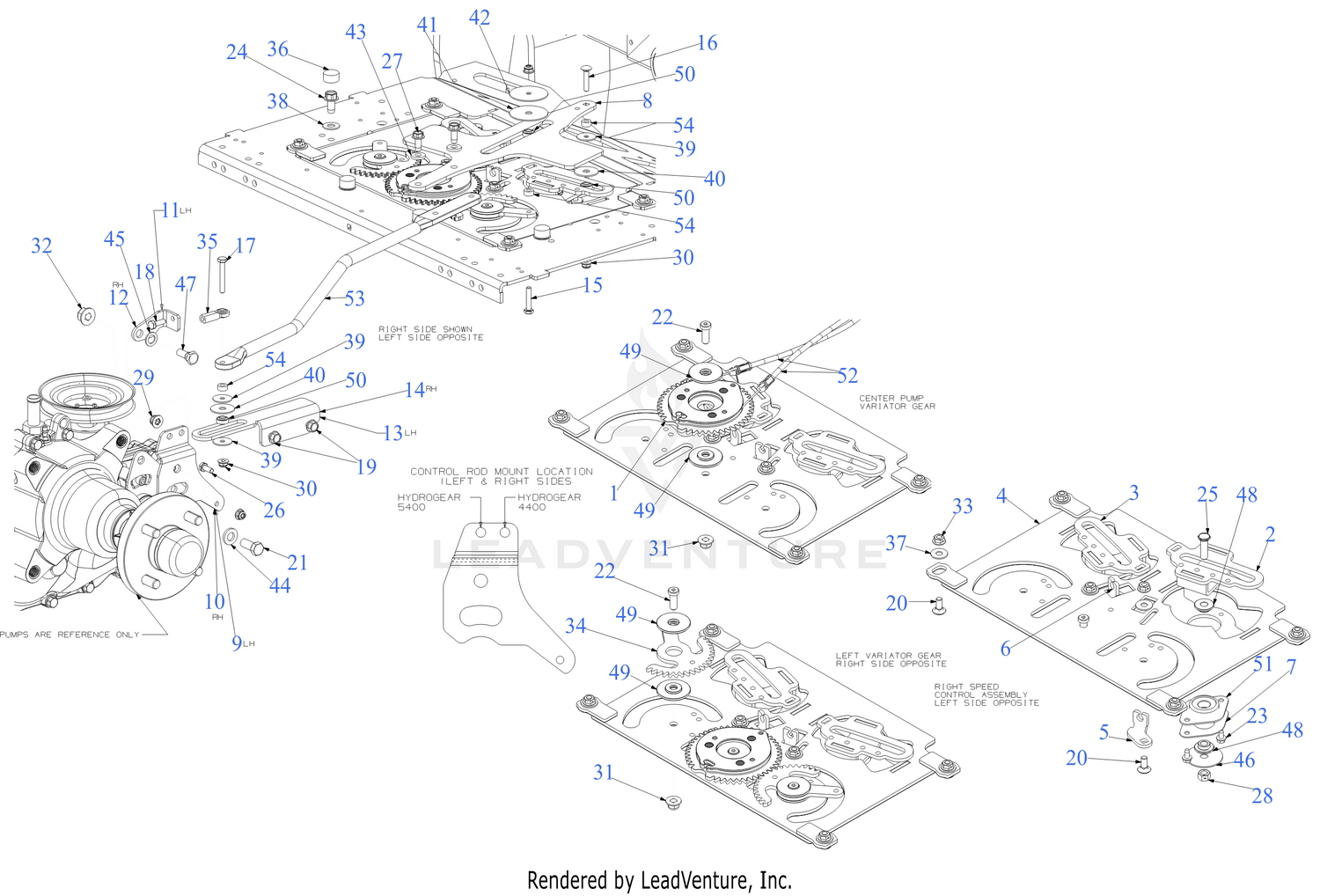

| Ref | Part Number | Description |
|---|
| 1 |
680Z00144 |
GEAR-PUMP Price: $54.37 |
| 2 |
680Z00367 |
PUMP CONTROL CAM ASSEMBLY (RH) Price: $51.65 |
| 3 |
680Z00368 |
PUMP CONTROL CAM ASSEMBLY (LH) Price: $51.65 |
| 8 |
703-10131 |
STEERING PUMP ACTUATOR ARM Price: $43.49 |
| 9 |
703E28760 |
NEUTRAL MOUNT BRACKET (LH) Price: $15.94 |
| 10 |
703E28761 |
NEUTRAL MOUNT BRACKET (RH) Price: $15.94 |
| 11 |
703Z28763 |
CONTROL PUMP BRACKET (LH) Price: $6.83 |
| 12 |
703Z28764 |
CONTROL PUMP BRACKET (RH) Price: $6.83 |
| 13 |
703Z28766 |
GUIDE ARM BRACKET (LH) Price: $12.52 |
| 14 |
703Z28768 |
GUIDE ARM BRACKET (RH) Price: $12.52 |
| 15 |
710-0106 |
HEX SCREW 1/4-20 x 1.25 Price: $3.66 |
| 16 |
710-0111 |
CARRIAGE BOLT 1/4-20 x 1.25 Gr5 Price: $3.19 |
| 17 |
710-0136 |
HEX SCREW 1/4-20 x 1.75 Price: $3.66 |
| 18 |
710-0412 |
HEX SCREW 1/4-28 x .75 Price: $4.95 |
| 19 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 20 |
710-0451 |
CARRIAGE BOLT 5/16-18 x .75 Price: $3.53 |
| 21 |
710-0505 |
SCREW 7/16-14 x 1.00 GR5 Price: $6.01 |
| 22 |
710-05340 |
SCREW 3/8-16 x 1 Price: $3.37 |
| 23 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 24 |
710-0623 |
SCREW 3/8-16 x 3/4 Price: $3.93 |
| 25 |
710-0723 |
SCREW 3/8-16 x 1.25 GR5 Price: $4.04 |
| 26 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 27 |
710-1260A |
SCREW 5/16-18 x .750 Price: $3.34 |
| 28 |
712-0375 |
HEX NUT Price: $4.02 |
| 29 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 30 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 31 |
712-04065 |
NUT Price: $3.68 |
| 32 |
712-05165 |
HEX FLANGE LOCK NUT 7/16-14 Price: $3.53 |
| 33 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 34 |
917-05317 |
STEERING GEAR YOKE Price: $20.29 |
| 35 |
723-04077 |
END ROD (RH) Price: $19.55 |
| 36 |
731-1490 |
SLIDE CAP Price: $3.78 |
| 37 |
736-0159 |
FLAT WASHER Price: $3.71 |
| 38 |
736-0300 |
FLAT WASHER Price: $3.93 |
| 39 |
736-04511 |
FLAT WASHER Price: $2.94 |
| 40 |
736-04596 |
WASHER .355X1.25X.06THK Price: $2.94 |
| 41 |
736-04630 |
FLAT WASHER Price: $5.62 |
| 42 |
736-04631 |
FLAT WASHER Price: $5.62 |
| 43 |
936-3008 |
FLAT WASHER.344X.75X.1 Price: $6.24 |
| 44 |
936-3015 |
FLAT WASHER Price: $3.89 |
| 45 |
736-3024 |
FLAT WASHER .469X.750X.054 Price: $3.19 |
| 46 |
736-3040 |
HUB CAP WASHER .406 x 1.92 x .060 Price: $5.52 |
| 47 |
738-0296 |
SHOULDER SCREW .437 Price: $3.93 |
| 48 |
738-04154 |
SHOULDER SPACER Price: $5.08 |
| 49 |
738-04453 |
SHOULDER SPACER Price: $9.41 |
| 50 |
741-04425 |
BALL BEARING .25 x .625 SPCL Price: $13.08 |
| 51 |
741-04566 |
BALL BEARING Price: $13.94 |
| 52 |
946-05279A |
TRANSMISSION CONTROL LINK CABLE Price: $63.35 |
| 53 |
747-11774 |
PUMP CONTROL ROD Price: $42.72 |
