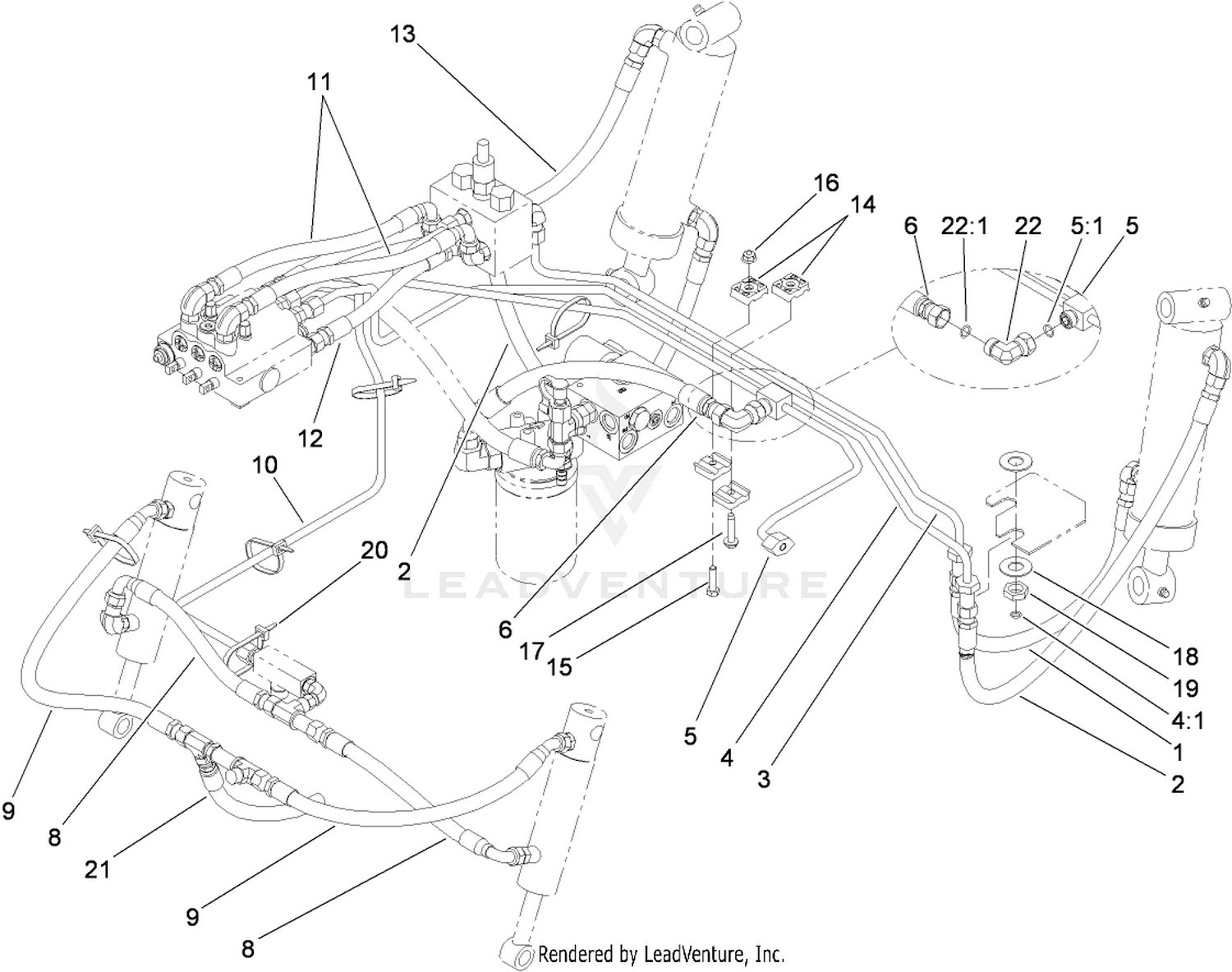

Lift Arm Hydraulic Plumbing Assembly
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 100-5629 | HOSE ASM Price: $111.26 |
| 2 | 100-5630 | HOSE ASM Price: $119.97 |
| 3 | 100-3087 | TUBE-HYD, LEFT RETURN Price: $68.95 |
| 4 | 100-3088 | TUBE-HYD, LIFT Price: $145.43 |
| 5 | 100-3089 | TUBE-HYD, CHARGE Price: $140.11 |
| 6 | 114-9768 | HOSE ASM Price: $102.78 |
| 8 | 104-2234 | HOSE-HYD Price: $104.99 |
| 9 | 92-7595 | HOSE-HYD Price: $102.70 |
| 10 | 105-7371 | TUBE-HYD Price: $78.46 |
| 11 | 104-2240 | HOSE ASM Price: $99.50 |
| 12 | 100-5589 | HOSE ASM Price: $71.77 |
| 13 | 100-5631 | HOSE ASM Price: $146.86 |
| 14 | 56-7973 | CLAMP-TUBE Price: $15.56 |
| 15 | 322-6 | SCREW-HH Price: $0.45 |
| 16 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 17 | 32144-57 | SCREW Price: $1.04 |
| 18 | 69-8940 | WASHER Price: $1.76 |
| 19 | 340-70 | NUT-LOCK Price: $2.10 |
| 20 | 3290-378 | TIE-CABLE Price: $0.79 |
| 21 | 104-2234 | HOSE-HYD Price: $104.99 |
| 22 | 94-6031 | FITTING-HYD Price: $50.11 |
