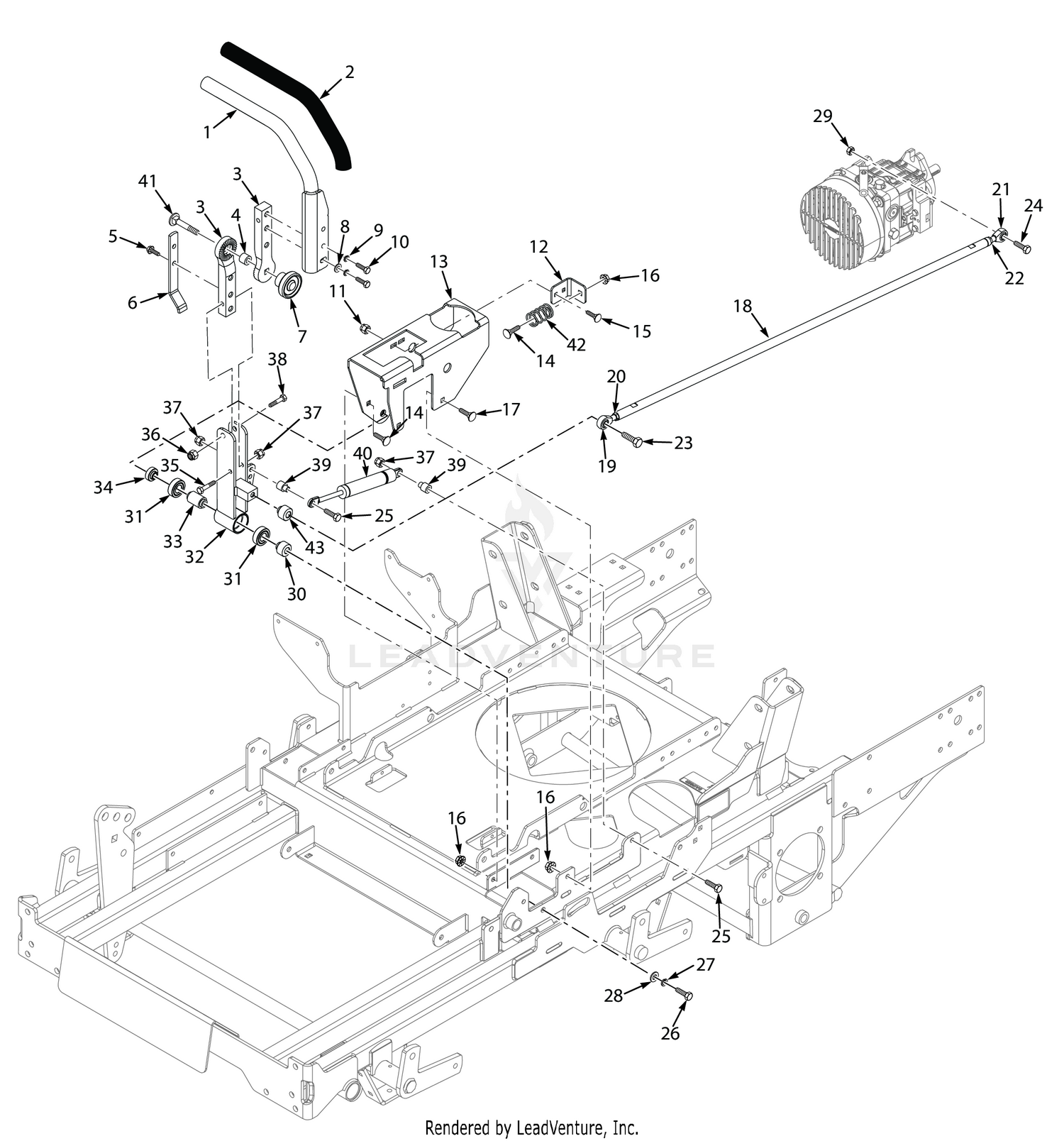

| Ref | Part Number | Description |
|---|
| 1 |
218-529 |
TAP CONNECTOR Price: $37.98 |
| 2 |
43-6370 |
DISCONTINUED Price: Call Us |
| 2 |
484376 |
Grip, Control Handle Price: Call Us |
| 3 |
43-6380 |
DISCONTINUED Price: Call Us |
| 3 |
461938 |
ADJUSTMENT ASSY, CNTL HANDLE Price: Call Us |
| 4 |
43-6390 |
DISCONTINUED Price: Call Us |
| 4 |
483250 |
Spacer, Rubber Price: Call Us |
| 5 |
04017-16 |
Capscrew, 5/16-18 x .75 Serrated Flange Hex Head Price: Call Us |
| 6 |
423491 |
Actuator, Switch Price: Call Us |
| 7 |
483269 |
Knob, Control Handle Price: Call Us |
| 8 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 9 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 10 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 11 |
04117-03 |
Nut, Flanged Elastic Stop 1/4-20 Price: Call Us |
| 12 |
427108 |
Mounting Bracket, Spring Return Price: Call Us |
| 13 |
463221 |
Control Plate w/Decals LH Price: Call Us |
| 14 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 15 |
04003-02 |
Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4" Price: Call Us |
| 16 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 17 |
04013-03 |
HHCS, 5/16-18 X .75 FLG Price: Call Us |
| 18 |
486479 |
Linkage Assy., Pump Control (incl. #19 - #22) Price: Call Us |
| 19 |
482585 |
Rod End, Male 3/8"-24 LH Thread Price: Call Us |
| 20 |
04026-26 |
Nut, 3/8-24 UNF LH Jam Price: Call Us |
| 21 |
482586 |
Rod End, Male - RH, 3/8-24 Thread Price: Call Us |
| 22 |
04020-25 |
Nut, 3/8-24 UNF R.H. Thread Price: Call Us |
| 23 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI) Price: Call Us |
| 24 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 25 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 26 |
04001-152 |
Bolt, Hex Head 3/8-16 x 4-1/4" Price: Call Us |
| 27 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 28 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 29 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 30 |
43607 |
Spacer, Controls Price: Call Us |
| 31 |
48224 |
BEARINGS, BALL, NEUTRAL RETURN Price: Call Us |
| 32 |
452718 |
Control Lever Weldment, RH Price: Call Us |
| 33 |
43600 |
Spacer, Bearing Price: Call Us |
| 34 |
431024 |
Spacer, Controls Price: Call Us |
| 35 |
04001-17 |
Bolt, Hex Head 5/16-18 x 2-1/2" (x3) (35BV & 37BV-EFI) Price: Call Us |
| 36 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 37 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 38 |
04001-45 |
Capscrew, Hex Head 3/8-16 x 2.0" Price: Call Us |
| 39 |
43602 |
Spacer, Pump Dampener Price: Call Us |
| 40 |
484151 |
Gas Damper Price: Call Us |
| 41 |
04003-05 |
Bolt, RDHD Carr. 3/8-16 x 1-1/2 (52" & 61") Price: Call Us |
| 42 |
485970 |
Return Spring, Control Arm Price: Call Us |
| 452717 |
Control |
Lever Weldment, LH Price: Call Us 452717 |
| 463222 |
Control |
Plate w/Decals RH Price: Call Us 463222 |
