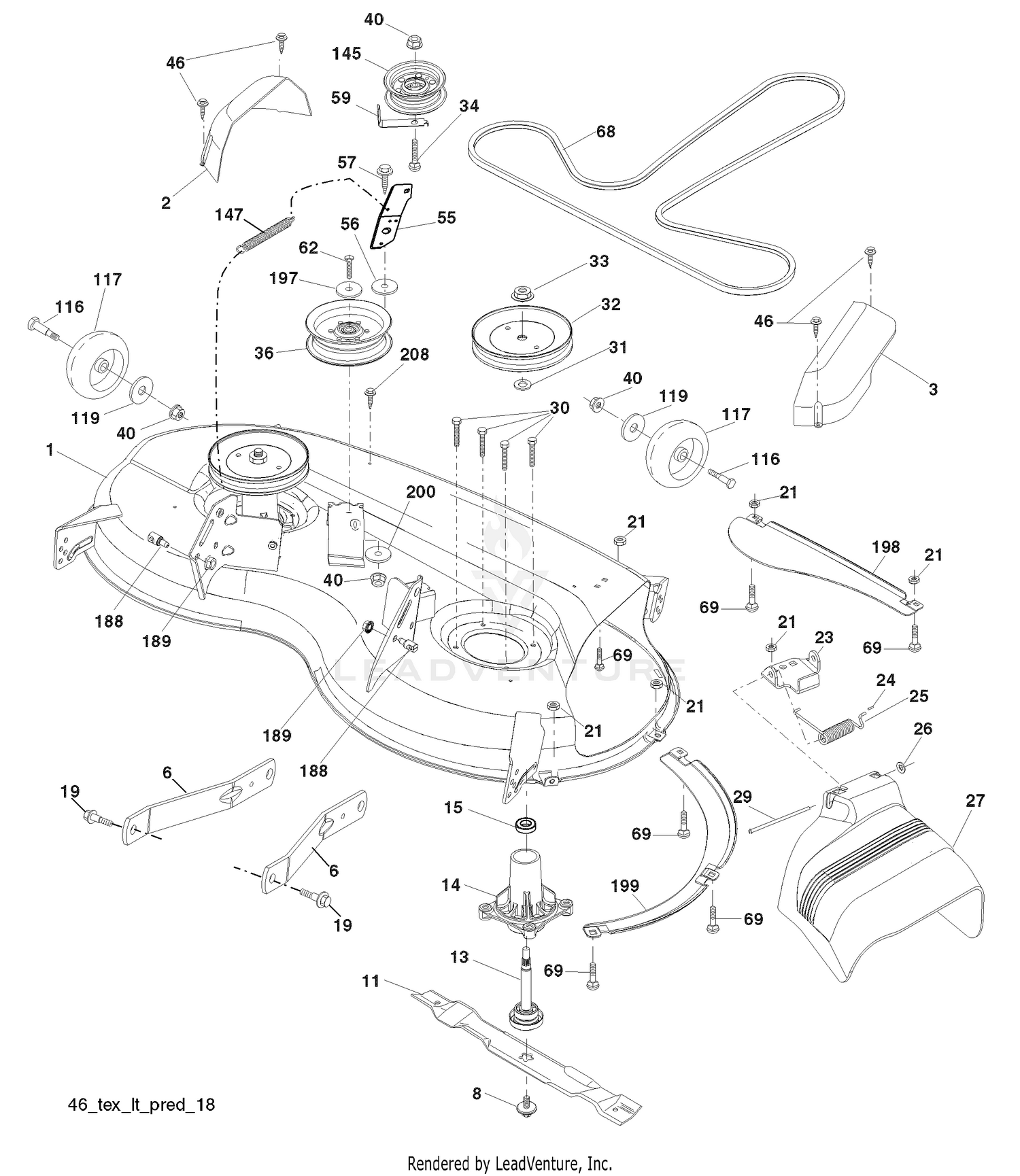

| Ref | Part Number | Description |
|---|
| 1 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 1 |
547745901 |
KIT.SVC.DECK.WELD.46.TEX_428 This part replaces 532411460. Price: $449.99 |
| 2 |
532405506 |
COVER.MANDREL.RH.46" Price: $19.99 |
| 2 |
69-8890 |
CAP-SPINDLE Price: $13.32 |
| 3 |
32151-10 |
RING-RETAINING Price: $0.81 |
| 3 |
532405507 |
COVER.MANDREL.LH.46" Price: $19.99 |
| 4 |
256-304 |
WASHER-THRUST Price: $3.94 |
| 5 |
69-6470 |
BUSHING-CASTOR Price: $5.82 |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 6 |
82-9850-03 |
AXLE-REAR This part replaces 82-9850. Price: $1,614.33 |
| 7 |
98-4434 |
LH WHEEL SPINDLE ASM This part replaces 69-7370. Price: $631.93 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 8 |
69-2990 |
STUD-WHEEL Price: $4.85 |
| 9 |
117-8969 |
HUB ASM This part replaces 69-2960. Price: $336.24 |
| 10 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 11 |
254-92 |
CONE-BEARING, OUTER Price: $15.84 |
| 12 |
58-5570 |
DISCONTINUED Price: Call Us |
| 12 |
69-9880 |
TIRE (23X10.5-12) 6-PLY Price: $189.93 |
| 13 |
23-7270 |
NUT-LUG Price: $10.37 |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 14 |
217-116 |
WHEEL Price: $258.19 |
| 14 |
58-5590 |
RIM Price: $307.81 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
69-2970 |
CAP-HUB Price: $20.74 |
| 17 |
32136-5 |
NUT-HEX, SLOTTED Price: $2.71 |
| 18 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 19 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 20 |
254-107 |
CUP-BEARING, TAPERED Price: $9.93 |
| 21 |
254-106 |
CONE-BEARING, TAPERED Price: $19.51 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
69-2980 |
SEAL Price: $33.94 |
| 23 |
110-6141-03 |
RH TIE ROD END ASM This part replaces 2116-4. Price: $148.18 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 24 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
2412-7 |
CLAMP ASM Price: $23.32 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
110-9719-03 |
TIE ROD ASM This part replaces 82-9260. Price: $380.21 |
| 27 |
532405357 |
SHIELD.DEFLECTOR.MOWER.46"BLAC Price: $49.99 |
| 29 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
32136-2 |
NUT-SHH Price: $3.55 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
32136-13 |
NUT-SHH Price: $2.85 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 32 |
532195945 |
PULLEY.MANDREL.5.438.P This part replaces 532197473. Price: $12.99 |
| 33 |
48-6640 |
BEARING Price: $10.04 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
48-6660 |
WASHER Price: $5.22 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 35 |
82-9840 |
DISCONTINUED Price: Call Us |
| 36 |
115-8014 |
CYLINDER-HYDRAULIC This part replaces 77-4800. Price: $1,015.97 |
| 36 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 37 |
82-9841 |
DISCONTINUED Price: Call Us |
| 38 |
237-22 |
O-RING Price: $2.43 |
| 39 |
340-97 |
FITTING-ELBOW, 90 DEG Price: $36.21 |
| 40 |
237-78 |
O-RING Price: $3.85 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 41 |
60-3670 |
PIN Price: $12.56 |
| 42 |
82-9210 |
SHAFT-PIVOT Price: $187.73 |
| 44 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 45 |
106-6895-03 |
BALL JOINT ASM This part replaces 69-9810. Price: $258.08 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 55 |
531169401 |
SERVICE KIT IDLER.ARM This part replaces 532197249. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 62 |
596564404 |
Bolts This part replaces 874520636. Price: $2.99 |
| 68 |
584453101 |
V-BELT.DRIVE.MWR.MECHANICL.46" This part replaces 532405143. Price: $49.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 119 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 147 |
532197251 |
SPRING.MOWER.DRIVE.ELECTRIC Price: $9.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 197 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 198 |
531170601 |
SERVICE KIT BAFFLE CENT This part replaces 532403149. Price: $9.99 |
| 199 |
531170701 |
SERVICE KIT BAFFLE FRONT This part replaces 532403150. Price: $11.99 |
| 200 |
819413524 |
Washer 13/32 x 2 x 10 Ga. Price: Call Us |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
