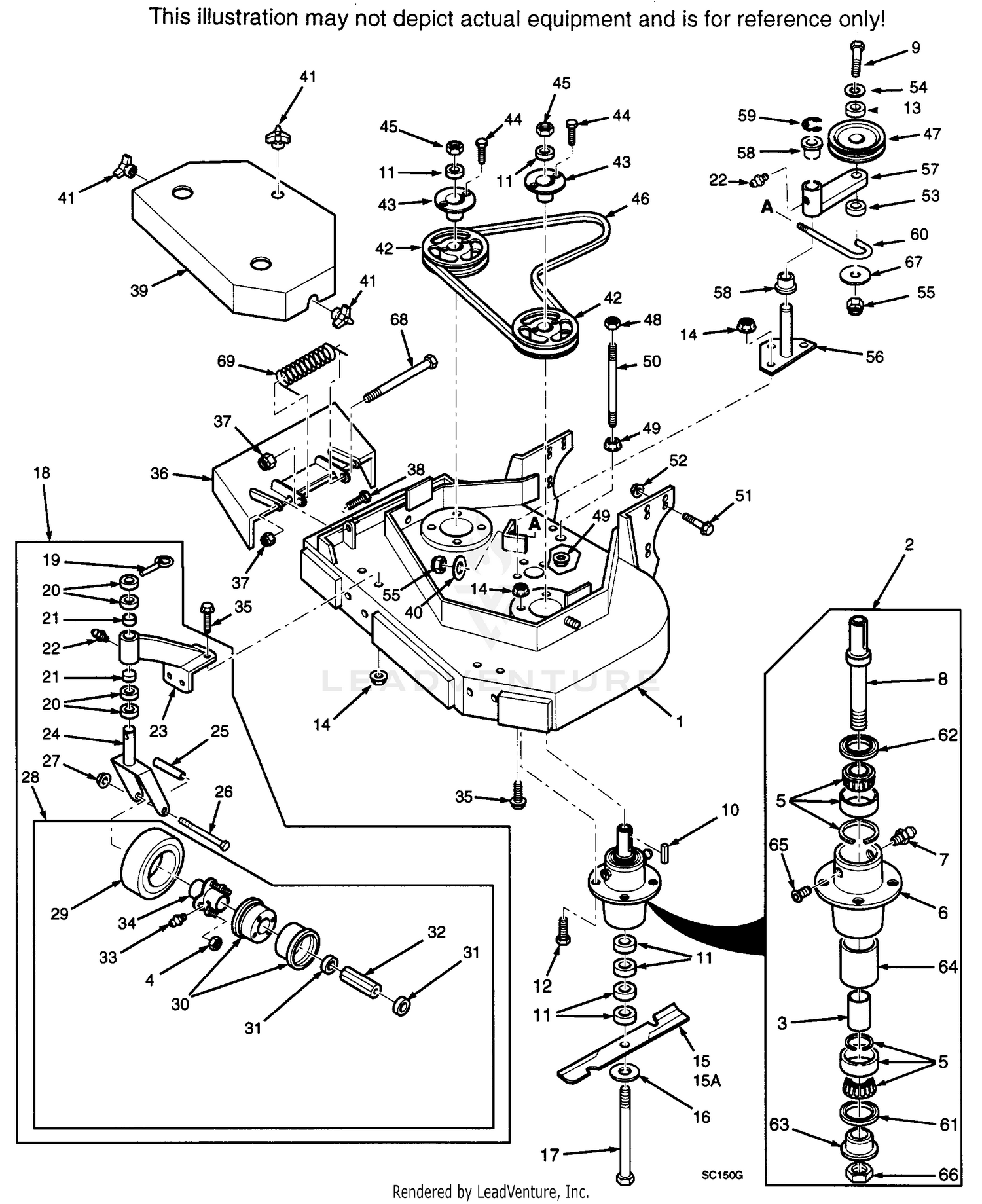

| Ref | Part Number | Description |
|---|
| 1 |
461553 |
CUTTER DK W/ DECALS, SWM-36 This part replaces 46740. Price: Call Us |
| 1 |
630983 |
Shaft Lever Assy. Price: Call Us |
| 2 |
461663 |
Spindle Assembly This part replaces 46631. Price: Call Us |
| 2 |
630731 |
Spring, Return Price: Call Us |
| 3 |
43296 |
SPACER, INSIDE Price: Call Us |
| 3 |
631036 |
Shutter-Throttle Price: Call Us |
| 4 |
481771 |
Tapered Hex Nut, 5/16-18 This part replaces 48307-08. Price: Call Us |
| 4 |
650506 |
Screw-Shutter Price: Call Us |
| 5 |
481022 |
TAPERED BEARING(TWO) Price: Call Us |
| 5 |
630766 |
Spring-Tension Price: Call Us |
| 5A |
630738 |
Spring Price: Call Us |
| 6 |
43644 |
Spindle Housing This part replaces 43294. Price: Call Us |
| 6 |
650417 |
Screw-Throttle Crack Screw / Idle Speed Price: Call Us |
| 7 |
31859 |
Shaft Lever Assy., Choke Price: Call Us |
| 7 |
48114-04 |
GREASE FITTING STR. 5/16 Price: Call Us |
| 8 |
43589 |
Shaft, Spindle This part replaces 43298. Price: Call Us |
| 8 |
630735 |
Spring-Positioning, Choke Price: Call Us |
| 9 |
31837 |
DISCONTINUED Price: Call Us |
| 10 |
04063-08 |
KEY, 1/4 X 2" Price: Call Us |
| 10 |
630748 |
Plug-Welch, Idle Mixture Well Price: Call Us |
| 11 |
43592 |
Spacer, Cutter Blade This part replaces 43278. Price: Call Us |
| 11 |
631027 |
Plug-Welch, Atmospheric Vent Price: Call Us |
| 12 |
04001-10 |
HEX HEAD BOLT, 5/16-18 X 1-1/4" Price: Call Us |
| 13 |
43077 |
SPACER Price: Call Us |
| 13 |
631022 |
Clip-Spring Price: Call Us |
| 14 |
04019-03 |
NUT, 5/16-18 SERRATED FLANGE Price: Call Us |
| 14 |
631023 |
Float,Carburetor Price: Call Us |
| 15 |
481707 |
Cutter Blade, 18" This part replaces 48108. Price: Call Us |
| 15A |
481711 |
Cutter Blade, 18 Hi-Lift This part replaces 48185. Price: Call Us |
| 16 |
04040-10 |
FLAT WASHER, 5/8" W Price: Call Us |
| 16 |
631025 |
Bowl Drain Assy., Float (Incl. No.17) Price: Call Us |
| 17 |
04001-41 |
HEX HD. BOLT, 5/8-11 X 9-1/2" Price: Call Us |
| 17 |
27136 |
Plunger Assy., Drain (Incl. No. 18) Price: Call Us |
| 18 |
27554 |
Gasket-Plunger, Drain Price: Call Us |
| 18 |
46079 |
CASTER ASSEMBLY(INCLUDES 19-28) Price: Call Us |
| 19 |
04066-01 |
QUICK PIN Price: Call Us |
| 19 |
27137 |
Spring, Drain Plunger Price: Call Us |
| 20 |
27138 |
Retainer, Plunger Spring Price: Call Us |
| 20 |
43037-01 |
SPACER, CASTER YOKE, 1/2" THICK Price: Call Us |
| 21 |
48100-01 |
BRONZE BEARING Price: Call Us |
| 22 |
482245 |
Spring, Discharge Chute This part replaces 481050. Price: Call Us |
| 23 |
46082 |
SUPPORT ASSY.(INCL. 21-23) Price: Call Us |
| 23 |
630740 |
ORing Price: Call Us |
| 24 |
45006 |
CASTER YOKE Price: Call Us |
| 25 |
43022 |
SLEEVE, CASTER WHEEL BEARING Price: Call Us |
| 26 |
04001-37 |
HEX HD. BOLT, 1/2-13 X 5-1/2" Price: Call Us |
| 26 |
631038 |
Fitting Fuel Inlet Price: Call Us |
| 27 |
04021-07 |
HEX LOCKNUT, 1/2-13 Price: Call Us |
| 27 |
631039 |
Pin Price: Call Us |
| 28 |
48307 |
WHEEL ASSY.(INCL. 4,29-34) Price: Call Us |
| 28 |
630747 |
Plug, Cup Price: Call Us |
| 29 |
481774 |
Tire Only, Caster Wheel This part replaces 48307-02. Price: Call Us |
| 29 |
631081 |
BalI, Steel Price: Call Us |
| 30 |
481772 |
Rim Pair, Caster Wheel This part replaces 48307-04. Price: Call Us |
| 31 |
481770 |
Retainer This part replaces 48006-07. Price: Call Us |
| 32 |
481769 |
Roller Bearing .625 x 3.25" This part replaces 48006-06. Price: Call Us |
| 33 |
48114-03 |
GREASE FITTING 45 DEG., 1/4-28 Price: Call Us |
| 34 |
481768 |
Hub Assy. W/Bolts, Caster Wheel This part replaces 48006-05. Price: Call Us |
| 35 |
04017-16 |
CAPSCREW, 5/16-18 X 3/4" SERR. FLANGE HEX Price: Call Us |
| 36 |
461291 |
Discharge Chute This part replaces 46725. Price: Call Us |
| 39 |
46797 |
Belt Cover Assy This part replaces 46741. Price: Call Us |
| 40 |
04041-07 |
FLAT WASHER, 3/8"(.391 X .938 X .105) Price: Call Us |
| 41 |
04029-03 |
WING NUT, 3/8-16 Price: Call Us |
| 42 |
482744 |
Pulley, 5.75 OD Taper Bore This part replaces 48924. Price: Call Us |
| 43 |
48926 |
TAPERED HUB, 1.125 BORE Price: Call Us |
| 46 |
48204 |
BELT, BLADE DRIVE Price: Call Us |
| 47 |
483215 |
Pulley, 5" Dia. Idler This part replaces 48269. Price: Call Us |
| 49 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE Price: Call Us |
| 50 |
04004-02 |
SUPPORT, BELT COVER Price: Call Us |
| 51 |
04017-42 |
CAPSCREW, 7/16-14 X 1" SERR. FLANGE Price: Call Us |
| 52 |
04019-05 |
HEX NUT, 7/16-14 SERRATED FLANGE Price: Call Us |
| 53 |
43277 |
SPACER, J-HOOK Price: Call Us |
| 54 |
04041-07 |
FLAT WASHER Price: Call Us |
| 55 |
04021-09 |
NUT, 3/8-16 ELASTIC STOP Price: Call Us |
| 56 |
45423 |
IDLER PIVOT Price: Call Us |
| 57 |
46748 |
IDLER ARM ASSY.(INCL. 22 & 58) Price: Call Us |
| 58 |
48100-02 |
BUSHING, 1-1/8 X 1.0 FLANGED Price: Call Us |
| 59 |
04050-05 |
RETAINING RING, 1-1/8" EXT. "E" Price: Call Us |
| 60 |
44078 |
J-HOOK Price: Call Us |
| 61 |
481025 |
SEAL, CUTTER SPINDLE Price: Call Us |
| 62 |
481024 |
SEAL, CUTTER SPINDLE Price: Call Us |
| 63 |
43297 |
SPINDLE BUSHING Price: Call Us |
| 64 |
43312 |
SPACER, OUTSIDE Price: Call Us |
| 65 |
48677 |
RELIEF FITTING, CUTTER SPINDLE Price: Call Us |
| 66 |
481035 |
NUT, Price: Call Us |
| 481773 |
Inner |
Tube Only, Caster Wheel This part replaces 48006-03. Price: Call Us 481773 |
