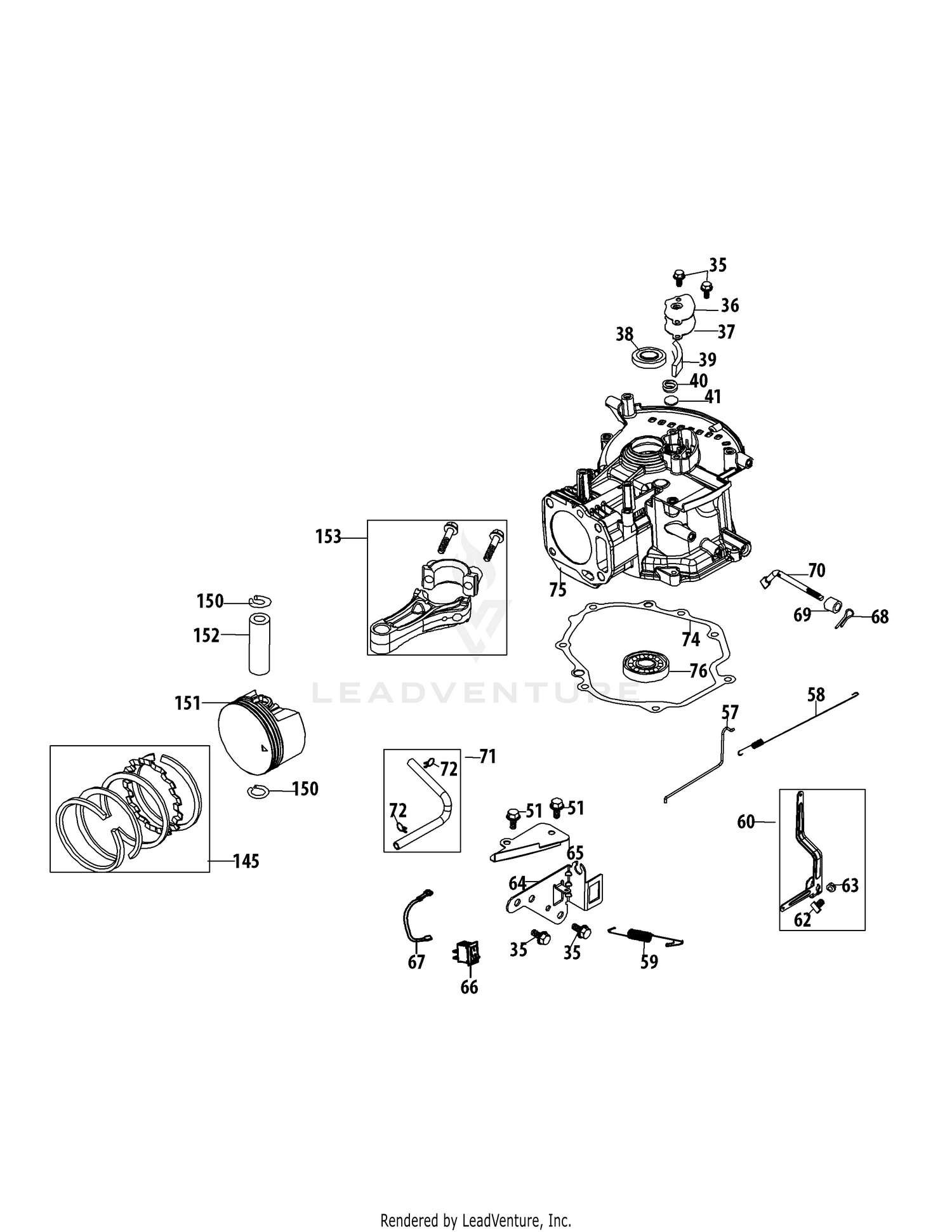

| Ref | Part Number | Description |
|---|
| 35 |
710-04916 |
BOLT M6-1 x 14 GR8.8 Price: $3.86 |
| 36 |
951-14404 |
BREATHER COVER PLATE Price: $12.64 |
| 37 |
951-14405 |
BREATHER GASKET Price: $8.96 |
| 38 |
951-11596A |
UPPER CRANKSHAFT SEAL This part replaces 951-11596. Price: $5.44 |
| 39 |
951-11730 |
BREATHER SCREEN Price: $4.75 |
| 40 |
732-04718 |
BREATHER VALVE SPRING Price: $3.78 |
| 41 |
951-11614 |
BREATHER VALVE Price: $3.53 |
| 51 |
710-04915 |
BOLT M6-1 x 12 GR8.8 Price: $3.82 |
| 57 |
951-14410 |
THROTTLE LINKAGE Price: $7.21 |
| 58 |
951-14409 |
THROTTLE LINKAGE SPRING Price: $7.61 |
| 59 |
951-14411 |
GOVERNOR SPRING Price: $8.34 |
| 60 |
951-14412 |
GOVERNOR ARM ASSEMBLY Price: $7.54 |
| 62 |
710-04908 |
BOLT M6-1 x 21 Price: $5.65 |
| 63 |
712-05015 |
HEX NUT Price: $5.78 |
| 64 |
951-14413 |
COMPONENT BRACKET Price: $12.85 |
| 65 |
951-14605 |
AIR VANE COVER PLATE Price: $5.43 |
| 66 |
925-06174 |
IGNITION SWITCH This part replaces 725-06174. Price: $10.67 |
| 67 |
925-06175 |
IGNITION SWITCH This part replaces 725-06175. Price: $5.11 |
| 68 |
714-04078 |
COTTER PIN Price: $3.66 |
| 69 |
951-11902A |
OIL SEAL This part replaces 951-11574. Price: $3.36 |
| 70 |
951-14416 |
GOVERNOR ARM SHAFT Price: $11.24 |
| 71 |
951-11520 |
BREATHER HOSE Price: $5.48 |
| 72 |
726-04101 |
BREATHER HOSE CLAMP Not Available Price: |
| 74 |
951-14415 |
CRANKCASE COVER GASKET Price: $12.77 |
| 75 |
951-14635 |
CRANKCASE This part replaces 751-14635. Price: $168.31 |
| 76 |
951-11369 |
BEARING Price: $30.42 |
| 145 |
951-14433A |
PISTON RING SET This part replaces 951-14433. Price: $34.45 |
| 150 |
951-11603 |
SNAP RING-PISTON PIN Price: $3.53 |
| 151 |
951-14434A |
PISTION This part replaces 951-14434. Price: $56.68 |
| 152 |
951-14435 |
PISTON PIN Price: $11.17 |
